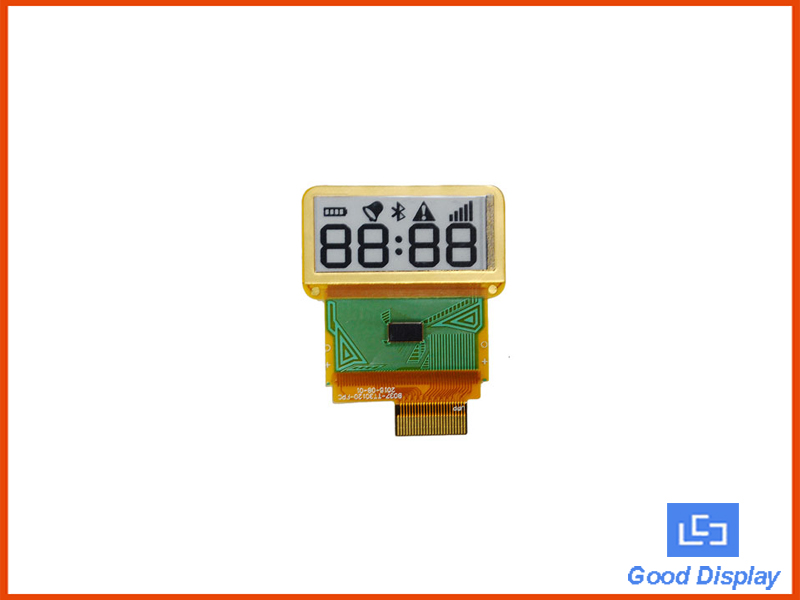

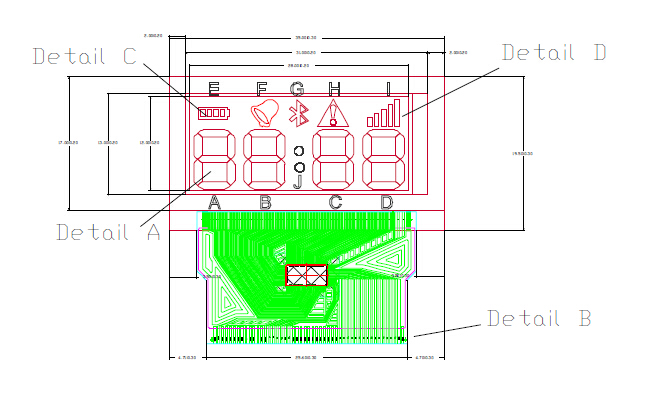

This is a segmental E-paper display module,it is able to display segmental content under preset program.

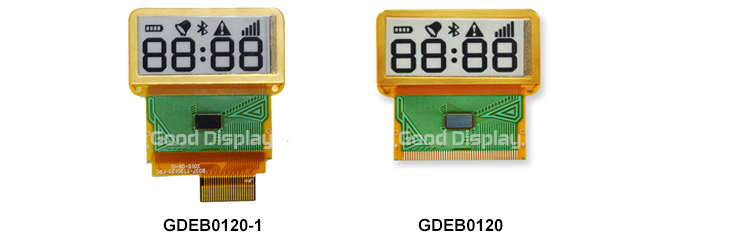

Comparing with old version GDEB0120 ,GDEB0120-1 now is set 1 FPC golden finger PINs which can help to connect with your devices more easily .
|
Part Number
|
GDEB0120
|
GDEB0120-1 |
|
Type
|
Segment, 4 digits
|
Segment, 4 digits |
|
Interface
|
SPI
|
FPC(Golden Finger) |
|
Outline Size(mm)
|
35*34*0.465
|
35*34*0.465 |
|
Active Size(mm)
|
28*12
|
28*12 |
|
Operating Temp.
|
0~50C
|
0~50C |
|
Storage Temp.
|
—20~70C
|
-20-70 |
|
Controller
|
TT30120
|
TT30120
|
|
Diagonal Size
|
1.2''
|
1.2“ |
|
Contrast Ratio
|
typical 8:1
|
typical 8:1 |
|
View Angle
|
>179 degree
|
>179 degree |
|
Color
|
Black,White
|
Black,White |
|
Flexible
|
Yes
|
Yes |
|
File Type |
Description (Downloadable)
|
Version |
Language
|
Update Date
|
Size
|
 |
GDEB0120-1Spec. |
V1.0
|
English
|
2017-09-22
|
2.65MB
|
The Principle and Advantage of E-Paper
How to custom Segmented E-Paper Display?
Segmented e-ink display -- FAQ
|
Size
|
Part Number
|
Color
|
Resolution
|
Outline Size (mm)
|
Partial Refresh
|
Interface
|
|
0.9"
|
GDEB0090A1-1
|
Black, White
|
Segment,6 digits
|
29*12.42*0.45
|
×
|
FPC(Golden Finger)
|
|
1.2"
|
GDEB0120-1
|
Black, White
|
Segment, 4 digits
|
35*34*0.456
|
×
|
FPC(Golden Finger)
|
|
1.43"
|
GDEP014TT1
|
Black, White
|
296*128
|
18.3*42.7*0.607
|
×
|
DDK FF28-12A-R11A-3H
|
|
1.54"
|
GDEP015OC1
|
Black, White
|
200*200
|
31.8*37.32*1.05
|
√
|
SPI
|
|
GDEH0154D27
|
Black, White
|
200*200
|
31.8*.36.32*1.05
|
√
|
SPI
|
|
GDEW0154Z04
|
Black, White and Red
|
200*200
|
31.8*37.3*1.05
|
×
|
SPI
|
|
GDEW0154T8
|
Black, White
|
152*152
|
31.80*37.32*0.98
|
×
|
SPI
|
|
2.13''
|
GDEH0213B1
|
Black, White
|
250*122
|
29.2*59.2*1.05
|
√
|
SPI
|
|
GDEH0213B1FL
|
Black, White
|
250*122
|
29.2*59.2
|
√
|
SPI
|
|
GDEW0213Z16
|
Black, White and Red
|
212*104
|
59.2*29.2*0.98
|
×
|
SPI
|
|
2.7"
|
GDEW027W3
|
Black, White
|
264*176
|
70.42*45.8*0.98
|
×
|
SPI
|
|
GDEW027C44
|
Black, White and Red
|
264*176
|
70.42*45.8*0.98
|
×
|
SPI
|
|
2.9"
|
GDEH029A1
|
Black, White
|
296*128
|
36.7*79.0*1.05
|
√
|
SPI
|
|
GDEW029Z10
|
Black, White and Red
|
296*128
|
79.0*36.7*1.18
|
×
|
SPI
|
|
GDEW029T5
|
Black, White
|
296*128
|
79.0*36.7*1.18
|
×
|
SPI
|
|
4.2"
|
GDEW042T2
|
Black, White
|
400*300
|
91.0*77.0*1.18
|
×
|
SPI
|
|
GDEW042Z15
|
Black, White and Red
|
400*300
|
91.0*77.0*1.18
|
×
|
SPI
|
|
4.3"
|
GDE043A6
|
Black, White
|
800*600
|
126.5*74.6*1.17
|
×
|
parallel
|
|
6”
|
GDE060B3
|
Black, White
|
800*600
|
101.8*138.4*1.18
|
×
|
parallel
|
|
GDE060BA
|
Black, White
|
800*600
|
101.8*138.4*1.18
|
√
|
parallel
|
|
7.5"
|
GEDW075T8
|
Black, White
|
640*384
|
170.2*111.2*1.18
|
×
|
SPI
|
|
GDEW075Z09
|
Black, White and Red
|
640*384
|
170.20*111.20*1.18
|
×
|
SPI
|
|
8.0"
|
GDEW080T5
|
Black, White
|
1024*768
|
134.11*178.56*1.18
|
×
|
parallel
|
|
9.7''
|
GDEP097TC2
|
Black, White
|
1200*825
|
218.8*156.425*1.15
|
×
|
parallel
|
