  • Product Name: 8 inch large e-paper display parallel e-ink screen panel 768X1024 GDEW080T5
  • Code: 07503
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight:
  • Views : 5218

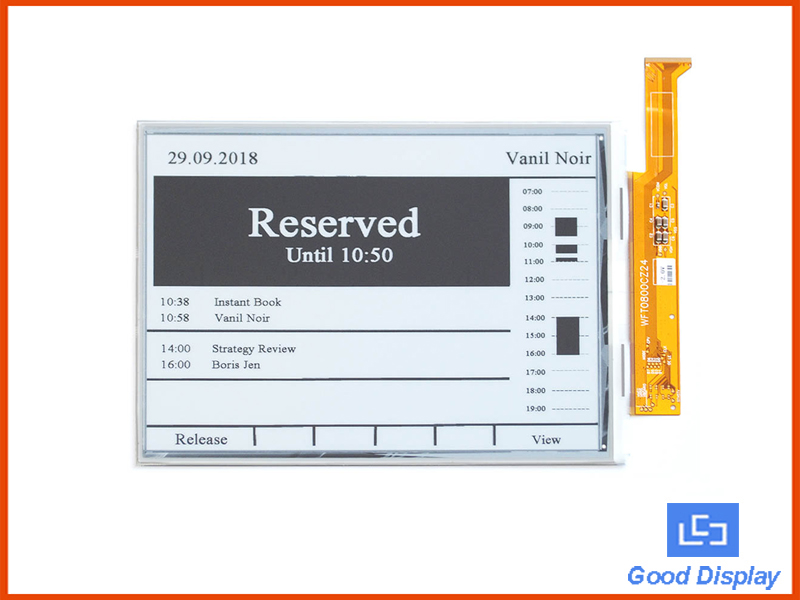

This is an E ink E paper display panel, 8.0 inch, 1024*768 resolution, 34 pins FPC connection, optional FPC connector, communicating via Parallel interface, with integrated circuits including source and gate drivers,supports black, white.

In view of so many advantages: ultra low power consumption, wide viewing angle, readable under sunlight, GDEW080T5 is a very good choice for E-book reader, doorplate, industrial display and other applicable places.








·  Support partial refresh
·  Parallel interface
· 1024x768 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )














Part Number

GDEW080T5

Type

Dot Matrix

Resolution

1024*768

Outline Size(mm)

134.11*178.56*1.18

Active Size(mm)

122.11*162.82

Pixel Pitch(mm)

0.159*0.159

Operating Temp.

0~50C

Storage Temp.

—25~70C

Connector

34 Pin

Interface

Parallel

Color

Black,White

Power consumption of the refresh(mW) 600
Standby power consumption Pc(mW) 0.4
Time of refresh(s) 1
Time of partial refresh(s) 1
Purchase Online

buyepaper






Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW080T5 Specifications

1.0

English

2016-11-06

1.16MB

Connector Spec. 1.0 English 2017-08-11 483.13B
Picture Production and Bitmap Convert 1.0 English 2020-02-04 459.99KB







Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                   1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                   1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB
Sample Code 1.0 English 2019-10-22 2.63MB














File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25







Q:What are the corresponding DEMO boards?
A:Both the TCON board and the STM32-L board can support this e-paper.
