Your present location:Home >> 2-Color EPD >> 6 inch e-paper display GDE060BA

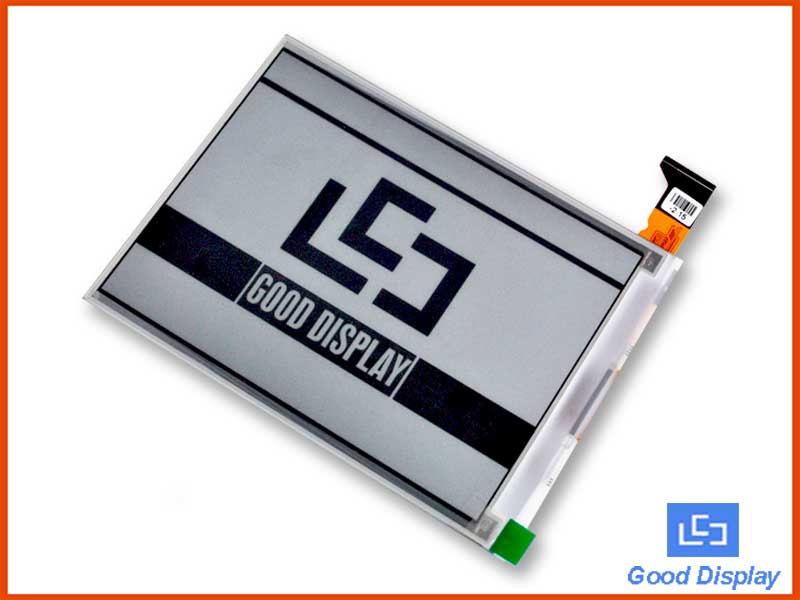

  • Product Name: 6 inch e-paper display GDE060BA
  • Code: 06002
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight:
  • Views : 3106



· Parallel interface
· 600x800 resoluiton
· 16 Grayscale
· Support partial refresh
· Come with helpful development resources and manual (STM32 platform )







Part Number

GDE060BA

Refresh Time

260ms

Resolution

800 X 600

Outline Size(mm)

101.8x138.4x1.18

Active Size(mm)

122.4 X 90.6

Pixel Pitch(mm)

0.153(H) X 0.151(V)

Operating Temp.

0~50℃

Reflectance

40%

Contrast Ratio

15:1

Gray

16

Storage Temperature -20~70℃

Color

 Black, White, Greyscale

Power consumption of the refresh(mW) 600
Standby power consumption Pc(mW) 0.4
Time of refresh(s) 1
Time of partial refresh(s) 1

Purchase Online

buyepaper / AliExpress











Part Number

Full refresh Time

Resolution

Feature

GDE060B3

1S

800x600

         Parallel

GDE060BA

1S

800x600

Parallel

GDE060F3

1S

1024x758

Parallel/High Resolution

GDE060BAFL

1S

800x600

Parallel/Frontlight

GDE060BA-T

1S

800x600

Parallel/Touch screen

GDE060BAFL-T

1S

800x600

Parallel/Touch/Frontlight









Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDE060BA Specifications

1.0

English

2014-05-15

540.69KB

IC Driver 1.0 English 2017-08-28 1001.95KB

Connector Spec. 1.0 English 2017-08-11 483.13B
Picture Production and Bitmap Convert 1.0 English 2020-02-04 490.45KB





If you want to buy the set: e-paper and matched demo, please click here: With Drive Board







Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DESTM32-T Specification

                   1.1

               English

       2017-11-24

      703.97KB

 Schematic DESTM32-Tcon-11

                   1.1                English        2017-11-24         830.87KB

 Schematic DESTM32-L1-11

                   1.1                English        2017-11-24         779.58KB
TPS65185                1.0             English      2019-02-18        2.37MB
AVT6203A                1.0             English      2019-02-18        1.79MB
Sample Code 1.0 English 2019-08-27 9.16MB











Q:What is the speed of partial refresh?
A:Partial refresh is 300ms, full refresh is 960ms.
