Your present location:Home >> BW Eink Display >> 2.13 inch e-paper display ultra low temperature partial refresh E ink panel SPI interface GDEH0213D30LT

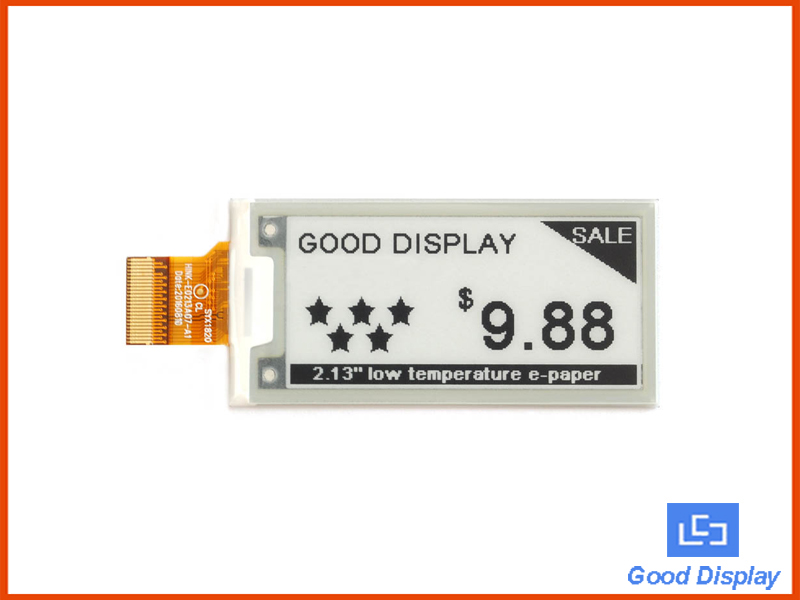

  • Product Name: 2.13 inch e-paper display ultra low temperature partial refresh E ink panel SPI interface GDEH0213D30LT
  • Code: 02137
  • Quantity in stock: 10
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 311


This is ultra low temperature (-20~50℃) 2.13 inch e-paper display with 212*104 resolution. It has 24 pins FPC connection, optional FPC connector, also communicated via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.
In view of so many advantages: ultra low temperature, near 180 degree view angle, readable under sunlight, GDEH0213D30LT is a very good choice for applications like:

Shelf label
Smart tags
Wearable devices
Smart home application
Industrial instrument
Smart cards
And other related products that in cold area.






· Ultra wide operating temperature range: -20℃ to 50℃
· Its effects is better than GDEW0213V7LT, but refresh time is longer than GDEW0213V7LT.
· SPI interface, for connecting with controller boards
· Come with helpful development demo kit with resources and manual (STM32 platform )





Part Number

GDEH0213D30LT

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

29.2*59.2*1.05

Active Size(mm)

22.92*47.76

Pixel Pitch(mm)

0.225*0.220

Operating Temp.

'-20~50℃

Storage Temp.

'-25~70℃

Connector

24 Pin FPC

Max Grayscale

2

Color

Black,White

Buy Samples

(price without shipping fee)



  (price with shipping fee)









Size

Part Number

Color

Refresh Time

Resolution

Feature

2.13''

GDEH0213B1

Black, White

4.24S

250*122

Partial refresh

GDEW0213I5F

Black, White

--

212*104

Flexible/Partial refresh

GDEH0213D30LT

Black, White

--

212*104

Ultra low temperature

GDEW0213V7LT

Black, White

--

212*104

Ultra low temperature

GDEW0213Z16

Black,White,Red

10.53S

212*104

Three colors

GDEW0213C38

Black,White,Yellow

--

212*104

Three colors







Datasheet-E Paper Display,Controller IC,Connector,Source Code



File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEH0213D30LT Specifications

1.1

English

2018-10-31

2.2MB

IC Driver 1.0 English 2018-07-31 825.53KB
Connector Spec. 1.0 English 2018-09-05 1.77MB

Sample Code 1.0 English 2018-07-31 2.61MB

Demo Kit


File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB

Arduino UNO for EPD

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB









File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2018-11-13
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Warranty English 2016-10-25









Q:Can this e-paper support partial refresh?
A:Yes.
