Your present location:Home >> BW Eink Display >> 2.13 inch e-paper display module partial refresh e-ink display screen GDEH0213B72
  • Product Name: 2.13 inch e-paper display module partial refresh e-ink display screen GDEH0213B72
  • Code: 02139
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 33

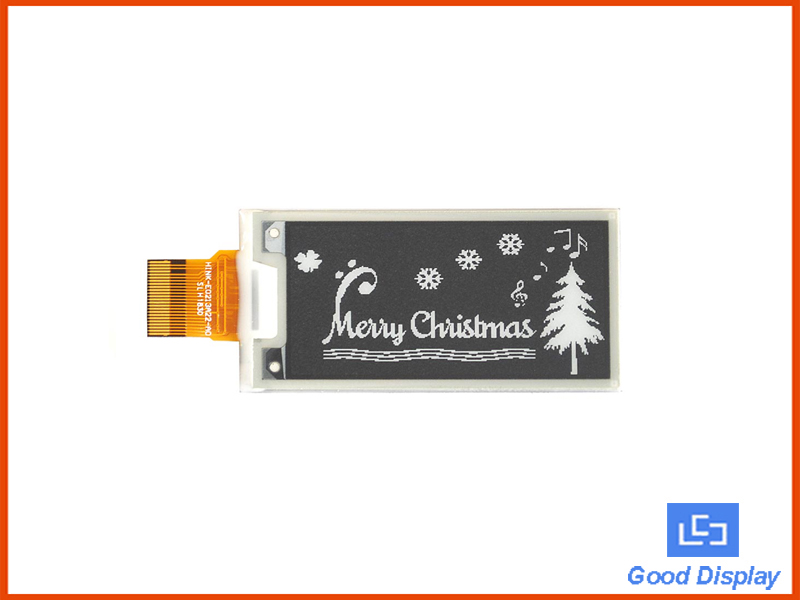

This is an E ink E paper display panel, 2.13 inch, 250*122 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH0213B72 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.





· Keep displaying the last content when power down.
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· It supports partial refresh.
· Come with helpful development resources and manual (STM32 platform )





Part Number

GDEH0213B72

Type

Dot Matrix

Resolution

250*122

Outline Size(mm)

29.2*59.2*1.05

Active Size(mm)

23.7*48.55

Pixel Pitch(mm)

0.1942*0.1943

Operating Temp.

0~50C

Storage Temp.

—25~60C

Connector

24 Pin

Max Grayscale

2

Color

Black,White

Buy Samples

(price without shipping fee)



  (price with shipping fee)







Size

Part Number

Color

Refresh Time

Resolution

Feature

2.13''

GDEH0213B1

Black, White

4.24S

250*122

Partial refresh

GDEW0213I5F

Black, White

--

212*104

Flexible/Partial refresh

GDEH0213D30LT

Black, White

--

212*104

Ultra low temperature

GDEW0213V7LT

Black, White

--

212*104

Ultra low temperature

GDEW0213Z16

Black,White,Red

10.53S

212*104

Three colors

GDEW0213C38

Black,White,Yellow

--

212*104

Three colors





Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

 GDEH0213B72 Spec.

1.0

English

2018-11-29

1.68MB

 Sample Code 1.0 English 2018-11-29 1.73MB


Demo Kit

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB

Arduino UNO for EPD

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
GDEH0213B72_Arduino_OTP                   1.0               English       2018-11-28         6.83KB




File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13

Warranty

English

2016-10-25











If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
