Your present location:Home >> 2-Color EPD >> 1.54 inch e-paper screen 152x152 resolution partial refresh 4 grayscale GDEW0154T8

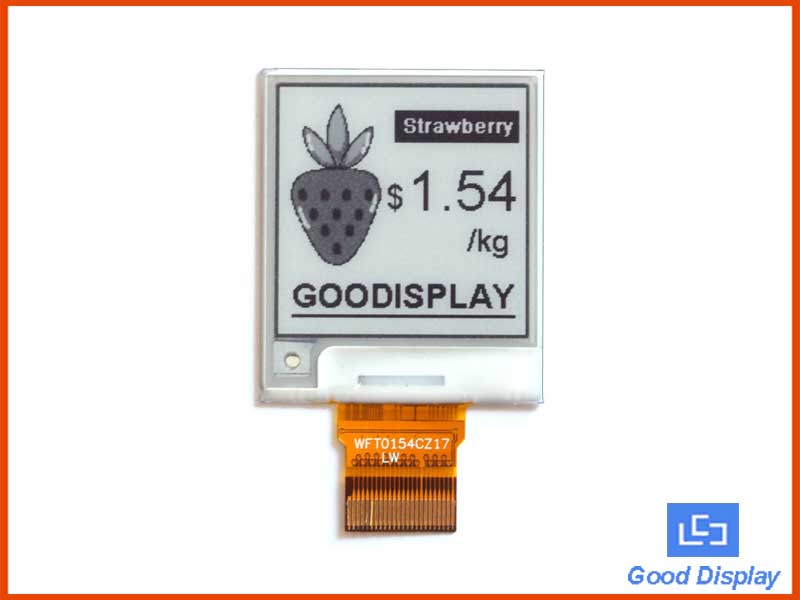

  • Product Name: 1.54 inch e-paper screen 152x152 resolution partial refresh 4 grayscale GDEW0154T8
  • Code: 01503
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 1.00g
  • Views : 4158


This E ink electronic paper display is a TFT active matrix electrophoretic display, with interface and a reference system design.
Supports partial refreshfast update and no flicker update.
The 1.54” active area contains 152×152 pixels, 4 Grayscaleand has 1-bit full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC. SRAM, LUT ,VCOM, and border are supplied with each panel.




152×152 resolution
Partial refreshno flicker update, fast update
4 Grayscale
Front light, Touch screen(Optional)
The I2C signal master interface to read built-in temperature sensor.
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266





Part Number

GDEW0154T8

Type

Dot Matrix

Resolution

152*152

Outline Size(mm)

31.8*37.32*0.98

Active Size(mm)

27.51*27.51

Pixel Pitch(mm)

0.181*0.181

Operating Temp.

0°C~50°C

Storage Temp.

-25°C~70°C

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

4

Color

Black,White

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Purchase Online

buyepaper  / AliExpress






Part Number

Color

Full refresh Time

Resolution

Feature

T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

GDEW0154Z04

BWR

8S

200x200

Three colors

GDEW0154Z17

BWR

16S

152x152

Three colors

GDEW0154C39

BWY

26S

152x152

Three colors

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

GDEW0154M09

BW 0.82S 200x200 Fast speed,High Resolution







Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0154T8 Specifications

3.3

English

2018-11-14

1.68MB

IC Driver 1.0 English 2017-08-11 783.94KB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-01-21 460.39KB
 Picture Production and Bitmap Convert - 4 Grayscale 1.0 English 2020-01-21 489.09KB







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0154T8_STM32 Code                    1.0               English        2019-10-22         2.32MB
4 Gray Sample Code               1.0            English       2019-08-16       1.66MB
Partial update sample code               1.0            English       2019-08-21        1.68MB
Partial refresh code-4 Gray               1.0            English       2020-02-20        2.34MB
 Readme(SPI interface Partial refresh considerations)               1.0            English       2019-11-19         0.84KB
