Your present location:Home >> 3-Color EPD >> 1.54 inch 3-color e-paper display module GDEW0154Z17
  • Product Name: 1.54 inch 3-color e-paper display module GDEW0154Z17
  • Code: 015402
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 3±0.5
  • Views : 2570

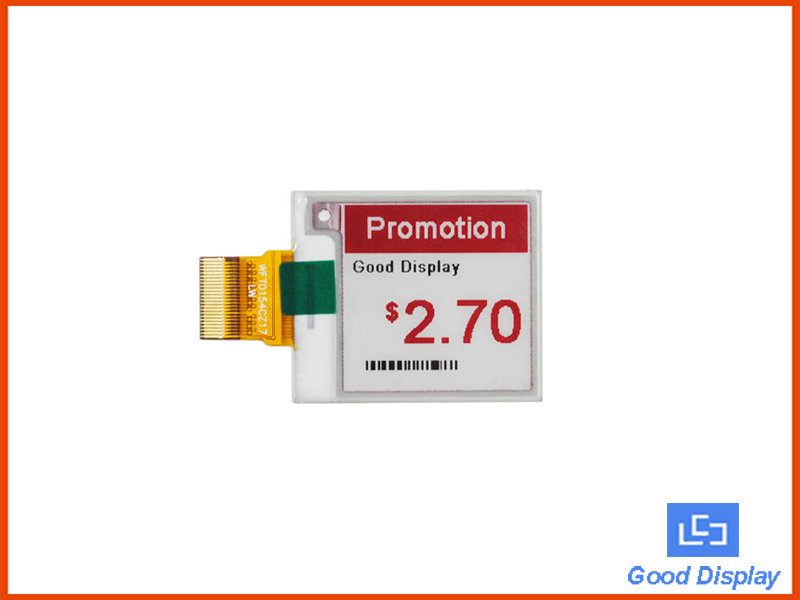

This is an E ink E paper display panel, 1.54 inch, 152x152 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,supports red, black, and white three-color.

In view of so many advantages: ultra low power consumption, near 180 degree view anglereadable under sunlight, GDEW0154Z17 is a very good choice for applications like:
Shelf label
Smart tags
Wearable devices, smart home application, industrial instrument,
Smart cards and other related products.

Note: All of 3-color epaper doesn't support partial refesh






Three colors, black, white and red
152x152 resolution
Front light, Touch screen(Optional)
The I2C signal master interface to read built-in temperature sensor.
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266








Part Number

GDEW0154Z17

Type

Dot Matrix

Resolution

152*152

Outline Size(mm)

31.8*37.32*0.98

Active Size(mm)

27.51*27.51

Pixel Pitch(mm)

0.181*0.181

Operating Temp.

0C~40C

Storage Temp.

-25C~60C

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White,Red

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 16

Purchase Online

buyepaper /AliExpress









Part Number

Color

Full refresh Time

Resolution

Feature

T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

GDEW0154Z04

BWR

8S

200x200

Three colors

GDEW0154Z17

BWR

16S

152x152

Three colors

GDEW0154C39

BWY

26S

152x152

Three colors

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

GDEW0154M09

BW 0.82S 200x200 Fast speed,High Resolution
