Your present location:Home >> 2-Color EPD >> large size bendable flexible electronic paper screen 13.3 inch GDEP133UT1-S
  • Product Name: large size bendable flexible electronic paper screen 13.3 inch GDEP133UT1-S
  • Code: 13302
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 4528

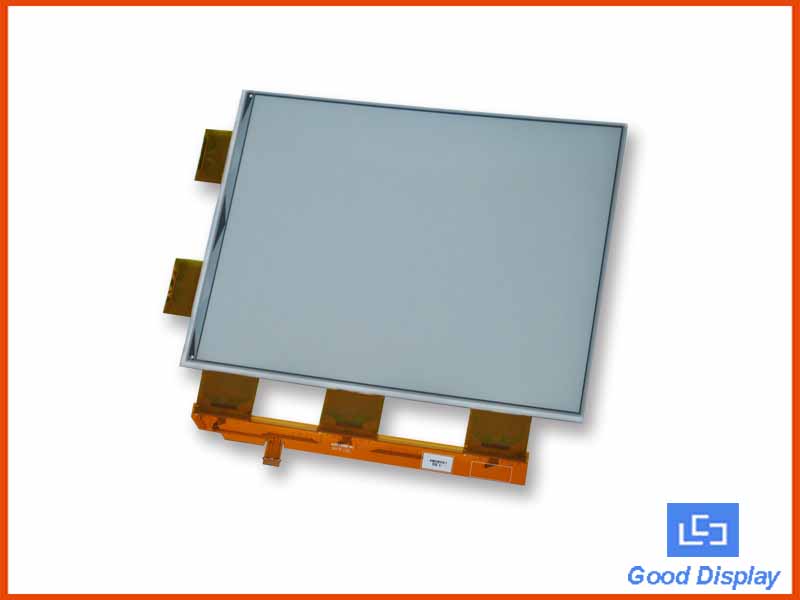

GDEP133UT1 is a reflective electrophoretic E Ink technology display module based on active matrix
TFT and plastic substrate. The plastic substrate is protected by an outer covering, which is a part of the
display. It has 13.3” active area with 1600 x 1200 pixels, the display is capable to display images at 2-16
gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.







Model

GDEP133UT1-S

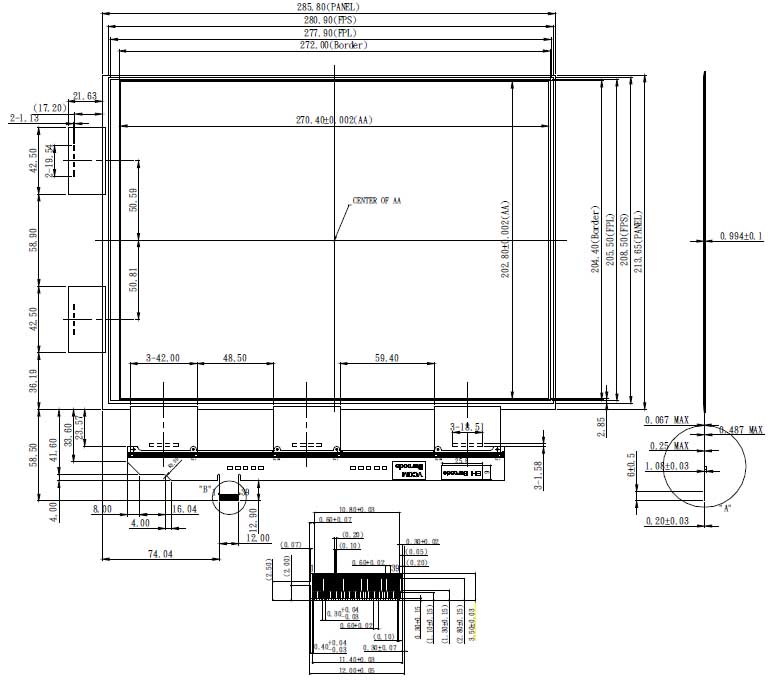

Dimension

289.8(W)×217.65(H)×0.732(D) (panel area height)

Screen Size

13.3inch

E-Paper Type

E-ink (EPD)

Resolution

1600(H)x1200(V)

Pixel Pitch

0.169 (H)×0.169 (V)mm

Active Area

270.4 (H)×202.8 (V)mm

Operation Temperature

0C-50C

Storage Temperature

-25C-70C

Weight

62±5

Display operating mode

Reflective mode

Surface treatment

Anti-glare treatment for protective sheet













File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2015-12-29
469.22KB








1. This product comes with a one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2. All the products will be 100% tested before delivery.
3. Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer's part.
4. We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5. The returns should be returned with our original packages.
6. Defective products must be returned within 30 days from the RMA issuing date. Otherwise, no replacement will be made.
7. Customers must contact us first for the return address.
8. No refund is accepted after 30 days of receipt.
9. The returns made for non-defective merchandise will be charged a up to 30% restocking fee.
10. In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11. The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days.






Q: What is the difference between an Matrix display and an Segmented display?

A: The underlying ePaper technology is very similar but is tuned to the needs of the different applications of a Matrix display versus a Segmented display.

Matrix displays are intended for applications requiring the display of many different forms of text and images. These displays comprise of a large array of pixels. These individual pixels are controlled by a TFT array similar to what you will have a typical computer monitor or TV screen.

Segmented displays are intended for applications where the display requirements can be met using predefined segments that can be turned on or off. This is similar to what one would see in a typical calculator with a numeric or alphanumeric display.

Basically will the display be made up of an array of pixels or by a collection of predefined shapes.



Q: What is Good Display's minimum purchase quantity for Matrix displays?

A: You can purchase one unit matrix display for standard products, but you must have 100,000 unit and even more volume for custom products, this varies based on the size and requirements of the display application and whether it is a custom or standard size display. It is best to discuss your requirements with a member of our sales team.



Q: What is the pricing for Good Display Matrix displays?

A: Pricing for Matrix displays depends on volumes and whether the display is a custom or standard display. The main driver of pricing is the overall display size, whether the display is monochrome or color.



Q: How large/small can Matrix e-ink displays be?

A: The size and shape of a Matrix e-ink display is totally dictated by the size of the electrical backplane that the FPL is laminated to. Displays can be very small or very large. E Ink has standard display modules. Almost any size and shape can be made depending on the volumes.



Q: What voltage is required to drive a Matrix e-ink display?

A: The drive for E Ink displays is typically 15 volts. An ecosystem of electronic components exists for design of complete epaper systems.



Q: How much power does a Matrix e-ink display consume?

A: Matrix e-ink displays are bi-stable. This means that they only consume power while the display is being updated. No power is required to maintain an image after it has been updated. The power required to for the update process depends on the size of the display but is of the order of microwatts.



Q: Does Good Display have developer kits for Matrix products?

A: Yes there are developer kits available for Matrix products from Good Display. These kits are not available for general sale. They are available for customers who are evaluating a display for incorporating into an end product. The best way to access the kits is by contacting sales.









Size

Part Number

Color

Refresh Time

Resolution

Feature

1.02”

GDEW0102I4F

Black, White

--

128*80

Flexible

1.43”

GDEP014TT1

Black, White

--

296*128

Flexible

1.54”

GDEH0154D27FL

Black, White

6.29S

200*200

Partial refresh/Frontlight

GDEM0154E97LT

Black, White

2.15S

152*152

Ultra low temperature

GDEW0154Z17

Black,White,Red

3.49S

152*152

Three colors

2.13”

GDEW0213I5F

Black, White

--

212*104

Flexible/Partial refresh

GDEW0213V7LT

Black, White

--

212*104

Ultra low temperature

GDEW0213Z16

Black,White,Red

10.53S

212*104

Three colors

GDEW0213C38

Black,White,Yellow

--

212*104

Three colors

2.6”

GDEW026T0

Black, White

2.62S

296*152

Partial refresh

2.7”

GDEW027W3-T

Black, White

2.3S

264*176

Partial refresh/touch screen

GDEW027C44-T

Black,White,Red

15.91S

264*176

Three colors/touch screen

2.9”

GDEW029Z10

Black,White,Red

14.12S

296*128

Three colors

GDEH029D56LT

Black, White

2.83S

296*128

Ultra low temperature

GDEW029I6F

Black, White

--

296*128

Flexible/ Partial refresh

3.71”

GDEW0371W7

Black, White



416*240

Partial refresh

4.2”

GDEW042T2

Black, White

6.2S

400*300

Partial refresh

GDEW042Z15

Black,White,Red

14.54S

400*300

Three colors

4.3”

GDE043A2

Black, White

--

800*600

parallel

5.83”

GDEW0583T7

Black, White

1.12S

600*448

SPI

6.0”

GDE060BAFL-T

Black, White

--

800*600

Parallel/Touch/Frontlight

GDE060F3

Black, White

--

1024*758

Parallel/High Resolution

7.5”

GDEW075Z09

Black,White,Red

14.87S

640*384

Three colors

8.0”

GDEW080T5

Black, White

--

1024*768

parallel

9.7”

GDEP097TC2

Black, White

--

202.8×139.425

parallel

12.48”

GDEW1248T3

Black, White

--

1304*984

SPI/Large size

13.3”

GDEP133UT1

Black, White

--

1600x1200

parallel/Large size

31.2”

GDEP312TT2-D

Black, White

--

2560*1440

parallel/Large size
