Your present location:Home >> 2-Color EPD >> 2.9 inch e-paper display buy e ink display module epd display manufacture e-ink display sale China GDEM029E97
  • Product Name: 2.9 inch e-paper display buy e ink display module epd display manufacture e-ink display sale China GDEM029E97
  • Code: 02907
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 153

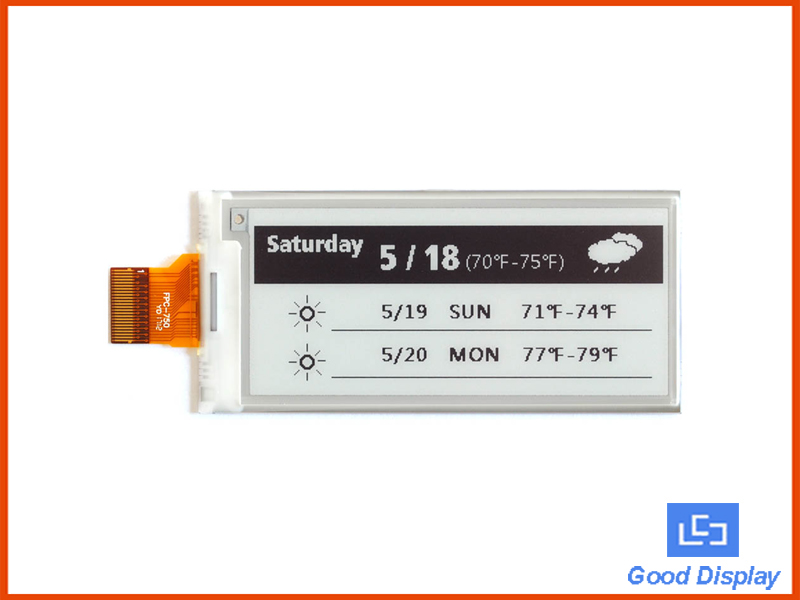

This is a 2.9 inch E ink E paper display panel, 296*128 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEM029E97 is a very good choice for applications like:
· Shelf label
· Smart tags
· Smart home application
· Industrial instrument
· Portable electronic devices
· And other related products.







· Partial refresh
· 296x128 resolution
· Ultra low power consumption
· SPI interface, 24 pin
· Come with helpful development resources and manual
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEM029E97

Type

Dot Matrix

Resolution

296*128

Outline Size(mm)

36.7*79*1.2

Active Size(mm)

66.9*29.06

Pixel Pitch(mm)

0.226*0.227

Operating Temp.

0~50C

Storage Temp.

-25~70C

Connector

24 Pin FPC

Max Grayscale

2

Color

Black,White

Refresh time 3S
Buy Samples

buyepaper  /  Amazon









Part Number

Color

Feature

Full refresh time
GDEH029A1 Black, White Partial refresh 3s
GDEW029Z10 Black,White,Red Three colors 16s
GDEW029C32 Black,White,Yellow Three colors 18s
GDEH029D57LT Black, White Ultra low temperature --
GDEW029I6F Black, White Flexible, Partial refresh, 4 Grayscale 3s
GDEW029T5 Black,White Partial refresh, 4 Grayscale 3s
GDEH029Z12 Black,White,Red Three colors 13s





Datasheet-E Paper Display,Controller IC,Connector,Source Code



File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEM029E97 Specifications

1.0

English

2018-09-11

2.2MB

IC Driver 1.0 English 2017-08-11 825.53KB
Connector Spec. 1.0 English 2017-08-11 1.77MB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click hereInquiry









STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
Sample code               1.0            English      2019-02-14      2.32MB



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0            English       2018-11-28       462.58KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB











File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11











If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
