Your present location:Home >> 3-Color EPD >> 2.9-inch color e-paper display electronic paper screen GDEW029Z10
  • Product Name: 2.9-inch color e-paper display electronic paper screen GDEW029Z10
  • Code: 02902
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 7.35±0.5
  • Views : 4806

Now we have another type of 2.9 inch red e-paper, click the picture to know more:

2.9 inch colorful e-paper display, black, white and red, e-ink screen module, GDEH029Z92







The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 2.9” active area contains 296×128 pixels, and has 1-bit black/white and highlight red full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel
Note: All of 3-color epaper doesn't support partial refesh.





Three colors, black, white and red

296×128 resolution
The I2C signal master interface to read built-in temperature sensor.
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Model

GDEW029Z10

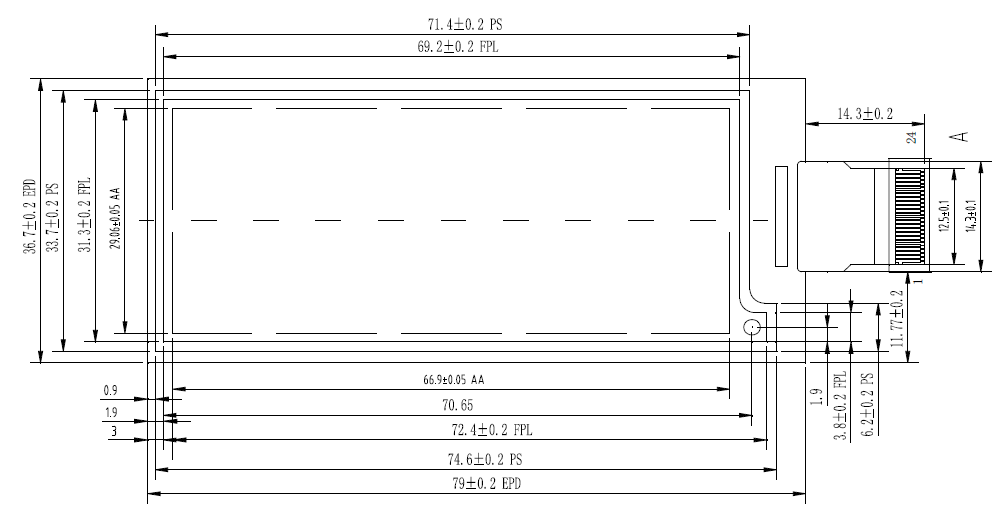

Dimension

79.0 (H)x36.7 (V) x1.18(D)mm

Screen Size

2.9inch

E-Paper Type

E-ink (EPD)

Resolution

296(H)x128(V)

Pixel Pitch

0.227×0.226mm

Active Area

66.9 (H)×29.06(V)mm

Operation Temperature

0C-40C

Storage Temperature

-25C-60C

Weight

7.35±0.5g

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 16
Purchase Online

buyepaper / AliExpress







Part Number

Color

Feature

Full refresh time
GDEH029A1 Black, White Partial refresh 3s
GDEW029Z10 Black,White,Red Three colors 16s
GDEW029C32 Black,White,Yellow Three colors 18s
GDEH029D57LT Black, White Ultra low temperature 2s
GDEW029I6F Black, White Flexible, Partial refresh, 4 Grayscale 3s
GDEW029T5 Black,White Partial refresh, 4 Grayscale 3s
GDEH029Z12 Black,White,Red Three colors 13s










File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW029Z10 Specifications

2.3

English

2018-10-29

1.15MB

IC Driver 1.0 English 2017-08-11 854.23KB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 559.91KB







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW029Z10 STM32 Code               1.0            English      2019-10-22      2.32MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0            English      2018-11-28       462.58KB
GDEW029Z10 Arduino Code               1.0             English      2020-02-14        14.59KB



Rasberry Pi Development Board





File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW029Z10 Rasberry Pi                1.0             English      2019-10-25          99KB



ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB








File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11
