Your present location:Home >> 2-Color EPD >> 2.9 inch flexible e ink display module e paper display buy epd display manufacture GDEW029I6F
  • Product Name: 2.9 inch flexible e ink display module e paper display buy epd display manufacture GDEW029I6F
  • Code: 02906
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 574

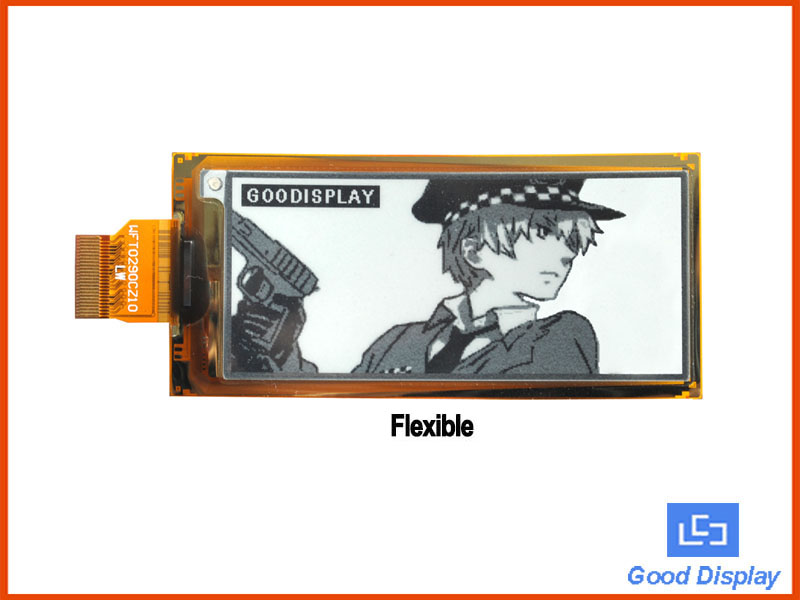

This is a 2.9 inch flexible E ink Epaper display panel, 296*128 resolution, 24 pins FPC connection, communicating via SPI interface and IC driver with partial refresh. Its waveform is stored in on-chip OTP, and is available in COG package IC thickness 280μm, supports black and white.

In view of so many advantages: ultra low power consumption, ultra wide viewing angle, GDEW029I6F is a very good choice for applications like:
· Smart tags
· Smart watch
· And other related products.







· Flexible & partial refresh dot matrix e paper.
· Keeps displaying the last content when power down.
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· Comes with helpful development resources and manual (STM32 platform )






Part Number

GDEW029I6F

Type

Dot Matrix

Resolution

296*128

Outline Size(mm)

79*36.7*0.34

Active Size(mm)

66.9*29.06

Pixel Pitch(mm)

0.227*0.226

Operating Temp.

0~50C

Storage Temp.

—25~70C

Connector

24 Pin

Max Grayscale

2

Color

Black,White

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Buy Samples

(price without shipping fee)



  (price with shipping fee)









Part Number

Color

Feature

Refresh time

Partial refresh time

GDEH029A1 Black, White Partial refresh 1s 0.3s
GDEW029Z10 Black,White,Red Three colors 16s --
GDEW029C32 Black,White,Yellow Three colors 18s --
GDEH029D56LT Black, White Ultra low temperature 1s 0.3s
GDEW029I6F Black, White Flexible, Partial refresh 3s 0.3s
GDEM029E97 Black, White SPI interface -- --
GDEW029T5 Black,White Partial refresh 3s 0.3s







File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW029I6F Specifications

1.1

English

2018-10-30

1.68MB

IC Driver 1.0 English 2017-08-11 783.94KB
Connector Spec. 1.0 English 2017-08-11 1.77MB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW029I6F STM32 Code               1.0            English      2019-02-14      2.32MB



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-01-25

      673.62KB

DESPI-C01-SCH

                   1.0                English        2018-01-25         701.28KB
DESPI-M01-SCH                    1.0                English        2018-01-25         1.2MB





File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11
Notices for Flexible Screen English  2019-05-07









Q:What is the refresh power and standby power consumption of this e-paper?
A:Under normal conditions, refresh 4mA, standby 5uA.
