Your present location:Home >> 3-Color EPD >> 2.9 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW029C32

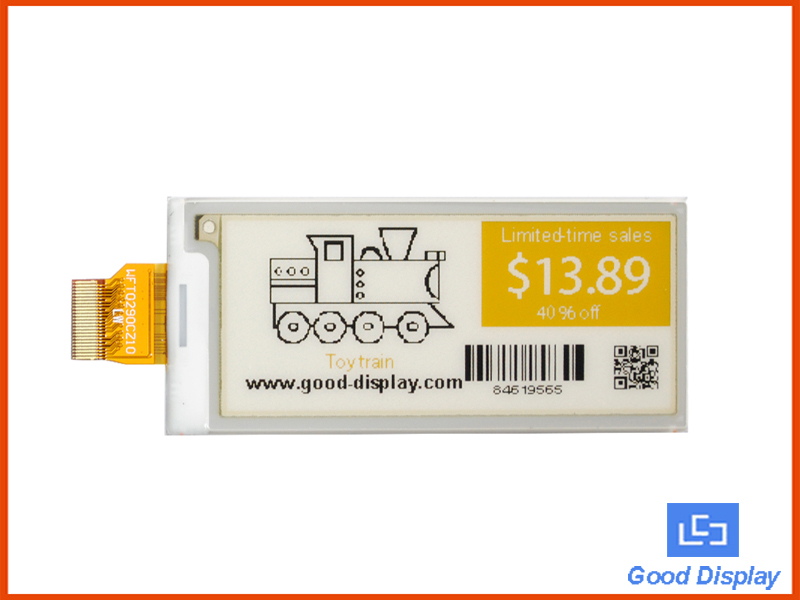

  • Product Name: 2.9 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW029C32
  • Code: 02905
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: 7.4 + 0.5g
  • Views : 780

This is an E ink E paper display panel, 2.9 inch, 296x128 resolution, square, 24 pins FPC connection, optional FPC
connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,
supports yellow, black, and white three-color.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,
GDEW029C32 is a very good choice for applications like:

Shelf label
Smart tags
Wearable devices
Smart home
Application
Industrial instrument, smart cards and other related products.






· Keeps displaying the last content when power down.
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· Comes with helpful development resources and manual (STM32 platform )
· I2C Signal Master Interface to read external temperature sensor
· Available in COG package IC thickness 280um.







Part Number

GDEW029C32

Screen Size

2.9 inch

Resolution

296(H)*128(V)

Outline Size(mm)

79.0(H)*36.7(V)*1.18(D)

Active Size(mm)

66.9(H)*29.06(V)

Pixel Pitch(mm)

0.227*0.226

Pixel Configuration

Square

Weight

7.4 + 0.5

Color

Black,White,Yellow

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 18
Time of partial refresh(s) --

Purchase Online

buyepaper   /    Amazon





Part Number

Color

Feature

Refresh time
GDEH029A1 Black, White Partial refresh 3s
GDEW029Z10 Black,White,Red Three colors 16s
GDEW029C32 Black,White,Yellow Three colors 18s
GDEH029D56LT Black, White Ultra low temperature 3s
GDEW029I6F Black, White Flexible, Partial refresh, 4 Grayscale 3s
GDEW029T5 Black,White Partial refresh, 4 Grayscale 3s










File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW029C32 Spec.

3.3

English

2018-10-29

1.22MB

IC Driver 1.0 English 2017-08-11 825.53KB
Connector Spec. 1.0 English 2017-08-11 1.77MB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry






STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW029C32 STM32 Code               1.0            English      2019-10-22      2.32MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DEArduino UNO for EPD_SCH                1.0            English      2018-11-28       462.75KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
GDEW029C32 Arduino Code                1.0             English       2019-10-22        5KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW029C32 Rasberry Pi               1.0            English      2019-10-25        79.8KB









File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11
