Your present location:Home >> 3-Color E-Paper >> 1.54 inch tri-color e-paper display, 3-color epaper screen, GDEW0154Z04
  • Product Name: 1.54 inch tri-color e-paper display, 3-color epaper screen, GDEW0154Z04
  • Code: 01502
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 2.18±0.5
  • Views : 6294

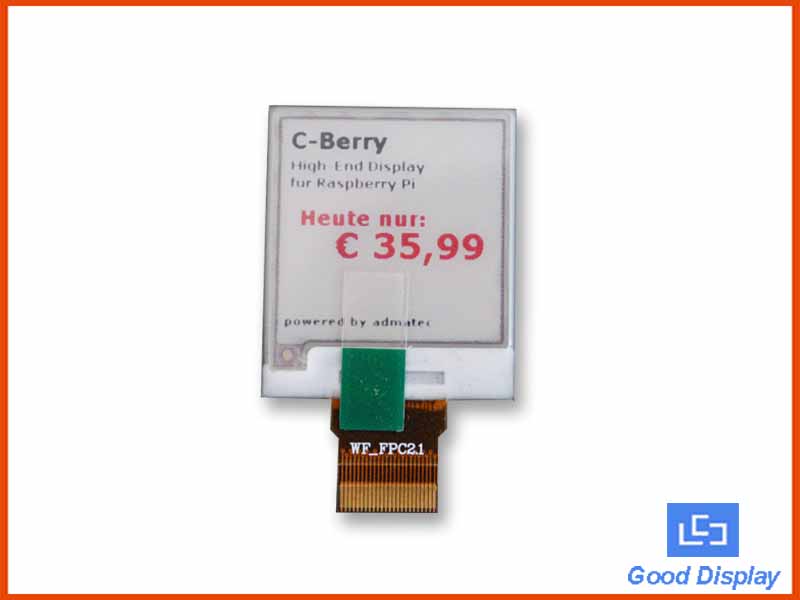

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 1.54” active area contains 200×200 pixels, and has 1-bit black/white and highlight red full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.







High contrast
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode
Antiglare hard-coated front-surface
Low current sleep mode
On chip display RAM
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
I2C Signal Master Interface to read external temperature sensor
Available in COG package IC thickness 300um

Front light, Touch screen(Optional)

Development platform available STM32 / Arduino / Raspberry Pi













Part Number

GDEW0154Z04

Type

Dot Matrix

Resolution

200*200

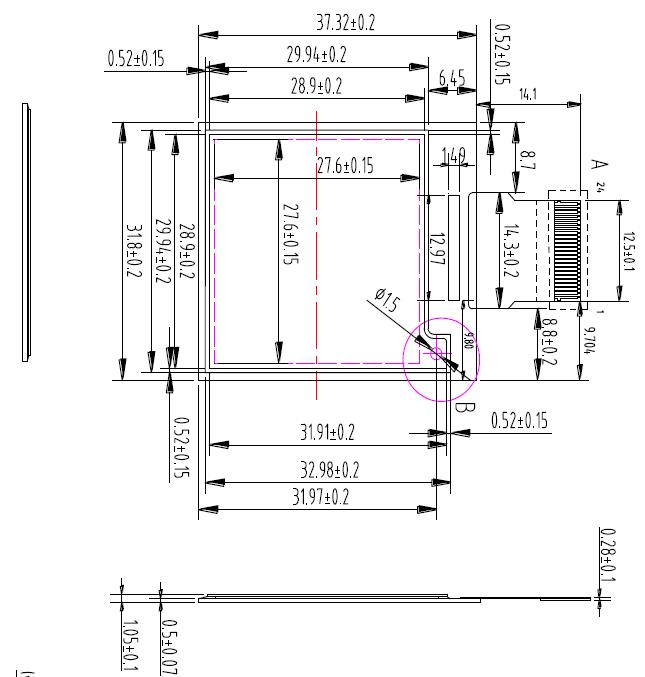

Outline Size(mm)

31.8*37.32*0.98

Active Size(mm)

27.6*27.6

Pixel Pitch(mm)

0.138*0.138

Operating Temp.

0~40C

Storage Temp.

- 25~60C

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White,Red

Refresh power consumption
Stanby power consumption
Partial refresh time
Full refresh time
Buy Samples



(price without shipping fee)



  (price with shipping fee)












Part Number

Color

Refresh Time

Resolution

Feature

T/P(optional) Front-Light
(optional)

GDEH0154D27

Black, White

6.29S

200*200

Partial refresh,
High Resolution

GDEW0154Z04

Black,White,Red

6.99S

200*200

Three colors

GDEW0154Z17

Black,White,Red

3.49S

152*152

Three colors

GDEW0154C39

Black,White,Yellow

--

152*152

Three colors

GDEW0154T8

Black, White

6.67S

152*152

Partial refresh,
Cheap









Datasheet-E Paper Display,Controller IC,Connector,Source Code



File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0154Z04 Specifications

3.0

English

2018-11-03

1.71MB

IC Driver 1.0 English 2017-08-11 623.03KB
Connector Spec. 1.0 English 2017-08-11 1.77MB



If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry









STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0154Z04_STM32 Code               1.0            English      2019-02-14      2.32MB



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
GDEW0154Z04_Arduino Code               1.0             English      2018-10-12        14.59KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-01-25

      673.62KB

DESPI-C01-SCH

                   1.0                English        2018-01-25         701.28KB
DESPI-M01-SCH                    1.0                English        2018-01-25         1.2MB
GDEW0154Z04_Raspberry Code                1.0             English      2018-08-22       27.08MB













File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11
