Your present location:Home >> 2-Color EPD >> 1.54 inch DES e-paper display wide working temperature 152X152 resolution outdoor EPD GDEW0154M10
  • Product Name: 1.54 inch DES e-paper display wide working temperature 152X152 resolution outdoor EPD GDEW0154M10
  • Code: 01500
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 85

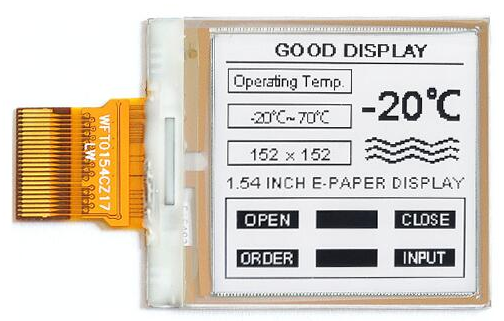

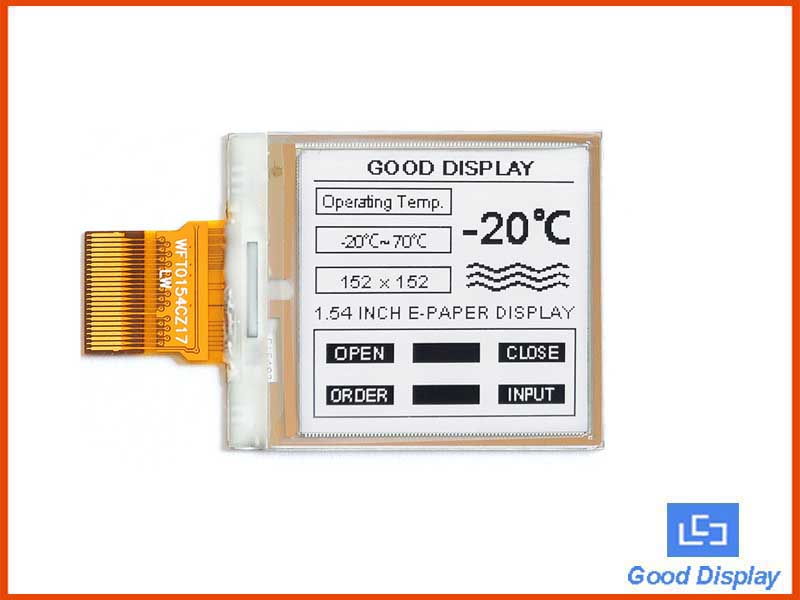

This is a DES (what is DES?) 1.54 inch e-paper display with 152X152 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface.  An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel. It has wide working temperature range: -20℃~60℃. It can be used in sunlight, so it is suitable for outdoor equipment.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, used in sunlight, wide working temperature, GDEW0154M10 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards, outdoor equipment. Also it can be used in cold environment.







· It is manufactured using a new process: DESDES series products have the following characteristics:

* High contrast, better display effect
VS
DES technology   Other technology



*Extended operating temperature range: -20℃~60℃ ( Most 2-color e-paper: 0~50℃, most 3-color e-paper: 0~40℃, ordinary low temperature e-paper: -25℃~25℃)
*It can be used in sunlight, so it is suitable for outdoor equipment.

· I2C Signal Master Interface to read external temperature sensor
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW0154M10

Technology DES
IC UC8151D

Resolution

152x152

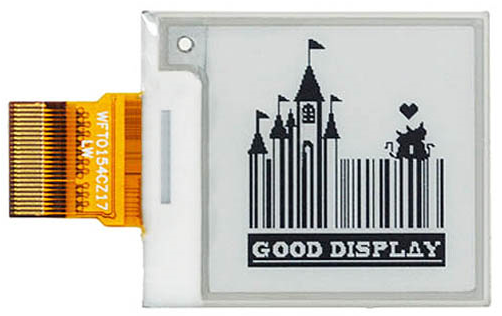

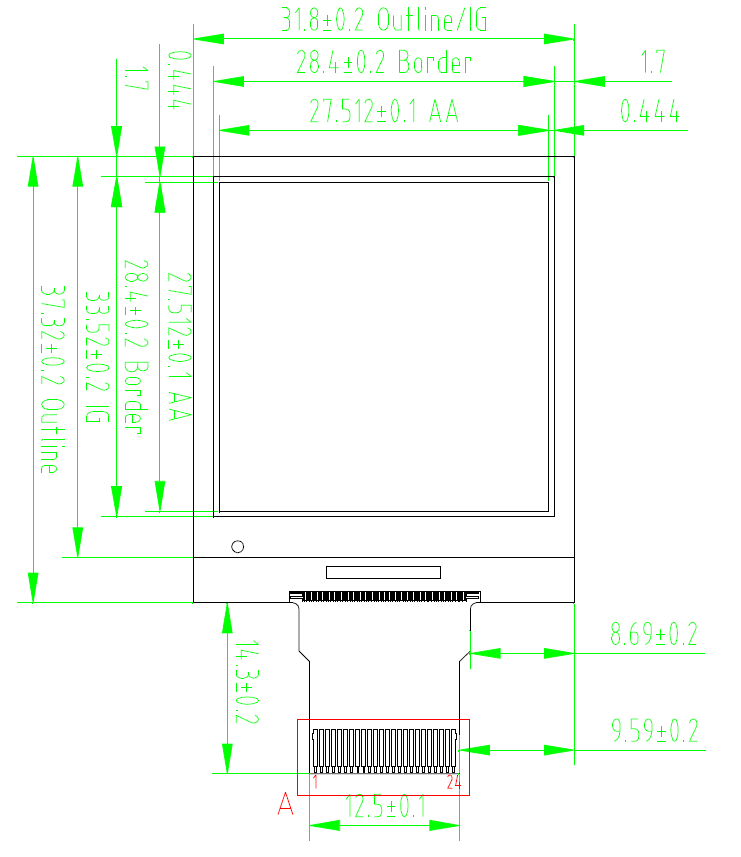

Outline Size(mm)

31.8x37.32x1.02

Actve Size(mm)

27.512x27.512

Pixel Pitch(mm)

0.181x0.181

Operating Temp.

-20℃~60℃

Storage Temp.

-25℃~75℃

Connector

24 Pin FPC

Max Grayscale

4

Color

Black,White

Interface SPI
Power consumption of the refresh(mW) 18
Standby power consumption Pc(mW) 0.0165



Refresh time of each temperature segment

Temperature segment

Refresh time

-25℃~ -20℃ 60s
-20℃~ -10℃ 60s

-10℃~0℃

30.58s

0℃~10℃

9.86s

10℃~20℃

4.74s

20℃~30℃

2.8s

30℃~70℃

2.92s














Part Number

Color

Full refresh Time

Resolution

Feature

T/P and Front-light(optional)

GDEH0154D67

BW

2S(Full refresh)

200x200

Partial refresh,High Resolution

GDEW0154Z04

BWR

8S(Full refresh)

200x200

Three colors

GDEW0154Z17

BWR

16S(Full refresh)

152x152

Three colors

GDEW0154C39

BWY

26S(Full refresh)

152x152

Three colors

GDEW0154I9F

BW

3S(Full refresh)

152x152

Flexible

x

GDEM0154E97LT

BW

3S(Full refresh)

152x152

Low temperature

GDEW0154T8

BW

3S(Full refresh)

152x152

Partial refresh,4 Grayscale

GDEW0154M09 BW 0.82S(Fast refresh) 200x200 Fast speed,High Resolution
GDEW0154M10 BW 4S(Full refresh) 152x152 DES, Wide working temperature, Can be used outdoors









Datasheet-E Paper Display,Controller IC,Connector,Source Code



File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0154M10 Specification

1.0

English

2020-05-20

2.2MB

Controller Datasheet 1.0 English 2020-05-22 860.83KB
Connector Spec. 1.0 English 2017-08-11 1.77MB

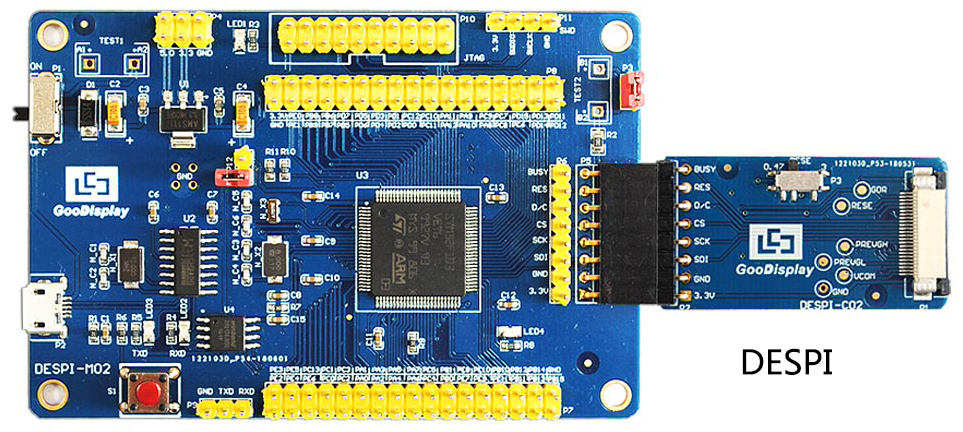

STM32 Development Board



File Type
