Your present location:Home >> 2-Color EPD >> 2.13-inch e-ink display black and white 4 grayscale electronic paper screen partial refresh GDEW0213T5

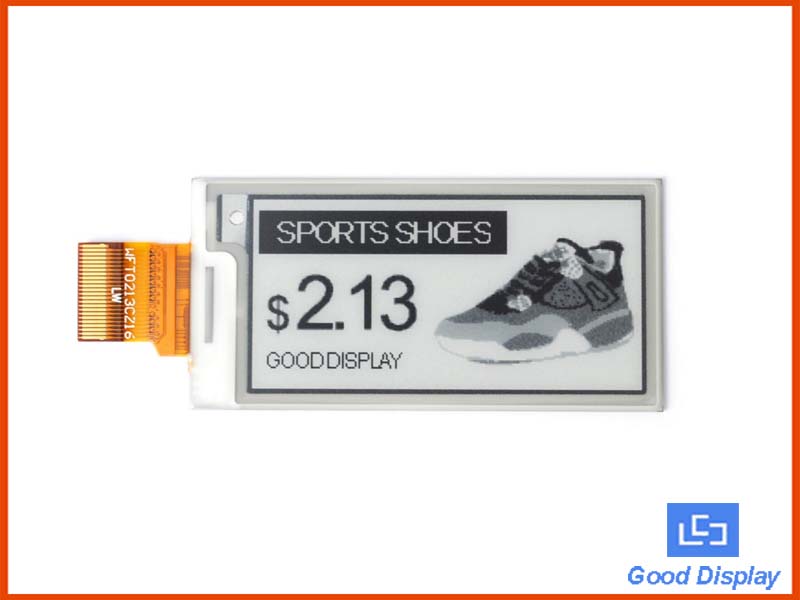

  • Product Name: 2.13-inch e-ink display black and white 4 grayscale electronic paper screen partial refresh GDEW0213T5
  • Code: 02131
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: pcs
  • Net weight: 3.36±0.5
  • Views : 4350


This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, 4 Grayscale24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white. Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213T5 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.



· Support partial refresh, fast update and no flicker update.

· 4 Grayscale
· 212x104 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266





Part Number

GDEW0213T5

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

29.2*59.2*0.98

Active Size(mm)

23.71*48.55

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

0~50℃

Storage Temp.

-25~70℃

Connector

24 Pin FPC

Max Grayscale

4

Color

Black,White

Current of the refres(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Purchase Online

buyepaper/AliExpress











Part Number

Color

Resolution

Feature

Full refresh time

GDEH0213B72 Black, White 250x122 Partial refresh 2s
GDEH0213B73 Black, White

  250x122

Partial refresh 4s
GDEW0213I5F Black,White 212x104 Flexible,Partial refresh,4 Grayscale 3s
GDEH0213D30LT Black,White 212x104 Low temperature 3s
GDEW0213V7LT Black,White 212x104 Low temperature 3s
GDEW0213Z16 Black,White,Red 212x104 Three colors 16s
GDEW0213C38 Black,White,Yellow 212x104 Three colors 18s
GDEH0213Z98 Black,White,Red 250x122 Three colors 13s
GDEW0213T5 Black, White 212x104 Partial refresh,4 Grayscale 3s







File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0213T5 Spec.

1.1

English

2018-11-14

2.2MB

 IC Driver Datasheet 1.0 English 2018-07-31 825.53KB
Connector Spec. 1.0 English 2018-07-31 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-01-21 487.59KB
 Picture Production and Bitmap Convert - 4 Grayscale 1.0 English 2020-01-21 483.84KB









STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0213T5 STM32 Code               1.0            English      2019-10-22      2.32MB
Partial update sample code               1.0            English      2019-04-30                 2.01MB
Readme(SPI interface Partial refresh considerations)               1.0            English      2019-11-19      0.84KB
4 Gray Sample Code               1.0            English      2019-08-16       1.66MB
Partial refresh code-4 Gray               1.0            English      2020-02-21       2.45MB

If you want to buy the set: e-paper and matched demo, please click here: With Connect Board



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0             English       2018-11-28       462.58KB
GDEW0213T5 Arduino Code               1.0             English      2020-01-14        14.59KB
GDEW0213T5 Arduino Code-4Grey                1.0             English      2020-02-14         4.17KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0213T5 Rasberry Pi                1.0            English      2019-10-25        82.76KB
Raspberry Pi Code-4 Gray                1.0             English      2020-02-21       2.31KB



ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB









File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11
