Your present location:Home >> Color E-Paper >> RTL8720 CN WiFi+BLE4.2 Multi-function Realtek development board RTL8720CN-EVB
  • Product Name: RTL8720 CN WiFi+BLE4.2 Multi-function Realtek development board RTL8720CN-EVB
  • Code: RTL8720CN-EVB
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 55

Click to buy Now



Ameba Z2 RTL8720CN is a highly integrated single-chip with low power consumption mechanism for IoT (Internet of Things). It combines an arm® new architecture Armv8M KM4 MCU, Wi-Fi, Bluetooth and provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

RTL8720CN SoC also integrates internal 4MB RAM memory to minimize IoT end-product size and reduce your development cost.

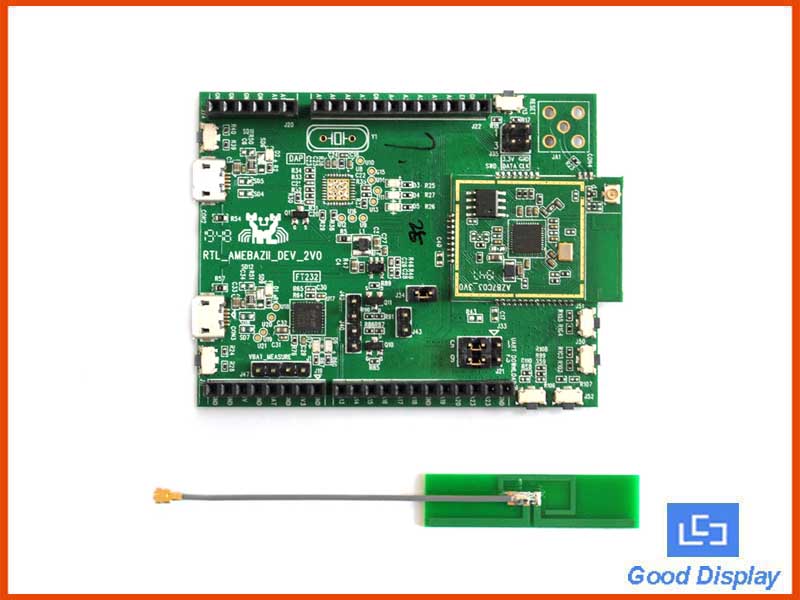

RTL8720CN-EVB Wireless Dev Board is a convenient development kit for makers. It separate into 2 boards, the small one- AFM201T. WiFi+Bluetooth Module on the top is main mother board with all functions included, and the other on the bottom is similar to Arduino UNO form factor size which provides the development interface CMSIS-DAP mode and J-LINK debugger mode.



RTL8720CN has the following features:

MCU
ARMv8M KM4, 100MHz

Memory
4.2MB internal RAM on SoC and 2MB external flash on Dev. Board

Wi-Fi
802.11 b/g/n 1×1 Wi-Fi (20/40MHz)
Wi-Fi simple config

Bluetooth
BLE 4.2
SIG Mesh (optional)

Security
Cryptographic operation
Secure boot (optional)
Wi-Fi WEP, WPA, WPA2, WPS









File Type

Description (Downloadable)

Version

Language

Update Date

Size

 RTL872xZ2 IC Datasheet 0.8 English 2020-03-04 2.643MB
 Ameba Z2 Dev. board schematic 1.0 English 2020-03-04 104KB
 Ameba Z2 Application Note 1.5 English 2020-03-04 5.35MB
 Ameba Z2 SDK 7.1 English 2020-03-04 119.7MB
 Burn Tool:Ameba Z2 PGTool 1.2.7 English 2020-03-04 579KB















Realtek P/N

Series

Evaluation Board

99IoT module

Protocol

CPU

Frequency

SRAM

BlueTooth

UART

SPI

I2S

ADC/DAC

RTL8710BN

Ameba Z

AFW122T-EVB

AFW122T

WiFi

ARM M4

125M

258KB

-

1

1

N  Y/N

RTL8710BX

Ameba Z

AFW121T-EVB

AFW121T

WiFi

ARM M4

62.5M

256KB

-

1

1

N  Y/N

RTL8710CX

Ameba Zii

RTL8710CX-EVB

AFM100T

WiFi

ARM M4

100M

256KB

-

3

1

N  N/N

RTL8710CM

Ameba Zii

RTL8710CM-EVB

AFM101T

WiFi

ARM M4

100M

256K+4M

-

3

1

N  N/N

RTL8720CN

Ameba Zii

RTL8720CN-EVB

AFM201T

WiFi+BLE4.2

ARM M4

100M

256KB

Ble4.2

2

1

N  N/N

RTL8720CF

Ameba Zii

RTL8720CF-EVB

AFM202T

WiFi+BLE4.2

ARM M4

100M

256KB

Ble4.2

2

1

N  N/N

RTL8720CM

Ameba Zii

RTL8720CM-EVB

AFM203T

WiFi+BLE4.2

ARM M4

100M

256KB

Ble4.2

2

1

N  N/N

RTL8720CS

Ameba CS

RTL8720CS-EVB

AFM301T

WiFi+BLE5 Mesh

 M0+M4

200M

512KB

Ble5.0 mesh

2

2

Y  Y/Y

RTL8721CSM

Ameba CS

RTL8721CSM-EVB

AFM304T

WiFi+BLE5 Mesh

 M0+M4

200M

512K+4M

Ble5.0 mesh

3

2

Y  Y/Y

RTL8722CSM

Ameba CS

RTL8722CSM-EVB

AFM303T

WiFi+BLE5 Mesh

 M0+M4

200M

512K+4M

Ble5.0 mesh

4

2

Y  Y/Y

RTL8720DN

Ameba D

RTL8720DN-EVB

AFM401T

2.4G+5G+BLE5

 M0+M4

200M

512K

Ble5.0 mesh

2

1

Y  Y/Y

RTL8721DM

Ameba D

RTL8721DM-EVB

AFM404T

2.4G+5G+BLE5

 M0+M4

200M

512K+4M

Ble5.0 mesh

3

2

Y  Y/Y

RTL8722DM

Ameba D

RTL8722DM-EVB

AFM403T

2.4G+5G+BLE5

 M0+M4

200M

512K+4M

Ble5.0 mesh

4

2

Y  Y/Y
