Your present location:Home >> 3-Color EPD >> 2.6 inch e-paper display color e ink screen black white and red GDEW026Z39
  • Product Name: 2.6 inch e-paper display color e ink screen black white and red GDEW026Z39
  • Code: 02602
  • Quantity in stock: 30
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 771

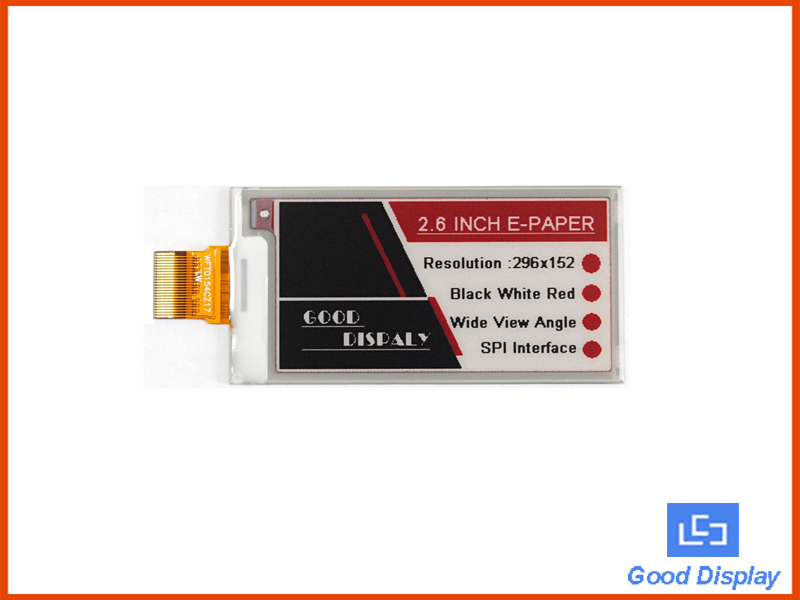

This is an E ink E paper display panel, 2.6 inch, 296*152 resolution, square, 24 pins FPC connection,
optional FPC connector, communicating via SPI interface, with embedded controller(COG package)
and on-chip stored waveform,  supports black,white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable
under sunlight, GDEW026Z39 is a very good choice for applications like:

· Shelf label
· Smart tags
· Smart home application
· Industrial instrument
· And other related products.
Note: All of 3-color epaper doesn't support partial refesh.





· Three colors, black, white and red
· 296x152 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW026Z39

Type

Dot Matrix

Resolution

296*152

Outline Size(mm)

71.82*36.3*1.18

Active Size(mm)

60.09*30.7

Pixel Pitch(mm)

0.203*0.202

Operating Temp.

0~40℃

Storage Temp.

-25~60℃

Connector 24 Pin FPC, Pitch:0.5mm
Interface SPI

Color

Black,White,Red

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 16
