Your present location:Home >> Monochrome LCD >> 5.0" 320x240 Grahpic LCD YM320240B-3
  • Product Name: 5.0" 320x240 Grahpic LCD YM320240B-3
  • Code: 111
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 951


YM320240B-3 Graphic LCDs Family:

320x240 graphic LCD module

Built-in Epson SED1335 compatible controller

Available in several variations of backlight and polarizer  (minimum order may be required)

Wide temperature range: -40°C to 80°C (-40°F to 176°F)

RoHS Compliant





Manufacturer GOOD DISPLAY
Part Number YM320240B-3
Dot Format 320X240

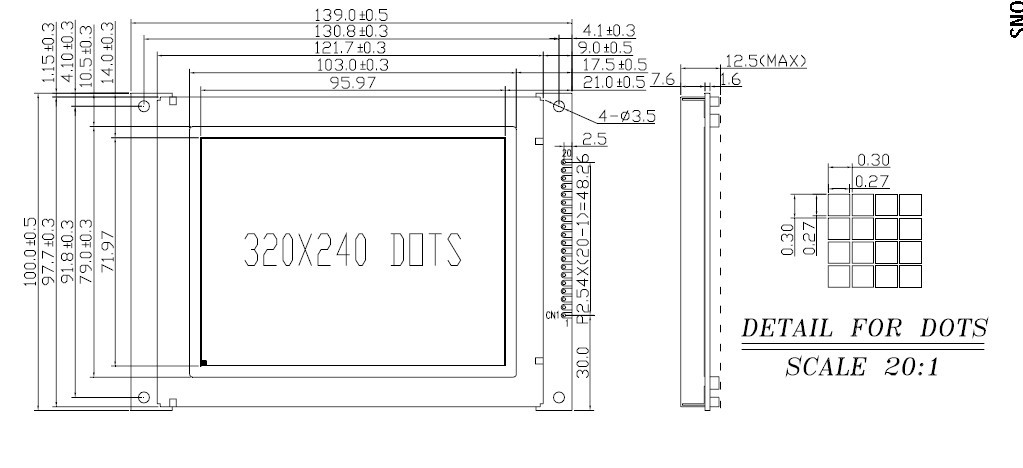

Outline Dimension 139.0 (W) x 120.0 (H) x 13.2 (D)
View Area(W×H) 103.0 (W) x 79.0 (H)
Dot Size(W×H) 0.27 (W) x0.27 (H)

Operating Temp


Storage Tempe


Dot Pitch(W×H) 0.30 (W) x0.30 (H)
Contrast Ratio 15:1
Type Transmissive
Luminance (Cd/m2) 150
Operating voltage 5.0V
Backlight LED
IC Packaging TAB
Net Weight 265g






File Type

Description (Click to see more)


Update Date
TFT LCD Display knowledge -- FAQ English 2011-05-11
Warranty English 2016-10-25
Precautions for LCD modules English 2019-07-10
RoHS English 2018-12-27
Banking information English 2017-02-08






If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry

download attachments : YM320240B-3 specification 【查看】
