Your present location:Home >> IoT MCU Dev Board >> RTL8721CSM WiFi Bluetooth5.0, Realtek MCU Development Board RTL8721CSM-EVB
  • Product Name: RTL8721CSM WiFi Bluetooth5.0, Realtek MCU Development Board RTL8721CSM-EVB
  • Code: RTL8721CSM-EVB
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 139

Click to buy Now





Ameba CS RTL8721CSM(QFN68) is a highly integrated single-chip with low power consumption mechanism for IoT (Internet of Things). It combines an arm® new architecture Armv8M KM4 MCU, Wi-Fi, Bluetooth and provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

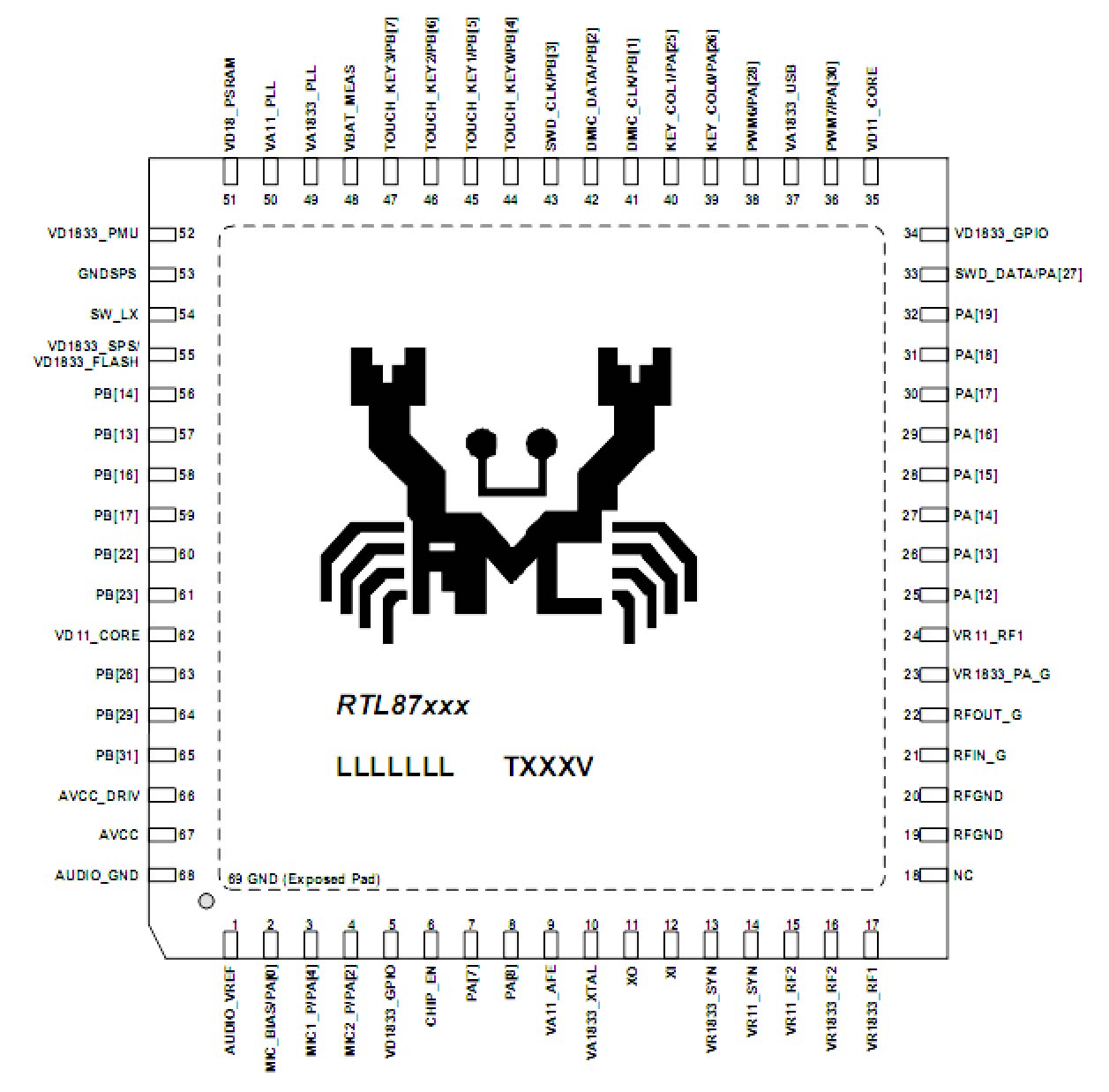

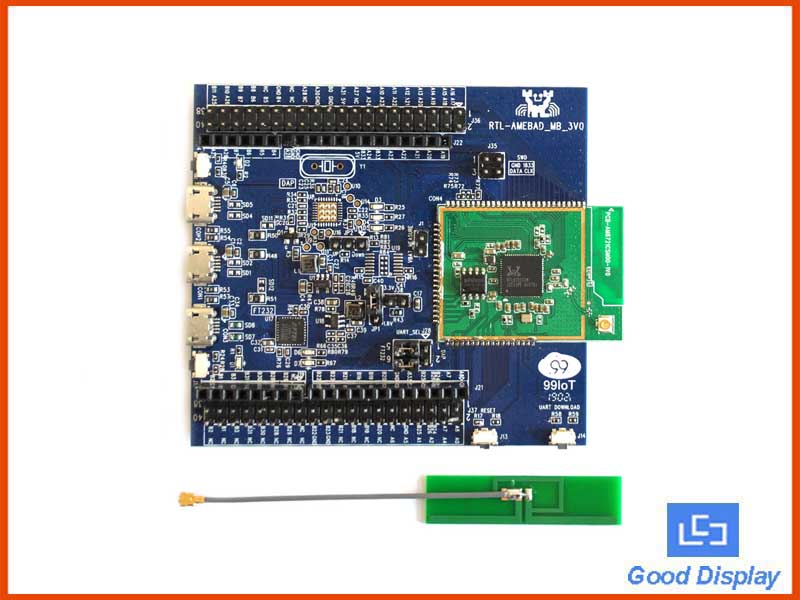

RTL8721CSM-EVB Wireless Dev Board is a convenient development kit for makers. It separate into 2 boards, the small one- AFM304T. WiFi+Bluetooth Module on the top is main mother board with all functions included, and the other on the bottom is similar to Arduino UNO form factor size which provides the development interface CMSIS-DAP mode and J-LINK debugger mode.

RTL8721CSM has the following features:

CPU
  • - 32-bit Arm®Cortex®-M4, up to 200MHz
  • - 32-bit Arm®Cortex®-M0, up to 20MHz
  •
  • Memory
  • - 512KB SRAM + 4MB PSRAM
  •
  • Key Features
  • - Integrated 802.11a/n Wi-Fi SoC
  • - Trustzone-M Security
  • - Hardware SSL Engine
  • - Root Trust Secure Boot
  • - USB Host/Device
  • - SD Host
  • - BLE5.0
  • - Codec
  • - LCDC
  • - Key Matrix

  • Other Features
  •
  • - 3 UART interface
  • - 1 I2S Interface
  • - 2 I2C interface
  • - 17 PWM
  • - Max 64 GPIO
  •






    File Type

    Description (Downloadable)

    Version

    Language

    Update Date

    Size

     BLE 5.0 development guide

    1.0

    English

    2020-03-04

    3.825MB

     RTL872xCS-Datasheet 1.7 English 2020-03-04 2.643MB
     Development board schematic 1.0 English 2020-03-04 104KB
     Started guide 1.0 English 2020-03-04 104KB
     Burn tool 1.0 English 2020-03-04 258KB
     Pin function definition 1.0 English 2020-03-04 246KB
     The user manual 1.0 English 2020-03-04 22.73MB











    Realtek P/N

    Series

    Evaluation Board

    99IoT module

    Protocol

    CPU

    Frequency

    SRAM

    BlueTooth

    UART

    SPI

    I2S

    ADC/DAC

    RTL8710BN

    Ameba Z

    AFW122T-EVB

    AFW122T

    WiFi

    ARM M4

    125M

    258KB

    -

    1

    1

    N  Y/N

    RTL8710BX

    Ameba Z

    AFW121T-EVB

    AFW121T

    WiFi

    ARM M4

    62.5M

    256KB

    -

    1

    1

    N  Y/N

    RTL8710CX

    Ameba Zii

    RTL8710CX-EVB

    AFM100T

    WiFi

    ARM M4

    100M

    256KB

    -

    3

    1

    N  N/N

    RTL8710CM

    Ameba Zii

    RTL8710CM-EVB

    AFM101T

    WiFi

    ARM M4

    100M

    256K+4M

    -

    3

    1

    N  N/N

    RTL8720CN

    Ameba Zii

    RTL8720CN-EVB

    AFM201T

    WiFi+BLE4.2

    ARM M4

    100M

    256KB

    Ble4.2

    2

    1

    N  N/N

    RTL8720CF

    Ameba Zii

    RTL8720CF-EVB

    AFM202T

    WiFi+BLE4.2

    ARM M4

    100M

    256KB

    Ble4.2

    2

    1

    N  N/N

    RTL8720CM

    Ameba Zii

    RTL8720CM-EVB

    AFM203T

    WiFi+BLE4.2

    ARM M4

    100M

    256KB

    Ble4.2

    2

    1

    N  N/N

    RTL8720CS

    Ameba CS

    RTL8720CS-EVB

    AFM301T

    WiFi+BLE5 Mesh

     M0+M4

    200M

    512KB

    Ble5.0 mesh

    2

    2

    Y  Y/Y

    RTL8721CSM

    Ameba CS

    RTL8721CSM-EVB

    AFM304T

    WiFi+BLE5 Mesh

     M0+M4

    200M

    512K+4M

    Ble5.0 mesh

    3

    2

    Y  Y/Y

    RTL8722CSM

    Ameba CS

    RTL8722CSM-EVB

    AFM303T

    WiFi+BLE5 Mesh

     M0+M4

    200M

    512K+4M

    Ble5.0 mesh

    4

    2

    Y  Y/Y

    RTL8720DN

    Ameba D

    RTL8720DN-EVB

    AFM401T

    2.4G+5G+BLE5

     M0+M4

    200M

    512K

    Ble5.0 mesh

    2

    1

    Y  Y/Y

    RTL8721DM

    Ameba D

    RTL8721DM-EVB

    AFM404T

    2.4G+5G+BLE5

     M0+M4

    200M

    512K+4M

    Ble5.0 mesh

    3

    2

    Y  Y/Y

    RTL8722DM

    Ameba D

    RTL8722DM-EVB

    AFM403T

    2.4G+5G+BLE5

     M0+M4

    200M

    512K+4M

    Ble5.0 mesh

    4

    2

    Y  Y/Y




    Intelligent electrical outlet
    Industrial control
    Intelligent home appliances
    Internet of things applications
    Thermal printer
    LED control card
    The POS




    Dimensions 86mm x72mm x12mm
    Weight  29g
    Battery Exclude
