Your present location:Home >> 2-Color EPD >> 1.02 inch mini partial refresh e-paper panel ultra-thin and ultra-light, GDEW0102T4

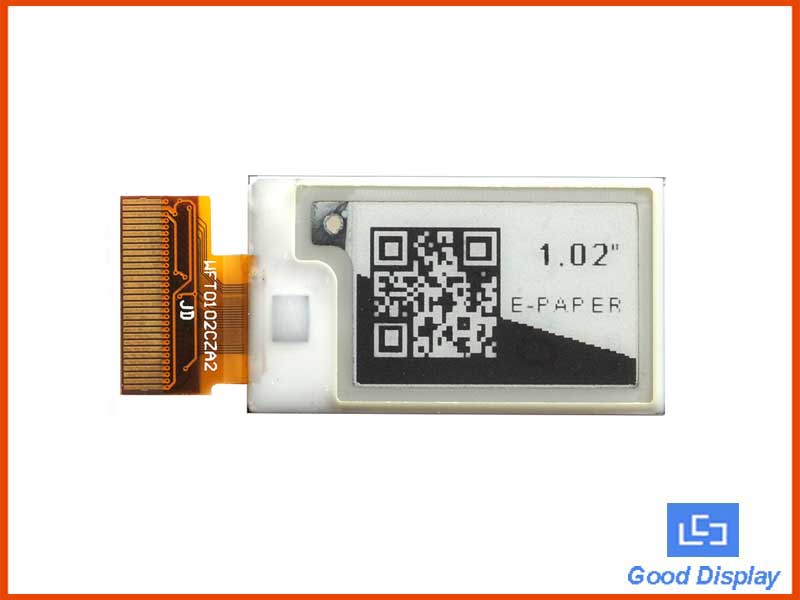

  • Product Name: 1.02 inch mini partial refresh e-paper panel ultra-thin and ultra-light, GDEW0102T4
  • Code: 00102-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 129

This is a 1.02 inch dot matrix e-paper display panel, 128x80 resolution, 30 pins FPC connection, communicating via SPI interface and IC driver with partial refresh. An integrated circuit contains gate bugger, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and boder are supplied with each panel.

In view of so many advantages: ultra low power consumption, ultra wide viewing angle, GDEW0102T4 is a very good choice for applications like smart tags, smart watch and other related products.




· Partial refresh
· Ultra-thin and ultra-light
· SPI interface, 30 pin connector
· Come with helpful development resources and manual (STM32 platform )






Part Number

GDEW0102T4

Size

1.02 inch

Resolution

128x80

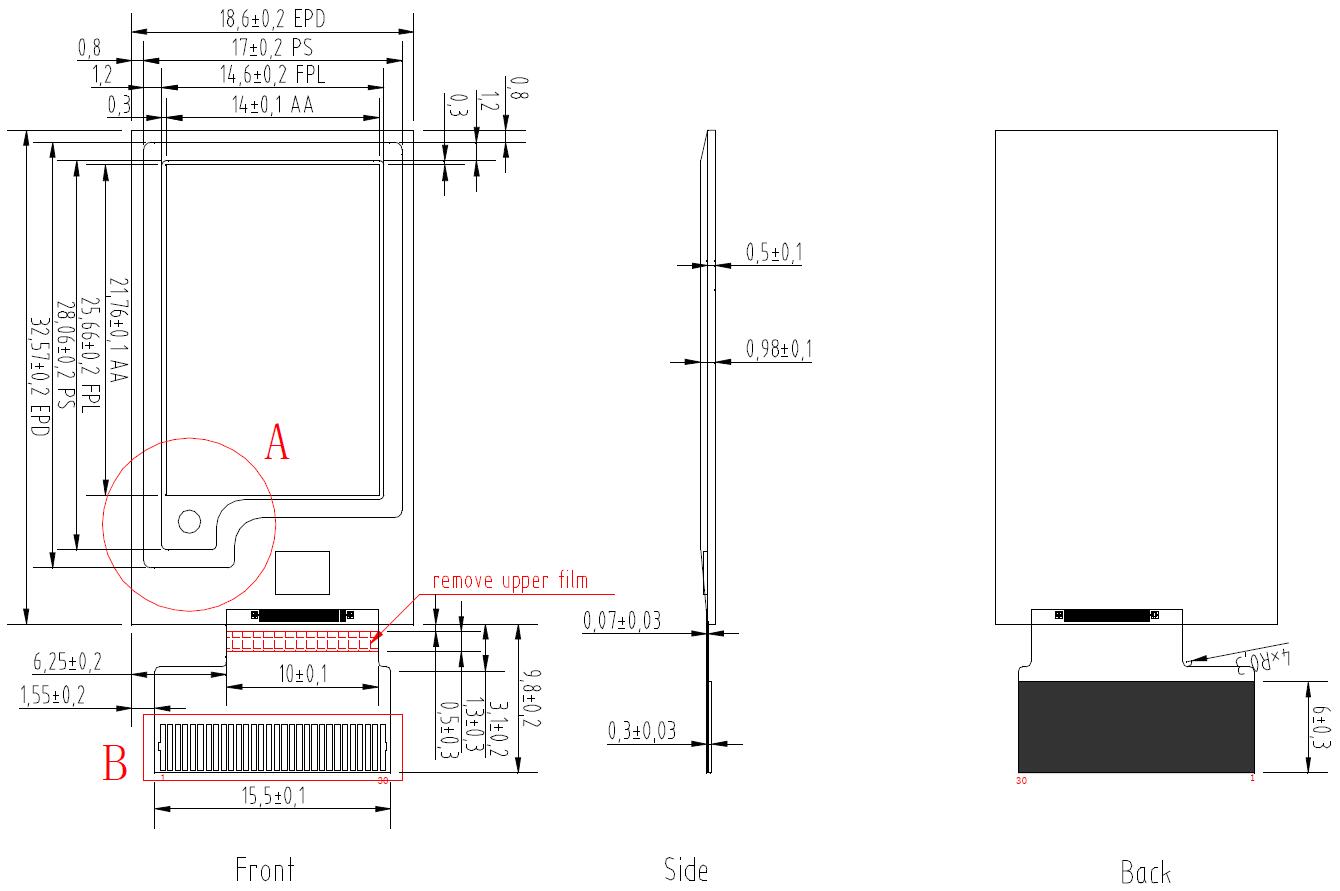

Outline Size(mm)

32.57x18.6x0.3

Active Size(mm)

21.76x14

Pixel Pitch(mm)

0.175x0.17

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~70℃

Connector

30 Pin

Color Black,White
Max Grayscale 2

Purchase Online

buyepaper /AliExpress











File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0102T4 Spec.

1.1

English

2019-12-20

2.2MB

IC Driver 1.0 English 2020-01-21 1.49MB
Picture Production and Bitmap Convert 1.0 English 2020-01-21 487.61KB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry

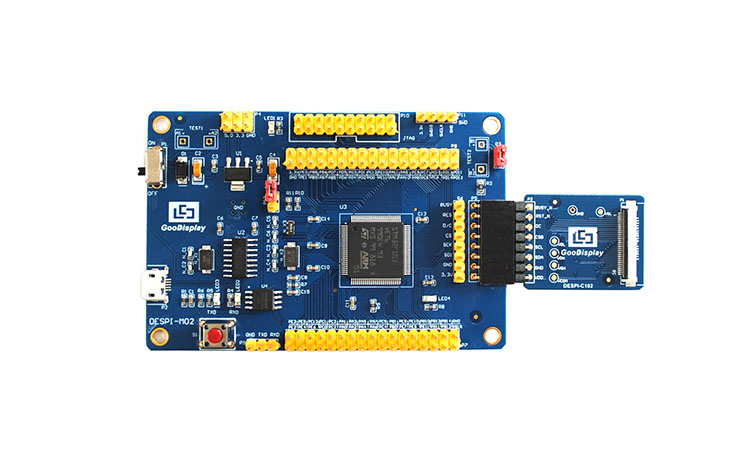

Development Board




File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI-102 Specification

                   1.0

               English

       2018-11-27

      673.62KB

DESPI-C102-SCH

                   1.0                English        2018-11-27         701.28KB
Sample code                1.0             English      2019-12-18       1.3MB
Partial Refresh Code                1.0              English      2019-12-18       2.3MB
 Readme(SPI interface Partial refresh considerations)                1.0              English      2019-11-19       0.84KB

 Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0            English      2018-11-28       462.58KB
Arduino Code               1.0             English      2019-12-18        14.59KB
Arduino Code Partial Refresh               1.0             English      2019-12-18         14.59KB








File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11












If you are interested in our products and would like to know more information, please click here to contact us→Inquiry
