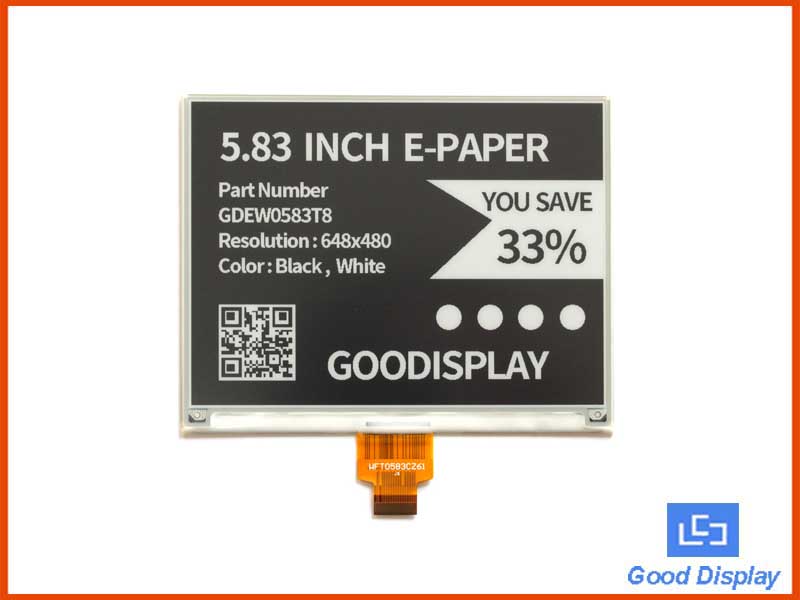

This is a 5.83 inch e-ink display with 648x480 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. The display resolution is higher than GDEW0583T7(600x448).
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0583T8 is a very good choice for applications like shelf label, smart home application, industrial instrument, electronic conference table card and other related products.
· Higher resoluiton(648x480) than GDEW0583T7(600x448).
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
|
Part Number
|
GDEW0583T8
|
|
Type
|
Dot Matrix
|
|
Resolution
|
648x480
|
|

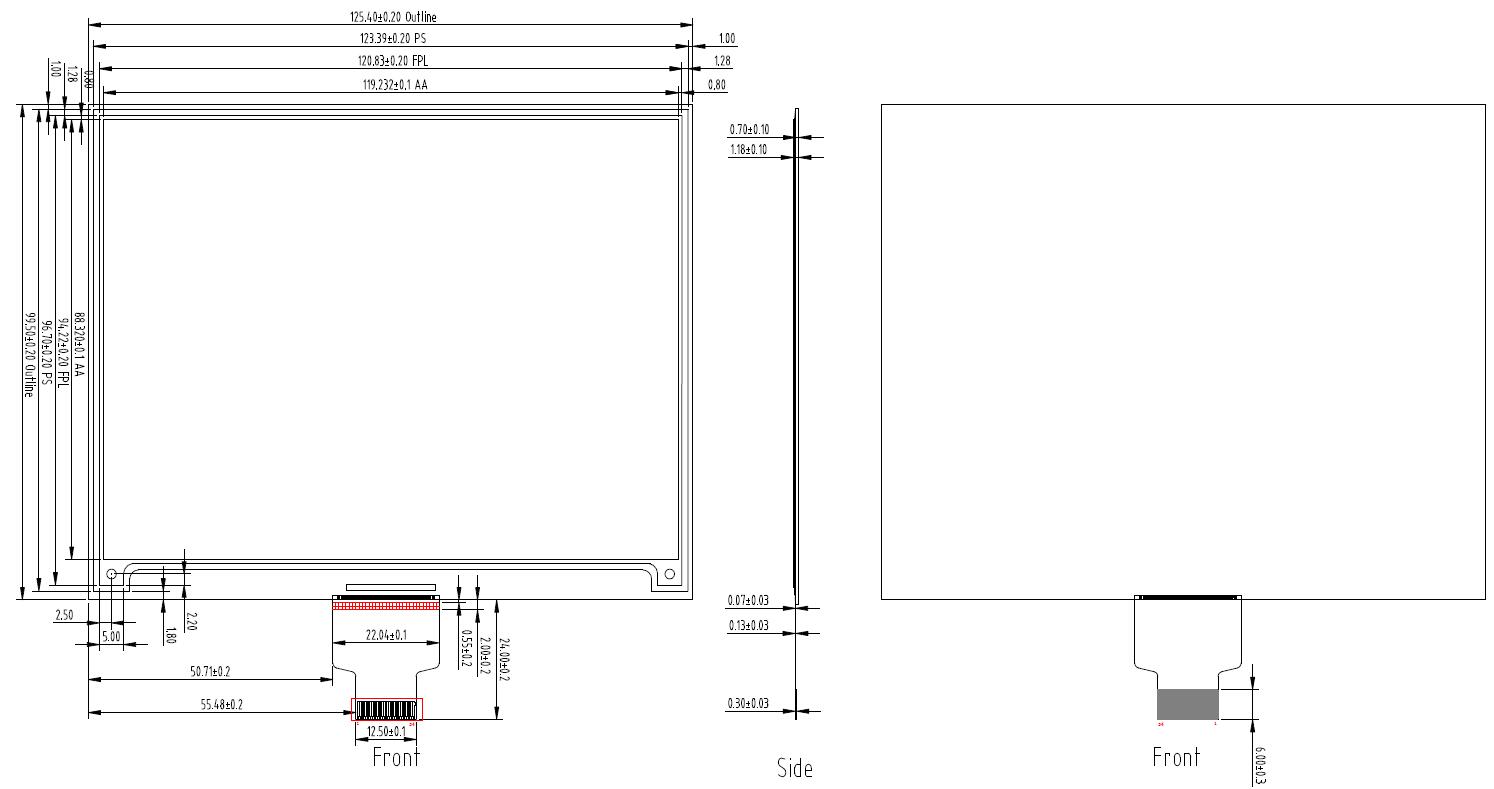

Outline Size(mm)
|
125.40x99.50x1.18
|
|
Active Size(mm)
|
119.232x88.320
|
|
Pixel Pitch(mm)
|
0.184x0.184
|
|
Operating Temp.
|
0℃~50℃
|
|
Storage Temp.
|
-25℃~70℃
|
|
Max Grayscale |
2 |
|
Color
|
Black, White
|
|
Interface |
SPI |
|
Power Supply |
3.3V |
|
Power consumption of the refresh(mW) |
26.4 |
|
Standby power consumption Pc(mW) |
0.0165 |
|
Time of refresh(s) |
4 |
|
Purchase Online |
buyepaper |
|
Part Number
|
Color
|
Resolution |
Feature
|
Full refresh time |
|
GDEW0583T7 |
Black, White |
600x448 |
SPI interface |
3s |
|
GDEW0583Z21 |
Black,White,Red |
600x448 |
Three colors,SPI interface |
15s |
|
GDEW0583C64 |
Black,White,Yellow |
600x448 |
Three colors,SPI interface |
25s |
|
GDEW0583Z83 |
Black,White,Red |
648x480 |
Three colors,High resolution |
12s |
|
GDEW0583T8 |
Black, White |
648x480 |
High resolution |
4s |
