Your present location:Home >> OLED Display >> 55 inch Large size high resolution transparent OLED display GDOB5500CT

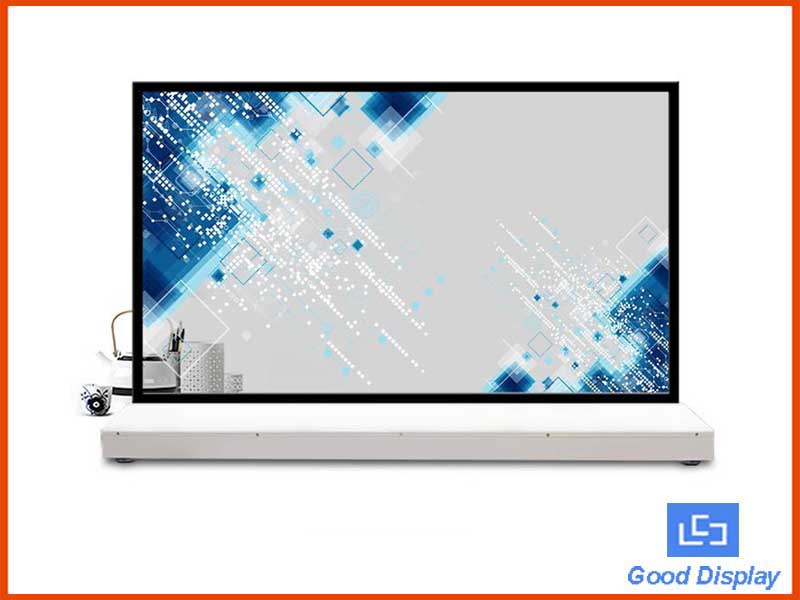

  • Product Name: 55 inch Large size high resolution transparent OLED display GDOB5500CT
  • Code: 91002
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 35

The 55-inch OLED display GDOB5500CT uses an organic light-emitting display with a light transmittance of 45%. Compared to traditional transparent liquid crystal displays, it has very high contrast, response speed and color saturation. It also has the advantages of high resolution, thin thickness, light weight, low energy consumption, long life and no radiation. This transparent OLED does not require a backlight, and its transparency is better than the traditional LCD backlight box-type transparent screen.

It is regarded as a promising new display product in the diversified flat panel display market. And it can be applied to a very wide range of business environments.








· It does not require a backlight.
· High resolution, thin thickness, light weight, low energy consumption, long life and no radiation.· It has an automatic temperature control system for more stable operation.
· Its light transmittance is 45%.









Part Number
GDOB5500CT
Diagonal Size
55 inch
Screen ratio
16:9
Resolution
1920 x 1080
Outline Dimension(mm)
1219.4 x 699.3 x 115.2
Brightness
500cd/m²
View Area(mm)
1209.6 x 680.4
Peripheral non-display area width(mm)
4.9(U)/14(D)/4.9(L)/4.9 (R)
View Angle
178°/178°(Horizontal/Vertical)
Response time
8ms
Contrast
1000000:1
Working Life(Typ)
60000 hours
Color saturation
10Bit (D)
Single input
HDMI/VGA/DVI/CVBS
Single output
CVBS
Operating Voltage
AC100-240V,50/60Hz
Control input/output
RS-232(RJ45)
Machine power consumption (W)
220
Purchase Online buyepaper






















File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDOB5500CT Specification

1.0

English

2019-10-21

990.49KB















If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
