Your present location:Home >> 3-Color EPD >> 7.5 inch three-color e-paper display high resolution E-ink large panel black white and yellow GDEW075C64
  • Product Name: 7.5 inch three-color e-paper display high resolution E-ink large panel black white and yellow GDEW075C64
  • Code: 07506
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 128

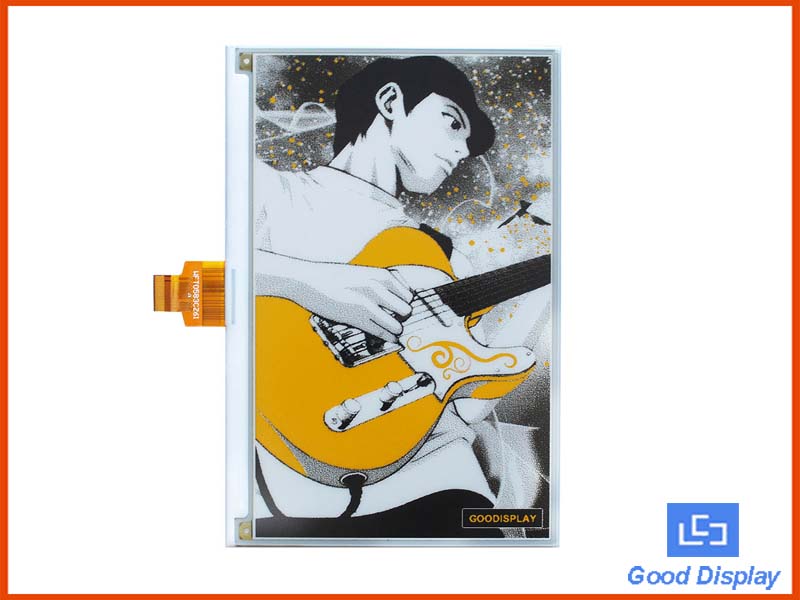

This is a 7.5 inch colorful e-ink display with 800x480 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. The display resolution is higher than GDEW075C21(640x384).In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW075C64 is a very good choice for applications like shelf label, smart home application, industrial instrument, electronic conference table card and other related products.
Note: All of 3-color epaper doesn't support partial refesh.




· Higher resoluiton(800x480) than GDEW075C21(640x384).
· Tri-color: black, whtie and yellow.
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266




Part Number

GDEW075C64

Type

Dot Matrix

Resolution

800x480

Outline Size(mm)

170.2x111.2x1.18

Active Size(mm)

163.2x97.92

Pixel Pitch(mm)

0.205x0.204

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector

24 Pin FPC, Pitch:0.5mm

Color Black,White,Yellow
Interface SPI
Power Supply 3.3V
Max Grayscale 2
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.71
Time of refresh(s) 38
Purchase Online buyepaper /AliExpress








Part Number

Color

Resolution

Feature

Full refresh time
GEDW075T8 Black, White 640x384 SPI interface 4s
GDEW075Z09 Black,White,Red 640x384 Three colors,SPI interface 16s
GDEW075C21 Black,White,Yellow 640x384 Three colors,SPI interface 18s
GEDW075T7 Black, White 800x480 Higher resolution 4s
GDEW075Z08 Black,White,Red 800x480 Higher resolution,Three colors 15s
GDEW075C64 Black,White,Yellow 800x480 Higher resolution,Three colors 38s
GDEH075Z90 Black,White,Red 880x528 Highest resolution,Three colors 22s









File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW075C64 Spec.

1.1

English

2019-11-08

2.2MB

IC Driver 1.0 English 2018-07-31 825.53KB
Connector Spec. 1.0 English 2018-07-31 1.77MB
Picture Production and Bitmap Convert 1.0 Englsh 2020-02-04 622.53KB





STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW075C64 STM32 Code               1.0            English      2019-10-22      2.32MB

Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DEArduino UNO for EPD_SCH                1.0            English      2018-11-28       462.75KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
GDEW075C64 Arduino Code               1.0             English       2019-10-22       5.68KB

Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW075C64 Rasberry Pi Code               1.0            English      2019-10-30       101.11KB










File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11
