Your present location:Home >> Monochrome LCD >> Transflective FSTN Mode LCD Module White YM12864-G35

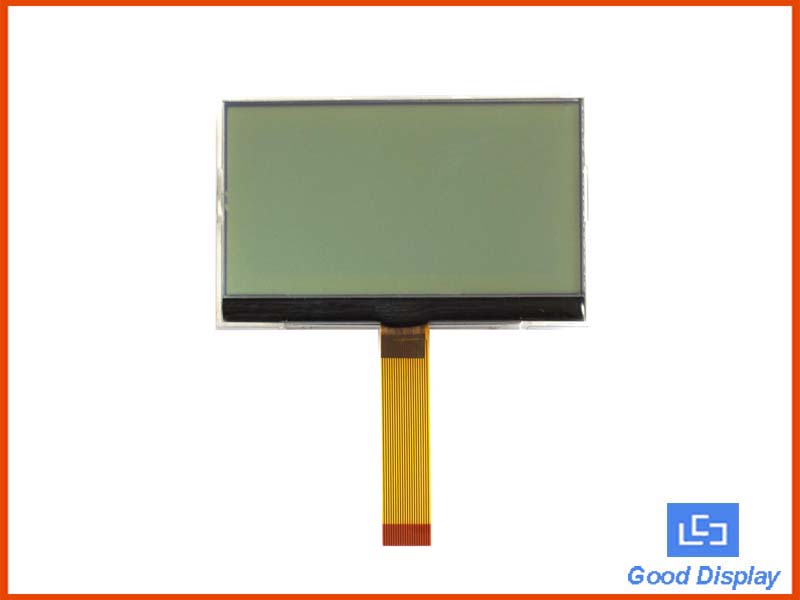

  • Product Name: Transflective FSTN Mode LCD Module White YM12864-G35
  • Code: 089-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 17





This is a graphic dot matrix LCD with 128x64 dots, 6 o'clock viewing direciton. Its backlight is white. And YM12864-G35 is FSTN Mode, transflective type, so can be used with backlight for working in dark surroudings. Operating temperature is -20~70℃, so it is suitable for industrial instrument.

Module number YM12864-G35
Display Contect 128x64

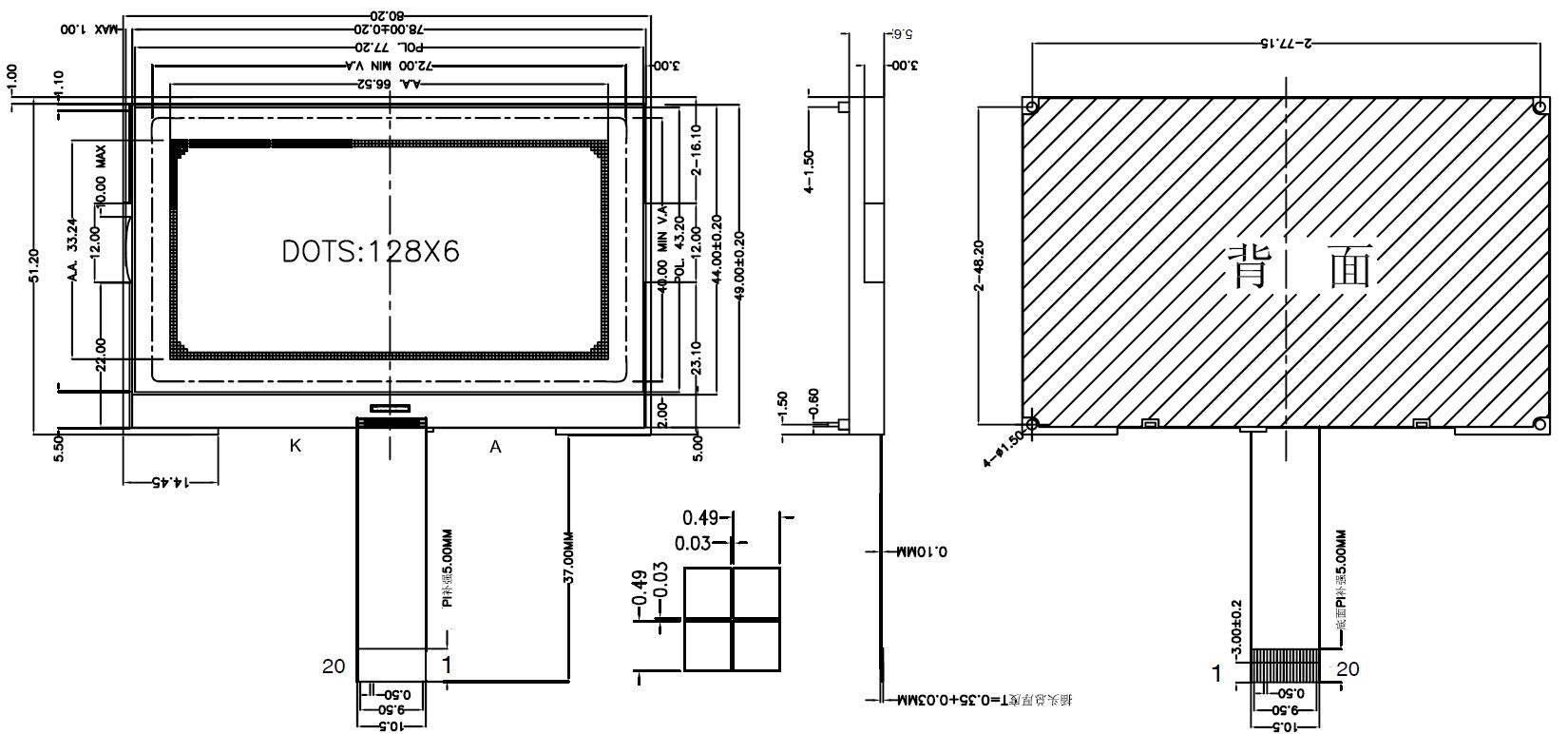

Outline Dimension 80.2mm x 51.2mm x 5.6mm
Active Area 66.52mm x 33.24mm
Driver IC ST7565R
View Direction 6 o'clock
Operating Temp. -20℃~70℃
Storage Temp. -30℃~80℃
Connector OG+PIN
Power Supply  3.0
LED color White
LCD color FSTN, Positive Mode





Operating temperature is -20~70℃
6 o'clock viewing direciton
FSTN Mode, transflective type
LED color is White.













File Type

Description (Downloadable)

Version

Language

Update Date

Size

YM12864-G35 Specification

1.0

English

2019-07-24

1.68MB
