Your present location:Home >> 3-Color EPD >> 3.71 inch Three colors red e-paper display module GDEW0371Z80
  • Product Name: 3.71 inch Three colors red e-paper display module GDEW0371Z80
  • Code: 0372
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 452

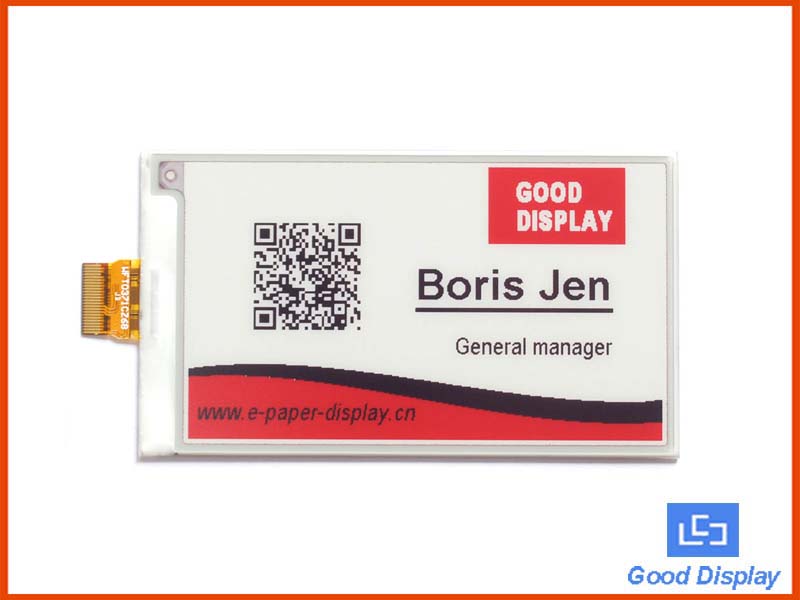

This is a 3.71 inch e-paper display with 416x240 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0371Z80 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
Note: All of 3-color epaper doesn't support partial refesh.









Three colors, black, white and red
416x240 resolution
The I2C signal master interface to read built-in temperature sensor.
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW0371Z80

Type

Dot Matrix

Resolution

416x240(DPI:130)

Outline Size(mm)

92.99x53x1.18

Active Size(mm)

81.536x47.04

Pixel Pitch(mm)

0.196x0.196

Operating Temp.

0~40℃

Storage Temp.

-25~60℃

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black,White,Red

Interface SPI
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.09
Time of refresh(s) 15

Purchase Online

buyepaper/AliExpress











Part Number

Color

Feature

Full refresh Time

T/P(optional)

GDEW0371W7

Black, White

4 Grayscale

       4S

GDEW0371Z80

Black,White,Red

Three colors

15S

   GDEH037Z01

       Black,White,Red        Three colors         16S         √










Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0371Z80 Spec.

1.0

English

2019-07-03

1.08MB

IC driver 1.0 English 2019-07-11 1.71MB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 569.72KB







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0371Z80 STM32 Code               1.0            English      2019-10-22      2.32MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board

Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DEArduino UNO for EPD_SCH                1.0            English      2018-11-28       462.75KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB

Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0371Z80 Rasberry Pi                1.0             English      2019-10-25        92.01KB

ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB





File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25

Precautions for E-paper Display

English 2019-03-11
