Your present location:Home >> 3-Color EPD >> 7.5 inch tri-color red high resolution e-paper display large e-ink screen module GDEW075Z08
  • Product Name: 7.5 inch tri-color red high resolution e-paper display large e-ink screen module GDEW075Z08
  • Code: 07502-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 381

This is a 7.5 inch colorful e-ink display with 800x480 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. The display resolution is higher than GDEW075Z09(640x384).

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW075T7 is a very good choice for applications like shelf label, smart home application, industrial instrument, electronic conference table card and other related products.





· Higher resolution(800x480) than GDEW075Z09(640x384).
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· Come with helpful development resources and manual (STM32 platform )
· Available in COG package IC thickness 300um.






Part Number

GDEW075Z08

Type

Dot Matrix

Resolution

800x480

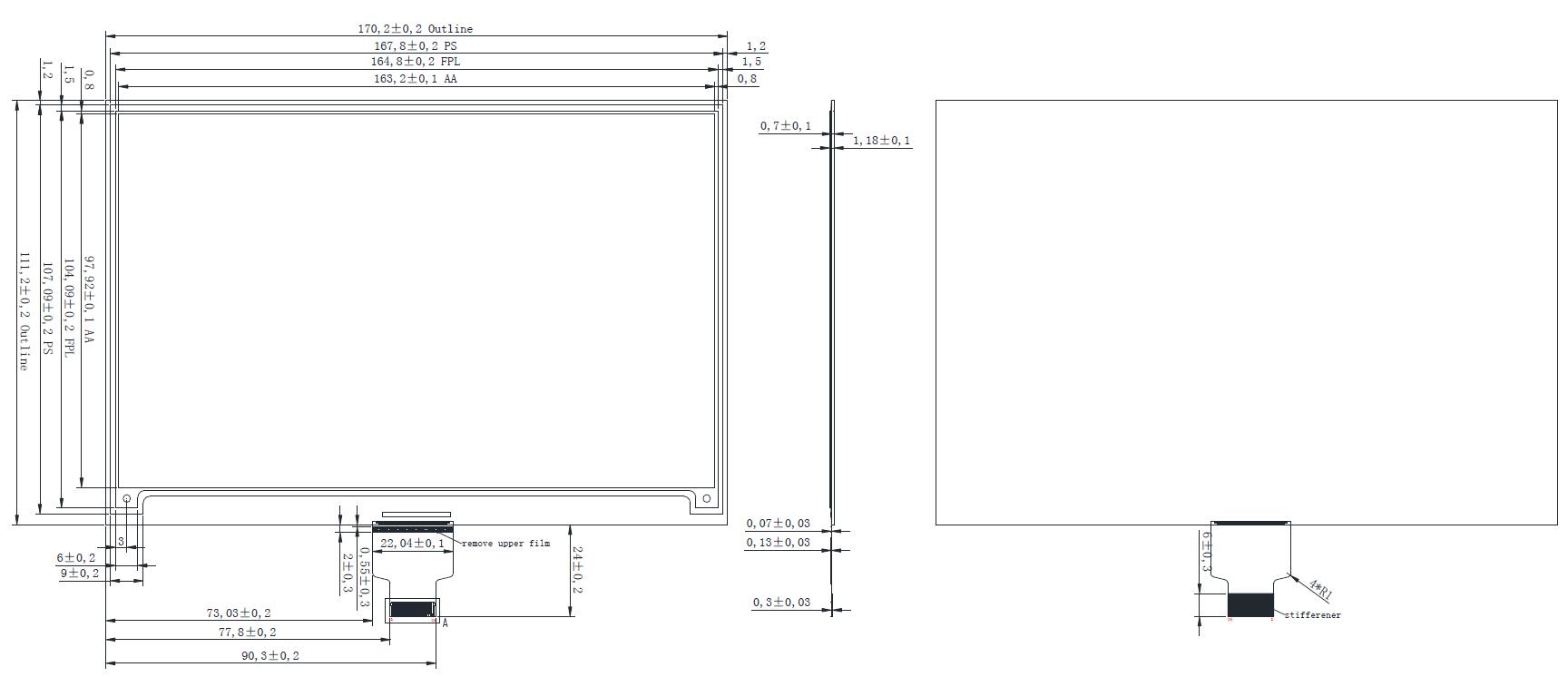

Outline Size(mm)

170.2x111.2x1.18

Active Size(mm)

163.2x97.92

Pixel Pitch(mm)

0.205x0.204

Operating Temp.

0℃~40℃

Storage Temp.

-25℃~60℃

Connector

24 Pin FPC, Pitch:0.5mm

Color Black,White,Red
Interface SPI

Purchase Online

buyepaper   /    Amazon











Part Number

Color

Resolution

Feature

Refresh time
GEDW075T8 Black, White 640x384 SPI interface 4s
GDEW075Z09 Black,White,Red 640x384 Three colors,SPI interface 16s
GDEW075C21 Black,White,Yellow 640x384 Three colors,SPI interface 18s
GEDW075T7 Black, White 800x480 Higher resolution 4s
GDEW075Z08 Black,White,Red 800x480 Higher resolution,Three colors 15s
GDEW075C64 Black,White,Yellow 800x480 Higher resolution,Three colors --







File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW075Z08 Spec.

2.1

English

2019-08-08

2.2MB

IC Driver 1.0 English 2019-07-08 1.86MB
Connector Spec. 1.0 English 2018-07-31 1.77MB
Picture Production and Bitmap Convert 1.0 English 2019-08-15 591.1KB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW075Z08 STM32 Code               1.0            English      2019-06-19      2.32MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board / With Connect Board



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-01-25

      673.62KB

DESPI-C01-SCH

                   1.0                English        2018-01-25         701.28KB
DESPI-M01-SCH                    1.0                English        2018-01-25         1.2MB
GDEW075Z08 Rasberry Pi Code                1.0             English      2019-09-27       100.83KB









File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions for Tri-color E-paper Display English 2019-03-11
