Your present location:Home >> TFT LCD Panel >> 5" LCD display with T/P - GTT050RDH03
  • Product Name: 5" LCD display with T/P - GTT050RDH03
  • Code: 7050-2
  • Quantity in stock: Yes
  • Retail price: 31.50USD
  • Unit of measurement: pcs
  • Net weight:
  • Views : 1327

Size 5 inch
Resolution 800x480
Display scale 15:9
Response 20(Tr+Td) ms
Luminance 250 nits
Contrast Ratio 600 :1
Color 16.7M(8bit)
Technology a-Si
Interface ParallelRGB(1ch,8bit)
Drive-screen voltage 3.3V
Pixel Pitch 0.045x0.135 mm

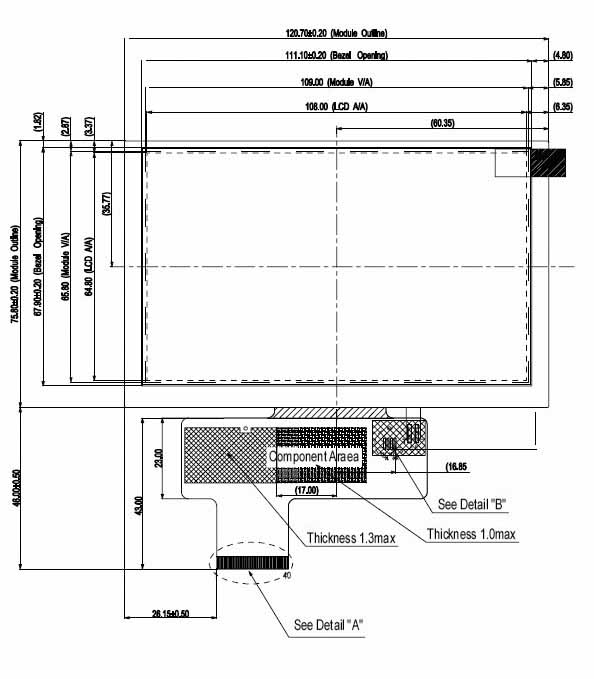

Active Area 108.00x64.80 mm
Outline 120.70x75.80x3.10 mm
Net Weight 63g
Viewing Angle 70/70/50/70 (U/D/L/R)
Backlight LED
Lamp Number 7S2P pcs
Life Time of Lamp 20K Hours
Operation Temperature -20oC ~ 70oC
Operation Humidity --
Storage Temperature -30oC ~ 80oC
Storage Humidity --
Applications Handheld TV,MP4 PMP,MID UMPC
Touch Screen GDT4W0500D-RDH03(BR) (Option)

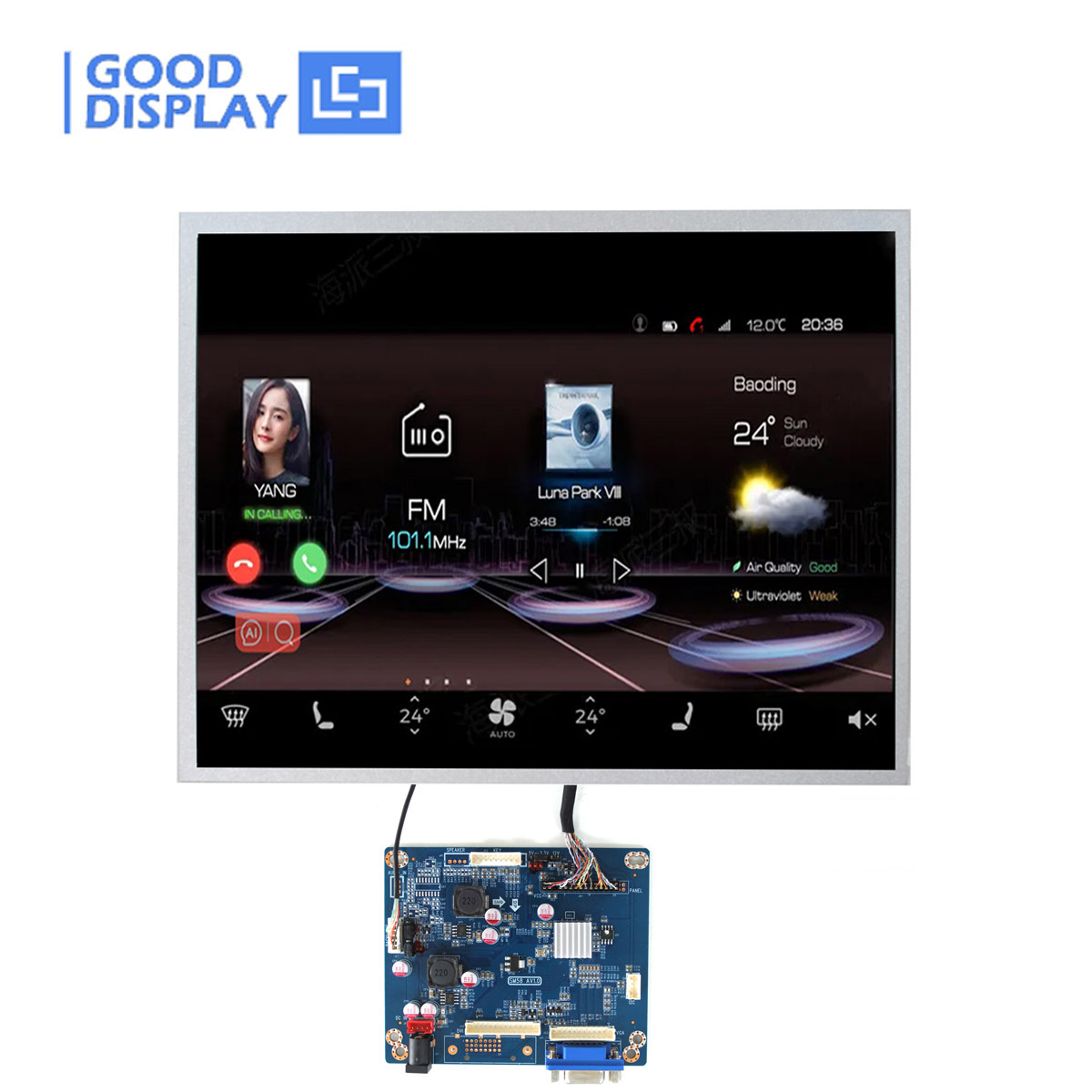

We can provide the matched driver board for VGA/Video input.


Please see following important safety instructions
1. The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD, audio amplifier, etc. Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.




File Type
Documents Name (Downloadable)
Update Date
File Size









How do your factory control the quality?

quality assurance--.jpg




All Products of Good Display can be provided in small quantities with long term supply.
Products are complete, with quality assurance.
Welcome to order.


download attachments : GTT050RDH03 【查看】
