Your present location:Home >> 2-Color EPD >> 3.71 inch e-paper display e-ink screen panel 4 grayscale GDEW0371W7

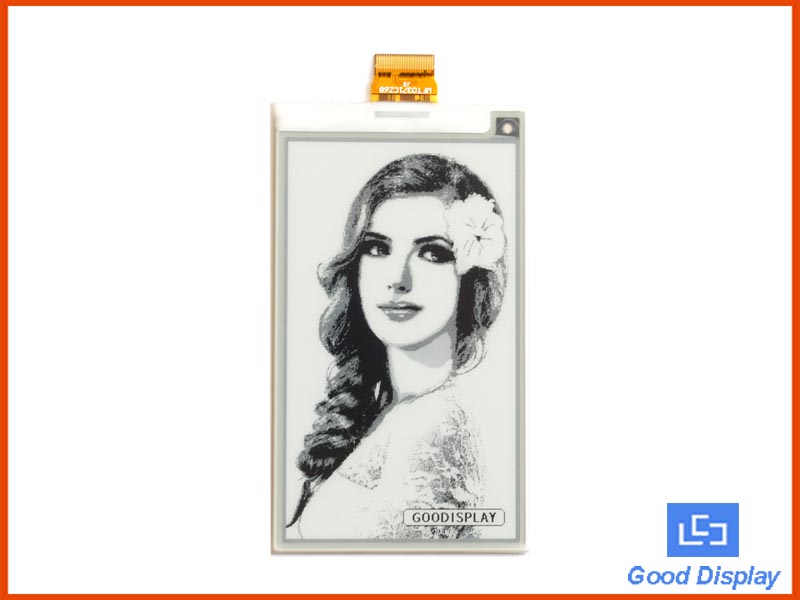

  • Product Name: 3.71 inch e-paper display e-ink screen panel 4 grayscale GDEW0371W7
  • Code: 0371
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 1875



This is an E ink E paper display panel, 3.71 inch, 416x240 resolution, 4 Grayscale24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0371W7 is a very good choice for applications like:

· Shelf label
· Smart tags
· Smart home application
· Industrial instrument
· Smart cards
· And other related products.




·  416x240 resolution
·  4 Grayscale
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266





Part Number

GDEW0371W7

Type

Dot Matrix

Resolution

416*240(DPI:130)

Outline Size(mm)

92.99*53*1.18

Active Size(mm)

81.536*47.04

Pixel Pitch(mm)

0.196*0.196

Operating Temp.

0~50℃

Storage Temp.

-25~70℃

Connector 24 Pin FPC, Pitch:0.5mm
Interface SPI

Color

Black,White

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.09
Time of refresh(s) 4
Max Grayscale 4

Purchase Online

buyepaper / Amazon  /AliExpress









Part Number

Color

Feature

Full refresh Time

T/P(optional)

GDEW0371W7

Black, White

4 Grayscale

       4S

GDEW0371Z80

Black,White,Red

Three colors

15S

   GDEH037Z01        Black,White,Red        Three colors         16S         √






File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW0371W7 Specifications

2.0

English

2019-07-22

1.17MB

IC Driver 1.0 English 2020-01-08 1.71MB
 Picture Production and Bitmap Convert for GDEW0371W7 1.0 English 2018-10-17 461.37KB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry









STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0371W7 STM32 Code               1.0            English      2019-10-22      2.32MB
4 Gray Sample Code               1.0            English      2019-08-16      1.66MB

If you want to buy the set: e-paper and matched demo, please click here: With Drive Board



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DEArduino UNO for EPD_SCH                1.0            English      2018-11-28       462.75KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
GDEW0371W7 Arduino Code               1.0             English       2020-02-14       10.67KB
 GDEW0371W7 Arduino 4Grayscale               1.0             English       2020-02-14       3.46KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW0371W7 Rasberry Pi                1.0             English       2019-10-25        82.25KB
Raspberry Pi Code-4 Gray                1.0             English       2020-02-21        151.7KB

ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB











File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11












If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
