Your present location:Home >> 2-Color EPD >> 2.6 inch e-paper display partial refresh 4 Grayscale e-ink screen GDEW026T0

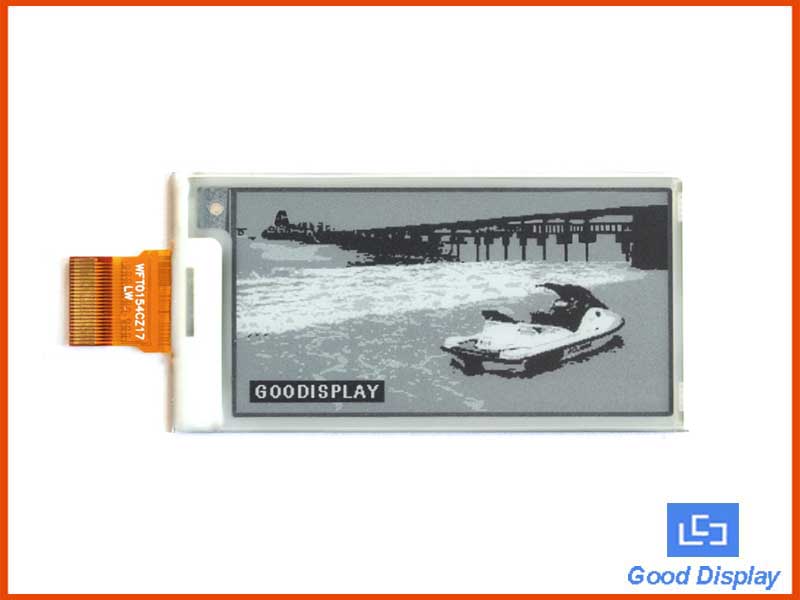

  • Product Name: 2.6 inch e-paper display partial refresh 4 Grayscale e-ink screen GDEW026T0
  • Code: 02601
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 895


This is an E ink E paper display panel, 2.6 inch, 296*152 resolution, 4 Grayscalesquare, 24 pins FPC connection, optional FPC
connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,
supports black and white. Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,
GDEW026T0 is a very good choice for applications like:

· Shelf label
· Smart tags
· Smart home application
· Industrial
· Instrument
· And other related products












· 4 Grayscale
· Support partial refresh, fast update and no flicker update.
· Keep displaying the last content when power down.
· Reflect type, sunlight readable.
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino











Part Number

GDEW026T0

Type

Dot Matrix

Resolution

296*152

Outline Size(mm)

71.82*36.3*1.18

Active Size(mm)

60.09*30.7

Pixel Pitch(mm)

0.203*0.202

Operating Temp.

0~50C

Storage Temp.

—25~70C

Connector

24 Pin FPC, Pitch:0.5mm

Interface

SPI

Color

Black,White

Current of the refresh(mA) 8
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Max Grayscale 4
Purchase Online

buyepaper   /    Amazon









Part Number

Color

Resolution

Feature

Refresh time

GDEW026T0 Black, White

296x152

Partial refresh, 4 Grayscale 3s
GDEW026Z39 Black,White,Red

296x152

Three colors 16s






File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW026T0 Specifications

1.0

English

2018-10-25

1.71MB

IC Driver 1.0 English 2017-08-11 623.03KB
Connector Spec. 1.0 English 2017-08-11 1.77MB

If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry







STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW026T0 STM32 Code               1.0            English      2019-10-22      2.32MB
Partial code               1.0            English      2019-04-30      2.01MB
Readme(SPI interface Partial refresh considerations)               1.0            English      2019-11-19      0.84KB



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
DEArduino UNO for EPD_SCH               1.0             English      2018-11-28       462.58KB
GDEW026T0 Arduino Code               1.0             English      2019-10-22        14.59KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW026T0 Rasberry Pi                1.0             English       2019-10-25        88.72KB










File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Product list-1 English 2018-09-29
Product list-2 English 2018-09-29
Product list-3 English 2018-09-29
RoHS English 2018-12-27

Warranty

English

2016-10-25
Precautions English 2019-03-11
