Your present location:Home >> 3-Color E-Paper >> 4.2 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW042C37

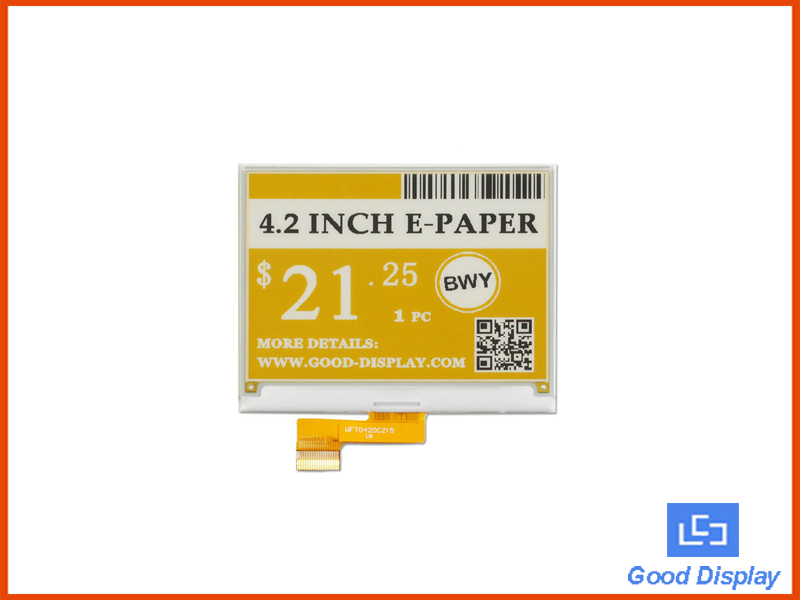

  • Product Name: 4.2 inch color e-paper display BWY three colors E ink panel black white and yellow GDEW042C37
  • Code: 04204
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 648








This is an E ink E paper display panel, 4.2 inch, 400x300 resolution, square, 24 pins FPC connection,
optional FPC connector, communicating via SPI interface, with embedded controller(COG package)
and on-chip stored waveform,  supports yellow, black, and white three-color.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight,
low current deep sleep mode. Also GDEW042C37 can be used in:

· Shelf label
· Smart tags
· Industrial instrument,
· Smart cards
· And other related products.





· Keeps displaying the last content when power down.
· Ultra low power consumption, basically power is only required for refreshing.
· SPI interface, for connecting with controller boards
· Comes with helpful development resources and manual (STM32 platform)
· Available in COG package IC thickness 300um.







Part Number

GDEW042C37

Screen Size

4.2 inch

Resolution

400(H)*300(V)

Outline Size(mm)

91.0(H)*77.0(V)*1.18(D)

Active Size(mm)

84.8(H)*63.6(V)

Pixel Pitch(mm)

0.212*0.212

Pixel Configuration

Square

Weight

13.76 + 0.5

Color

Black,White,Yellow

Buy Samples



(price without shipping fee)



  (price with shipping fee)















Size

Part Number

Color

Refresh Time

Resolution

Feature

4.2"

GDEW042T2

Black, White

6.2S

400*300

Partial refresh

GDEW042Z15

Black,White,Red

14.54S

400*300

Three colors

GDEW042C37

Black,White,Yellow

--

400*300

Three colors













Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW042C37 Specifications

1.5

English

2018-11-02

1.22MB

Sample Code 1.0 English 2017-12-21 1.39MB



Demo Kit

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB








File Type

Description (Click to see more)

Language

Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2017-08-16
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13

Warranty

English

2016-10-25







If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
