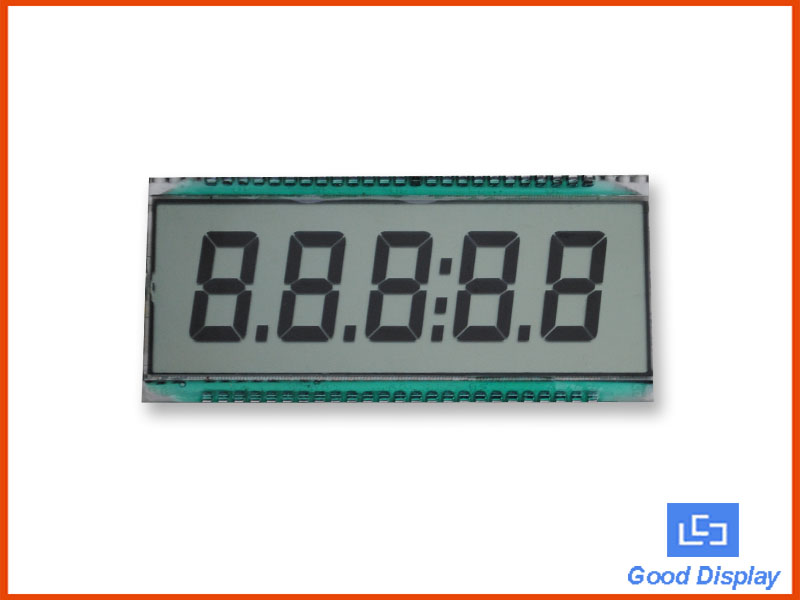

  • Product Name: 5 Digits LCD screen GDC03828
  • Code: GDC03828
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 103





Manufacturer GOOD DISPLAY
Part Number GDC03828

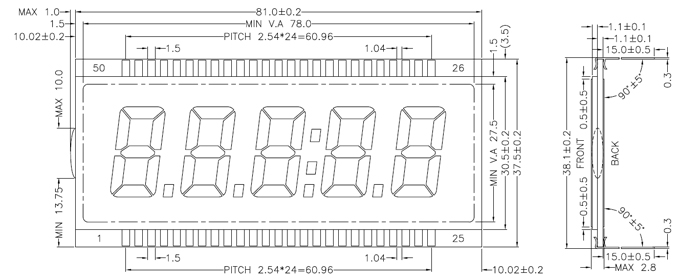

Outline Dimension 81.0×37.5×2.8mm
Active Area 78.0×27.5mm
Viewing Direction 12:00 o'clock
Backlight Color White (Optional)
Operating Voltage 5.0V

Operating Temp

 -20℃—70℃

Storage Temp

-30℃—80℃

Drive method Static
Display Type TN Positive
Polarizer Mode Reflective/Transflective
