Your present location:Home >> BW Eink Display >> 1.43 inch e-paper display wearable graphic electronic paper screen GDEP014TT1

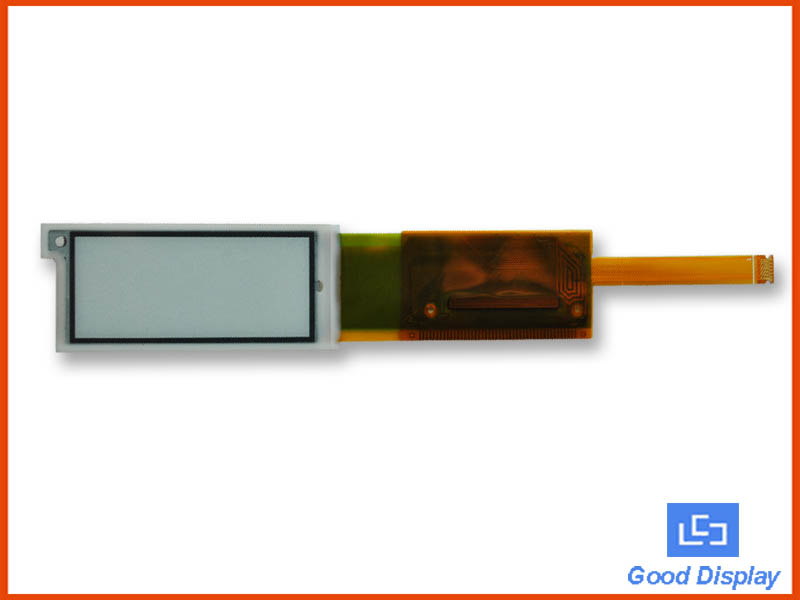

  • Product Name: 1.43 inch e-paper display wearable graphic electronic paper screen GDEP014TT1
  • Code: 01401
  • Quantity in stock: Yes
  • Retail price:
  • Unit of measurement: pcs
  • Net weight: 0.87±0.1
  • Views : 5269




GDEP014TT1 is a reflective electrophoretic flexible E Ink technology display module based on active matrix TFT and plastic substrate. The plastic substrate is protected by an outer covering, which is a part of the display. It has 1.43” active area with 128 x 296 pixels, the display is capable to display images at 2 gray levels (1 bits) depending on the display controller and the associated waveform file it used.






Flexible
High contrast reflective/electrophoretic technology
128x296 display
High reflectance
Ultra wide viewing angle
Pure reflective mode
Bi-stable
Commercial temperature range
Hard-coated front-surface
Plastic substrate








Part Number

GDEP014TT1

Type

Dot Matrix

Screen Size

1.43 inch

Resolution

128*296 pixels

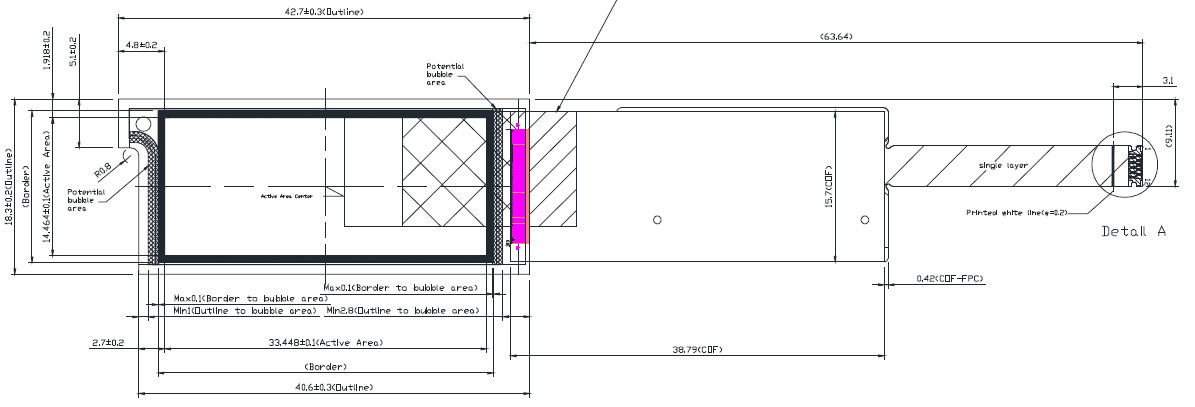

Outline Size(mm)

18.3*42.7*0.607

Active Size(mm)

14.464*33.448

Pixel Pitch(mm)

0.113*0.113

Operating Temp.

0°C~50°C

Storage Temp.

-25°C~70°C

Connector

12 Pin FPC, Pitch:0.25mm

Max Grayscale

2

Color

Black,White

Moule Weight

0.87±0.1g

Buy Samples

(price without shipping fee)



  (price with shipping fee)





More Flexible E-paper Displays ...









File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEP014TT1 Specifications

1.0

English

2015-10-29

602.13KB



The Principle and Advantage of E-Paper

Matrix E-ink Display -- FAQ

Matrix E-ink Display -- FAQ Pt.2

Warranty











If you are interested in our products and would like to know more information, please don't hesitate to contact us and click hereInquiry















Size

Part Number

Color

Refresh Time

Resolution

Feature

1.02”

GDEW0102I4F

Black, White

--

128*80

Flexible

1.43”

GDEP014TT1

Black, White

--

296*128

Flexible

1.54”

GDEH0154D27FL

Black, White

6.29S

200*200

Partial refresh/Frontlight

GDEM0154E97LT

Black, White

2.15S

152*152

Ultra low temperature

GDEW0154Z17

Black,White,Red

3.49S

152*152

Three colors

2.13”

GDEW0213I5F

Black, White

--

212*104

Flexible/Partial refresh

GDEW0213V7LT

Black, White

--

212*104

Ultra low temperature

GDEW0213Z16

Black,White,Red

10.53S

212*104

Three colors

GDEW0213C38

Black,White,Yellow

--

212*104

Three colors

2.6”

GDEW026T0

Black, White

2.62S

296*152

Partial refresh

2.7”

GDEW027W3-T

Black, White

2.3S

264*176

Partial refresh/touch screen

GDEW027C44-T

Black,White,Red

15.91S

264*176

Three colors/touch screen

2.9”

GDEW029Z10

Black,White,Red

14.12S

296*128

Three colors

GDEH029D56LT

Black, White

2.83S

296*128

Ultra low temperature

GDEW029I6F

Black, White

--

296*128

Flexible/ Partial refresh

3.71”

GDEW0371W7

Black, White



416*240

Partial refresh

4.2”

GDEW042T2

Black, White

6.2S

400*300

Partial refresh

GDEW042Z15

Black,White,Red

14.54S

400*300

Three colors

4.3”

GDE043A2

Black, White

--

800*600

parallel

5.83”

GDEW0583T7

Black, White

1.12S

600*448

SPI

6.0”

GDE060BAFL-T

Black, White

--

800*600

Parallel/Touch/Frontlight

GDE060F3

Black, White

--

1024*758

Parallel/High Resolution

7.5”

GDEW075Z09

Black,White,Red

14.87S

640*384

Three colors

8.0”

GDEW080T5

Black, White

--

1024*768

parallel

9.7”

GDEP097TC2

Black, White

--

202.8×139.425

parallel

12.48”

GDEW1248T3

Black, White

--

1304*984

SPI/Large size

13.3”

GDEP133UT1

Black, White

--

1600x1200

parallel/Large size

31.2”

GDEP312TT2-D

Black, White

--

2560*1440

parallel/Large size



  • Commentator: Olexandr
  • Gender: Mr.
  • Commenting time:2017.01.11
  • Comment: Hello,
    Could you provide, please, a reference circuit for powering the LCD? And also the commands for the driver( which driver? )
    Thank you
  • Commentator: Michal Sicner
  • Gender: Mr.
  • Commenting time:2016.12.09
  • Comment: Hi could you offerr also some larger flexible display solution? I am looking forrward to 3 inches, 200x300 resolution. Partial update required.
  • Reply: ok
