  • Product Name: 2.4" TFT Module GD24TWD
  • Code: 8024
  • Quantity in stock: Yes
  • Retail price: 31.5USD
  • Unit of measurement: pcs
  • Net weight:
  • Views : 4296


GD24TWD VER:2.00 T24P138 color digital tft lcd module is composed by GD24TWD VER;2.00 driver board
And GT T24P138 LCD panel , it can input CVBS signal . with PAL and NTSC system. Button control method , with
OSD menu control . it is mainly used for video door phone or other display electronic equipments.




(Lastest type,Buy it now!!!)

1 LCD display size                                2.4 inch
2 LCD aspect ratio 4:3
3 backlight LED
4 Brightness                                    250 cd/m2
5 Resolution                                                        480 x (RGB) x 234
6 View angle(U/D/L/R) 10/30/40/40
7 Contrast 500:1(Contrast)
8 Input signal VIDEO
9 System: PAL/NTSC(automatic identifying and converting)
10 LCD screen dimension                  55.2(W)x47.55(H)x2.9(D)
11 Active Area(mm)                          48.0(H)x35.685(V)
12 Driver board imension                              50.0(W)x50.0(H)x7.0(D)
13 Working voltage(Power supply <=0.3VP-P) Min:DC9V;T:DC12V;Ma x :DC18V (5V Option)
14 Working current(DC 12V power supply) DC150mA±20mA
15 Power consume 1.8W(TYP)
16 Starting time 2.0ms
17 Operation temperature -10°C~60°C
18 Storage temperature -20°C~70°C
19 Relative humidity 5~95%RH

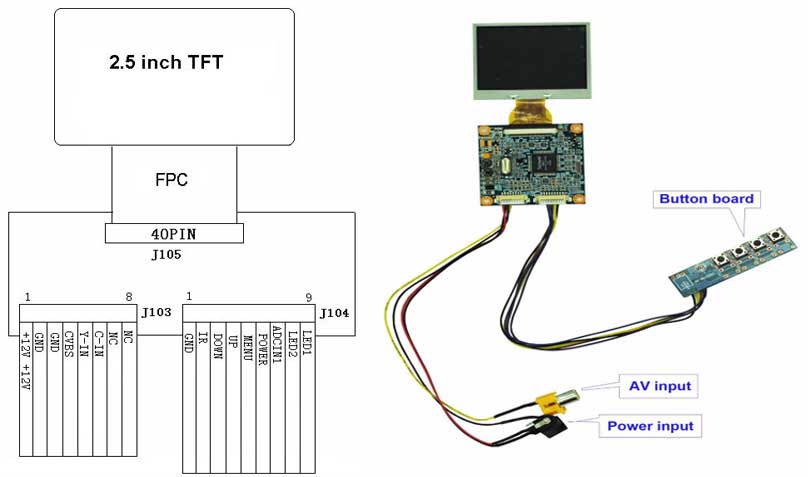

Wiring Diagram

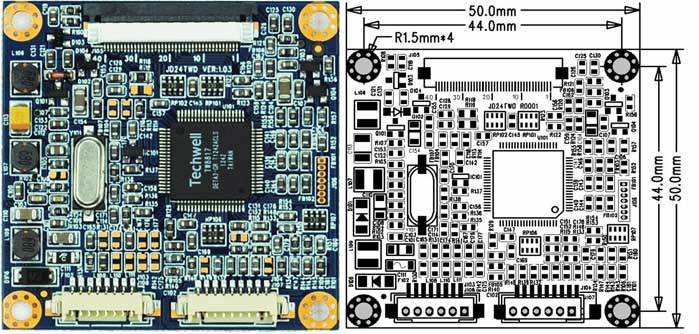

PCBA   (A/D board)



Please see following important safety instructions
1. The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD, audio amplifier, etc. Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.
