Your present location:Home >> Monochrome LCD >> Transflective STN COB LCD Module Yellow-Green/Blue-White YM12864J

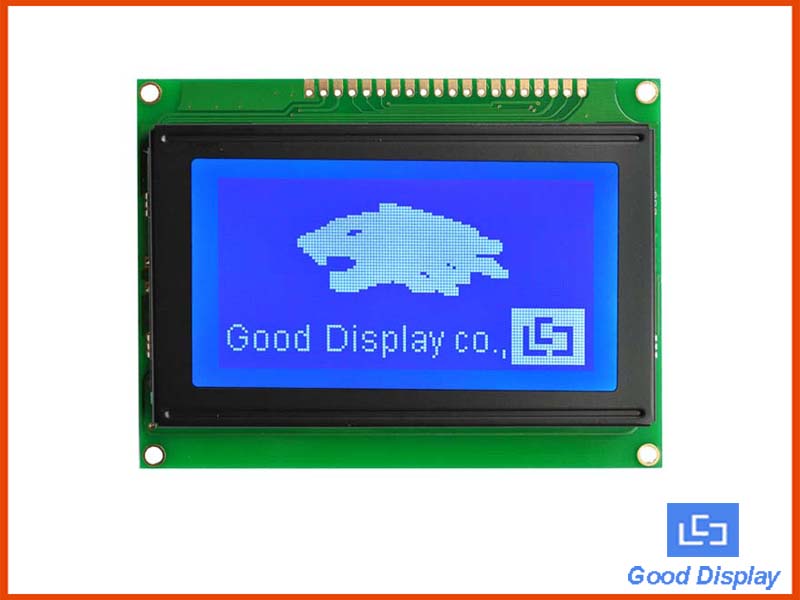

  • Product Name: Transflective STN COB LCD Module Yellow-Green/Blue-White YM12864J
  • Code: 089
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 530



This is a graphic dot matrix LCD with 128x64 dots, 6 o'clock viewing direciton. It's LED color is Yellow-Green/Blue-White. STN Mode, transflective type, so can be used with backlight for working in dark surroudings. Operating temperature is -20~70℃, so it is suitable for industrial instrument.

Module number YM12864J
Display Contect 128x64

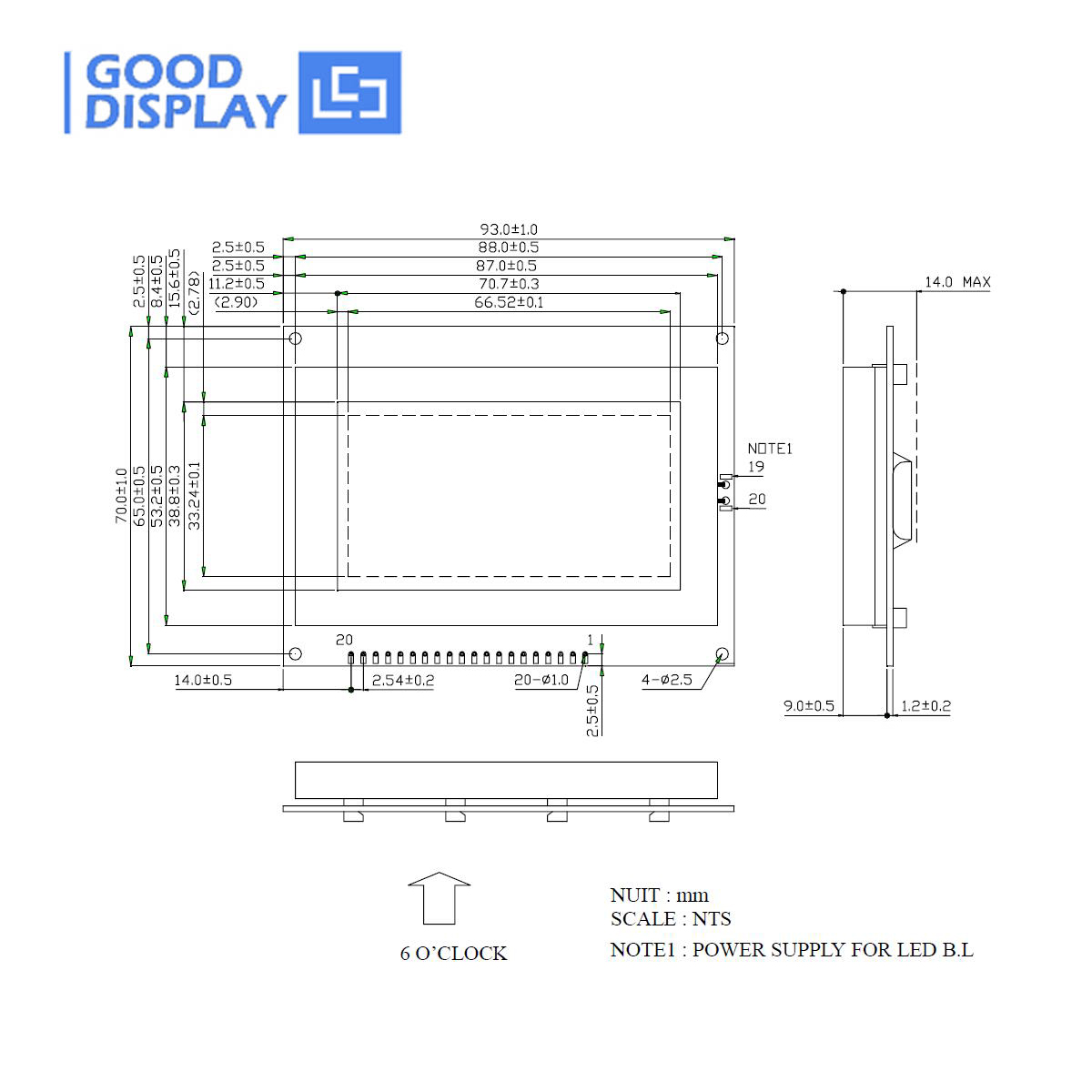

Outline Dimension 93.0(W)x70.0(H)x14.0T(MAX)mm
Active Area 70.7(W)x38.8(H)mm
Dot Size 0.48(W)x0.48(H)mm
View Direction 6 o'clock
Operating Temp. -20℃~70℃
Storage Temp. -30℃~80℃
Brightness 4.0 cd/m²(Min)
Power Supply  5.0V(Typ)
LED color Yellow-Green/Blue-White
LCD color STN Y-G Mode, Transflective





Operating temperature is -20~70℃
6 o'clock viewing direciton
STN Mode, transflective type
LED color is Yellow-Green/Blue-White







File Type

Description (Downloadable)

Version

Language

Update Date

Size

YM12864J Specification

1.0

English

2019-05-22

1.68MB









File Type

Description (Click to see more)

Language

Update Date
TFT LCD Display knowledge -- FAQ English 2011-05-11
Warranty English 2016-10-25
Precautions for LCD modules English 2019-07-10
RoHS English 2018-12-27
Banking information English 2017-02-08









If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry




download attachments : YM12864J specification 【查看】
