  • Product Name: 5.6inch Super-bright LCD, GDN-D567AT-GTI056TN52-U
  • Code: 8056
  • Quantity in stock: Yes
  • Retail price: 130.00USD
  • Unit of measurement: pcs
  • Net weight:
  • Views : 1630


(Buy it now!!!)

1 Size of panel  5.6 inch
2 Ratio of display  4:3
3 Backlight  LED
4 Brightness  1350cd/m2
5 Resolution  640 x (RGB) x480
6 View angel(U/D/L/R)  (50/70/70/70)
7 Dimension of panel  126.5( W)x100.0( H)x5.7(D)mm
8 Active Area dimension of panel     112.896(W)x84.672(H)
9 Structural dimension of PCB  105.0(W)x50.0(H)x7.8(D)
10 Working voltage Min: DC9V;Normal:DC12V;Ma x :DC18V
11 Working current  DC250mA±20mA
12 Power  3.0W(TYP)
13 Starting time  1.8 sec.
14 Operation temperature  -20~70°C
15 Storage temperature - 20~70°C
16 Relative humidity 5~95%RH


Wiring Diagram


GDN-D567AT-GTI056TN542-U .jpg

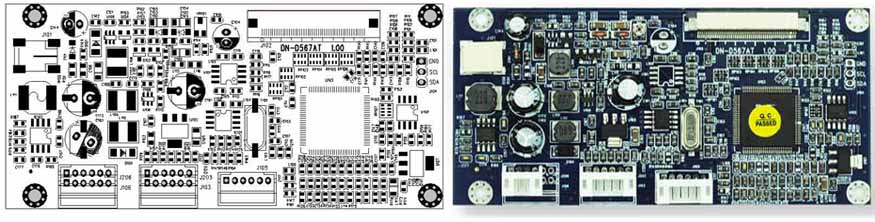

PCBA   (A/D board)


Please see following important safety instructions
1. The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD, audio amplifier, etc. Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.

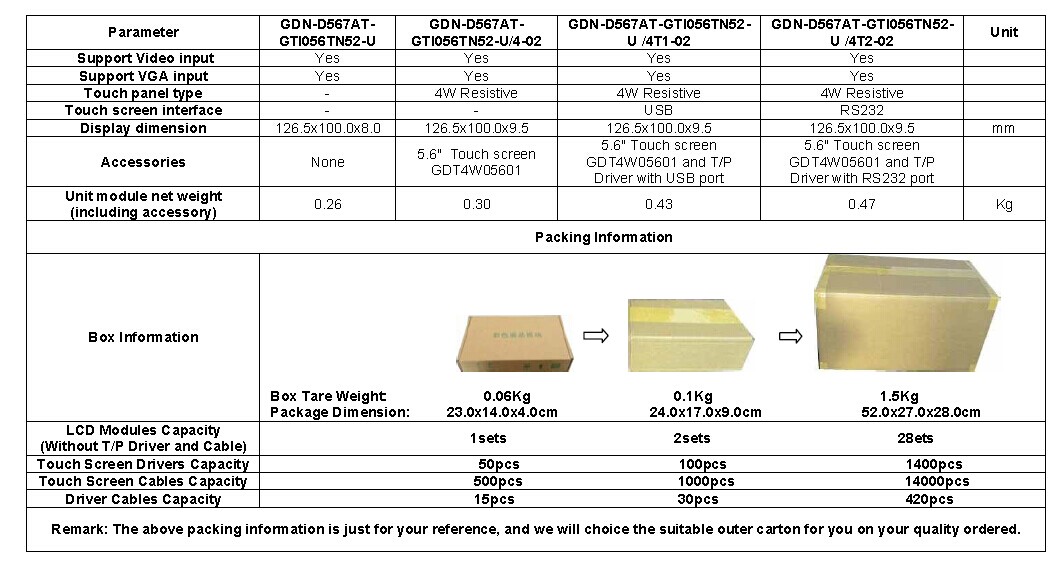

Ordering Information

GD567M03-GTI056TN542-U .jpg
