Your present location:Home >> Monochrome LCD >> 128X64 ultra-extended temp LCD with T/P YM12864P-70

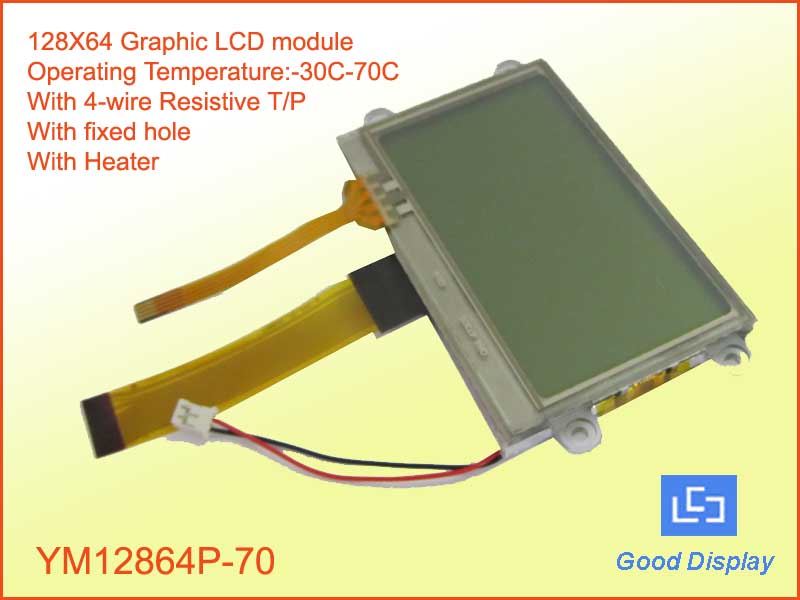

  • Product Name: 128X64 ultra-extended temp LCD with T/P YM12864P-70
  • Code: 007
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 1222


YM12864J-70 Graphic LCDs Family:

128x64 graphic LCD module

Built-in Sitronix  ST7567  controller

Available in several variations of backlight and polarizer  (minimum order may be required)

Wide temperature range: -35°C to 80°C

With 4-wires resistive Touch Screen (Option)

With ITO glass heater, the lowest operatiing temperature is -35°C

With fixed hole.

RoHS Compliant


Manufacturer GOOD DISPLAY
Part Number YM12864P-70
Dot Format 128X64

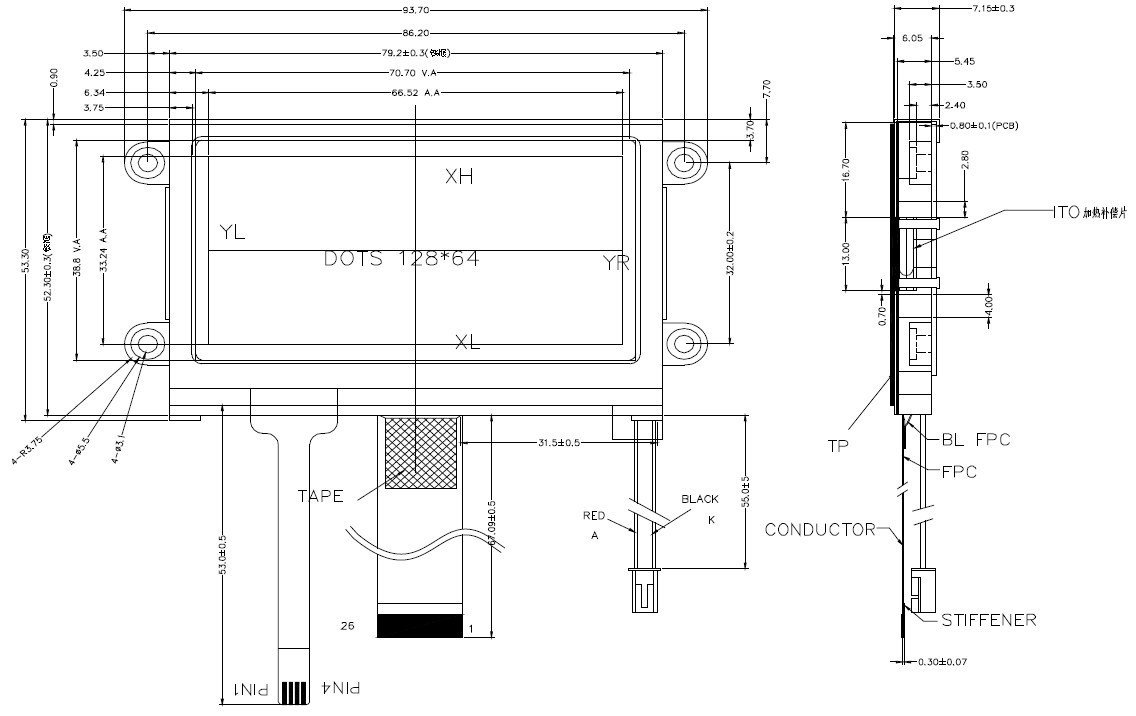

Outline Dimension 93.7 (W) x 51.3 (H) x 7.6 (D)mm
View Area(W×H) 70.7 (W) x 38.8 (H) mm
Dot Size(W×H) 0.48 (W) x 0.48 (H) mm

Operating Temp

Extended temp LCD:-35 to 70℃

Storage Tempe

Normal temp LCD:-40 to 90℃

Dot Pitch(W×H) 0.52 (W) x 0.52 (H)mm
Operating voltage 3.3V
Backlight LED
IC Packaging COG
Net Weight 64g
LCD Mode STN Yellow-green mode, Positive







File Type

Description (Click to see more)


Update Date
TFT LCD Display knowledge -- FAQ English 2011-05-11
Warranty English 2016-10-25
Precautions for LCD modules English 2019-07-10
RoHS English 2018-12-27
Banking information English 2017-02-08






If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry

download attachments : YM12864P-70 Specification 【查看】
