Your present location:Home >> 2-Color EPD >> 11.6 inch large size e-ink screen module SPI interface resolution 960x640, GDEH116T91
  • Product Name: 11.6 inch large size e-ink screen module SPI interface resolution 960x640, GDEH116T91
  • Code: 11601
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 73

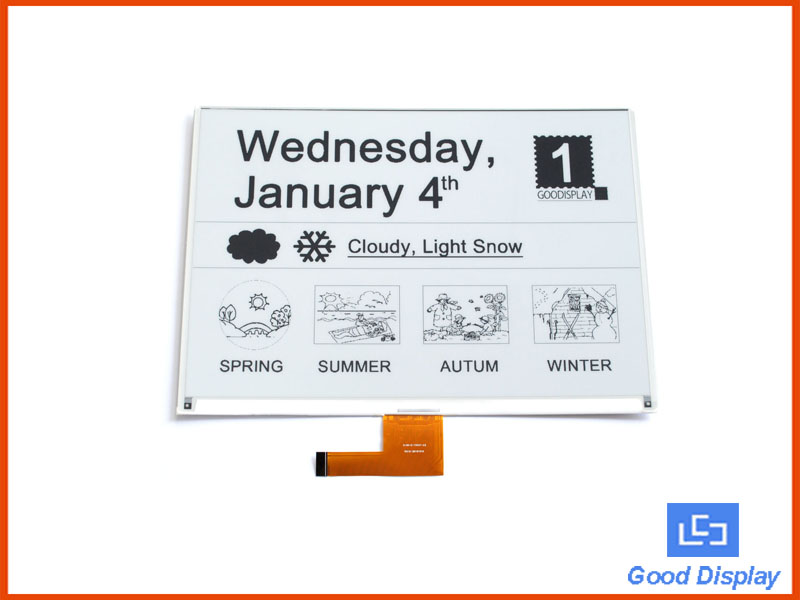

This is a 11.6 inch e-ink display with 960x640 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white. The I2C signal master interface to read external temperature sensor/built-in temperature sensor.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH116T91
is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and
other related products.











· SPI interface, 24 pin FPC
· 960x640resolution
· I2C signal master interface to read external temperature sensor/built-in temperature sensor.
· SPI interface, for connecting with controller boards
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Raspberry Pi / ArduinoESP8266









Part Number

GDEH116T91

Type

Dot Matrix

Resolution

960x640

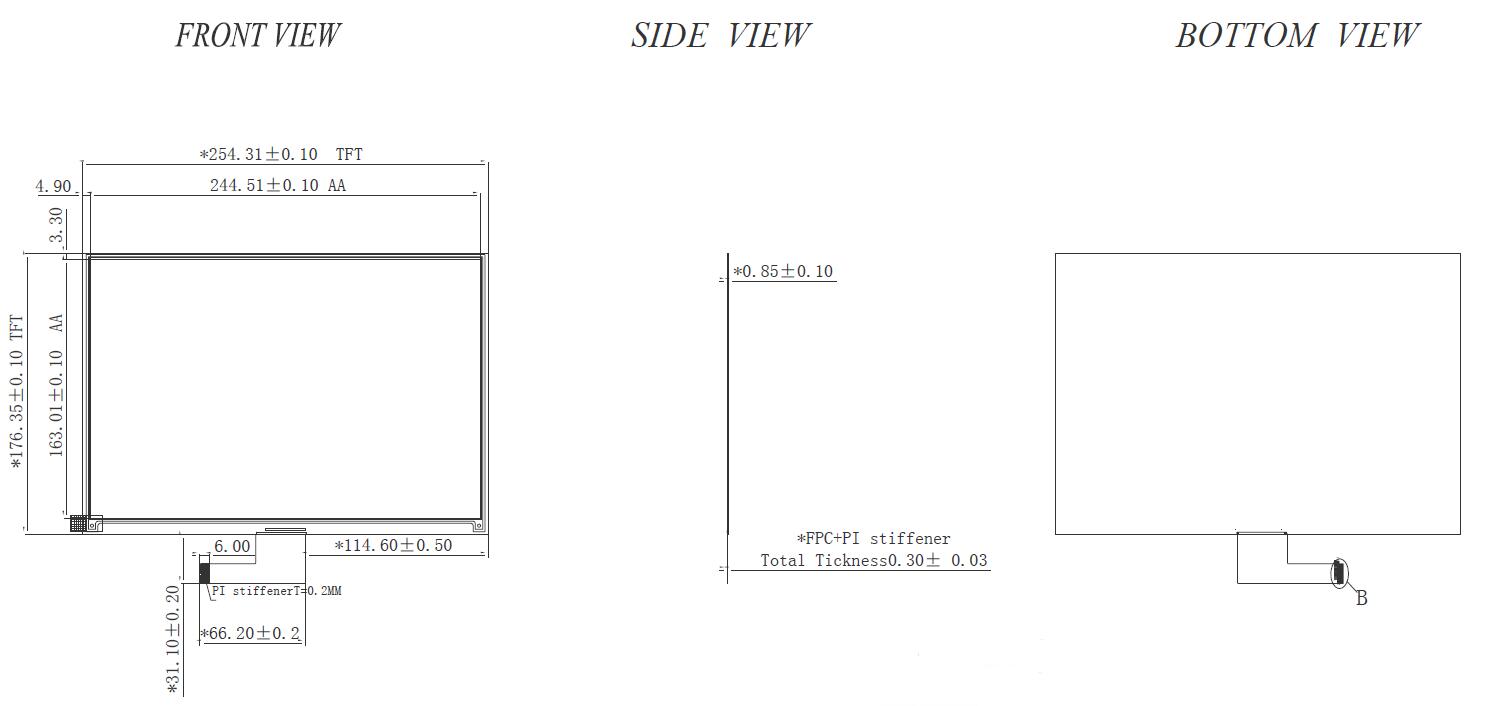

Outline Size(mm)

254.31x176.35x0.85

Active Size(mm)

244.512x163.008

Pixel Pitch(mm)

0.2547x0.2547

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~60℃

Connector

24 Pin

Interface SPI

Max Grayscale

2

Color

Black,White

Packing volume 6 KG
Power Supply(V) 3.3
Power consumption of the refresh(mW) 33
Standby power consumption Pc(mW) 0.0115
Time of refresh(s) 5
