Your present location:Home >> Electronic Tag >> 5.83 inch lighter and thinner, red electronic shelf label, GDC58V
  • Product Name: 5.83 inch lighter and thinner, red electronic shelf label, GDC58V
  • Code: 0007407-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 63


We can provide you with a complete set of ESL tag system:

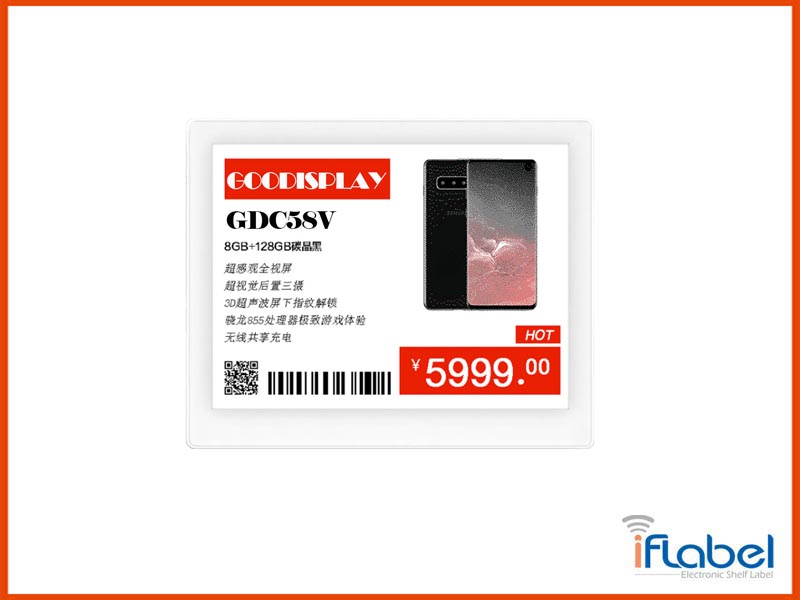

1, 5.83 inch V serie electronic label:
Lighter and thinner. It can display multiple pictures, texts and barcodes at the same time. IP67 waterproof, in addition to various general application scenarios such as store, home, medical, conference, etc., it is also suitable for wet environments such as aquatic products.


· 5.83 inch
· Replaceable battery
· Three colors, black, white and red
· Lighter and thinner
· Customization
· Better price
· NFC(Optional)



Model

GDC58V

Display Technology

EPD

Active Display Area(mm)

118.78x88.22

Resolution

648x480

DPI

138

Pixel Colors

Red Black and paper white

Viewing Angle

Nealy 180°

Usable Pages

4

Operating Frequency

2.4-2.485GHz

Standard

BLE 5.0

Encryption

128-bit AES

OTA

YES

Battery 2xCR2450
Battery Life 5 years (4 updates/day)
Battery Capacity 1200mAh
LED 1xRGB
NFC YES (Optional)
Operating Temperature 0~40℃

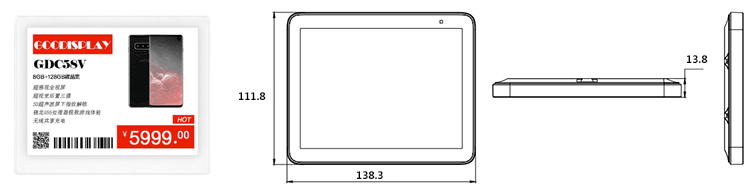

Dimensions(mm) 135.4x110x9
Packaging Unit 10 Labels/box
Certification CE, ROHS, FCC,SRRC





File Type

Description (Downloadable)

Version

Language

Update Date

Size

Brochure of Electronic Tag

1.0

English

2019-12-05

852.64MB

How to choose ESL 1.0 English 2019-12-31 786KB

We also have a more practical style of the ESL tag, click here for more information>>


2,Accessories:
①AP: Used in conjunction with an electronic price tag. It can be wall-mounted, Bluetooth + WiFi solution, covering an area of up to 25 meters, and each base station can support 5000 electronic price tags. We have three types of the AP.
②PDA: 4G full Netcom, dual-spread Wi-Fi free switching, GPS positioning, 5 million cameras, 1D 2D  scanning, smooth running of various software.
③Other accessories: More accessories that make it easy to use electronic tags in all situations.

3, Cloud system:
Full-featured and easy to operate. For details, please click to download the cloud system operation manual.
