Your present location:Home >> 2-Color EPD >> 7.5 inch Large 4 Grayscale e-paperdisplay higher resolution 800x480 SPI GDEW075T7
  • Product Name: 7.5 inch Large 4 Grayscale e-paperdisplay higher resolution 800x480 SPI GDEW075T7
  • Code: 07501-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 1343

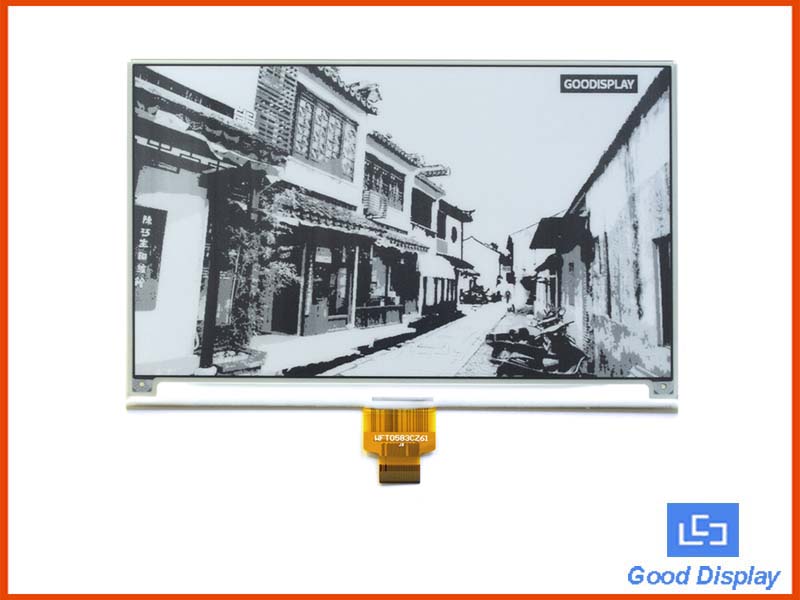

This is a 7.5 inch black-white e-ink display with 800x480 resolution, 4 Grayscale, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform. The display resolution is higher than GDEW075T8(640x384).

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW075T7 is a very good choice for applications like shelf label, smart home application, industrial instrument, electronic conference table card and other related products.








· Support 4 Grayscale
· Higher resolution(800x480) than GDEW075T8(640x384).
· The I2C signal master interface to read built-in temperature sensor.
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266
· Come with helpful development resources and manual (STM32 platform )





Part Number

GDEW075T7

Type

Dot Matrix

Resolution

800x480

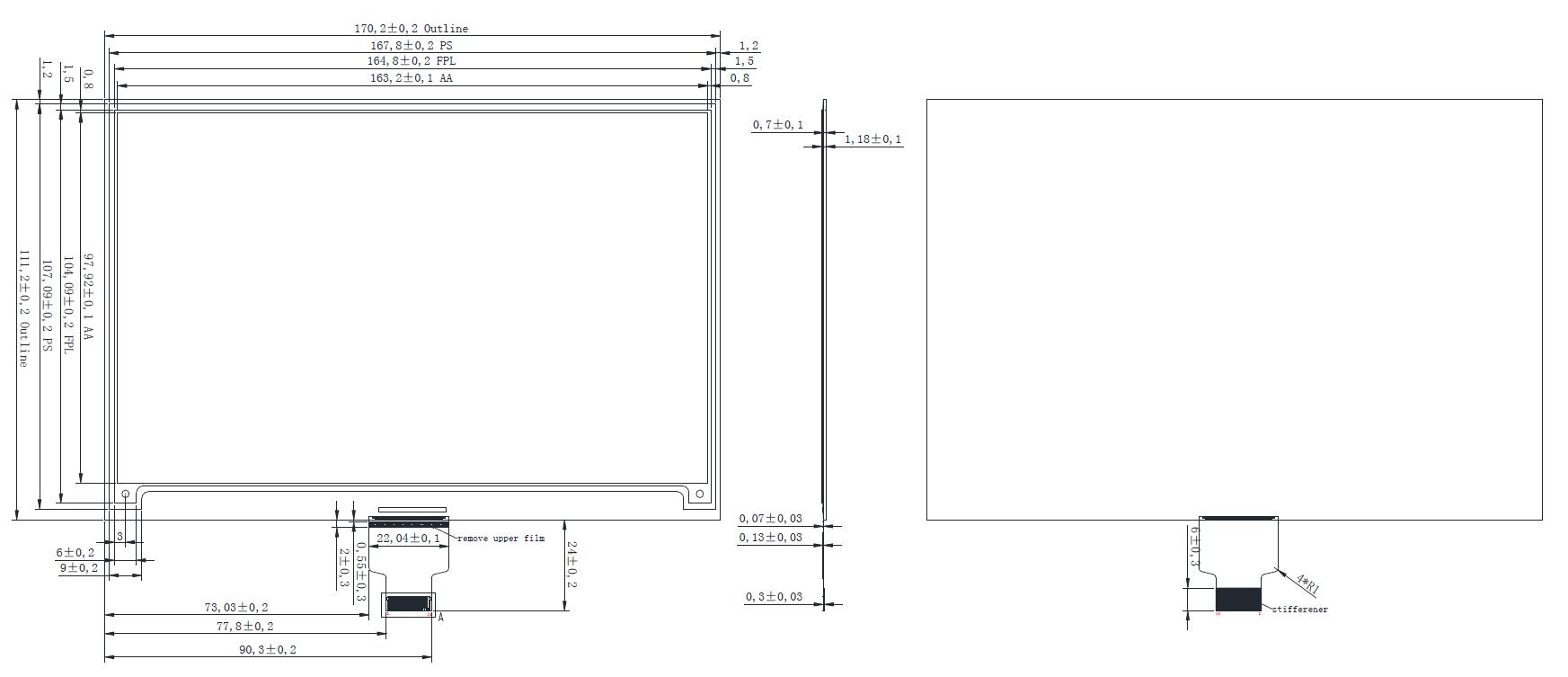

Outline Size(mm)

170.2x111.2x1.18

Active Size(mm)

163.2x97.92

Pixel Pitch(mm)

0.205x0.204

Operating Temp.

0℃~50℃

Storage Temp.

-25℃~70℃

Connector

24 Pin FPC, Pitch:0.5mm

Color Black,White
Interface SPI
Max Grayscale 4
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.71
Time of refresh(s) 4

Purchase Online

buyepaper / AliExpress









Part Number

Color

Resolution

Feature

Full refresh time
GEDW075T8 Black, White 640x384 SPI interface 4s
GDEW075Z09 Black,White,Red 640x384 Three colors,SPI interface 16s
GDEW075C21 Black,White,Yellow 640x384 Three colors,SPI interface 18s
GEDW075T7 Black, White 800x480 Higher resolution 4s
GDEW075Z08 Black,White,Red 800x480 Higher resolution,Three colors 15s
GDEW075C64 Black,White,Yellow 800x480 Higher resolution,Three colors 38s
GDEH075Z90 Black,White,Red 880x528 Highest resolution,Three colors 22s







File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW075T7 Spec.

1.1

English

2019-07-05

2.2MB

IC Driver 1.0 English 2019-07-08 1.86MB
Connector Spec. 1.0 English 2018-07-31 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 614.67KB
Picture Production and Bitmap Convert - 4 Grayscale 1.0 English 2020-02-04 549.49KB





STM32 Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                   1.0                English        2018-07-12         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW075T7 STM32 Code               1.0            English      2019-10-22      2.32MB
GDEW075T7 4 Grayscale Code                1.0            English      2020-01-16       2.42MB



Arduino Development Board

File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 DEArduino Specification

                   1.0

               English

       2018-11-28

      673.62KB

DEArduino UNO for EPD_SCH                1.0            English      2018-11-28       462.75KB

DESPI-C02-SCH

                   1.0                English        2018-11-28         701.28KB
GDEW075T7 Arduino Code                1.0             English       2020-02-14       5.66KB



Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI Specification

                   3.0

               English

       2019-09-12

      673.62KB

DESPI-C03-SCH

                   1.0                English        2019-09-27         701.28KB
DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
GDEW075T7 Rasberry Pi Code                1.0             English      2019-10-25       27.08MB
Rasberry Pi Code-4 Gray                1.0             English      2020-02-21       119.53KB

ESP8266



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

 ESP8266(C02) Specification

                   1.0

               English

       2020-04-02

      939.11KB

 ESP8266(C03)Specification                  1.0              English       2020-04-02       1.04MB

 ESP8266 for EPD-SCH

                   1.0                English        2020-01-07         72.68KB
 DESPI-C02-SCH                    1.0                English        2018-07-12         72.68KB
