Your present location:Home >> 3-Color EPD >> 12.48 inch e-ink screen large e-paper display buy color e-paper black white and red GDEW1248Z95

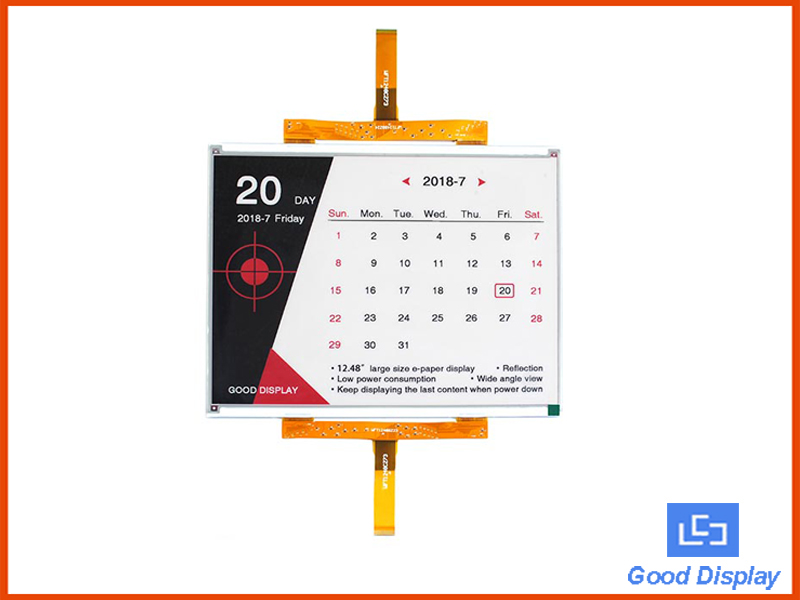

  • Product Name: 12.48 inch e-ink screen large e-paper display buy color e-paper black white and red GDEW1248Z95
  • Code: 124801
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 1750


This is an 12.48 inch red E ink E paper display panel with two FPC interfaces, 1304*984 resolution. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like:

· Display board in supermarket
· Industrial application
· And other related products.
Note: All of 3-color epaper doesn't support partial refesh.










· Two FPC interface, both have 30 pins
· 1304x984 resolution
· Three colors, black, white and red
· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Raspberry Pi









Part Number

GDEW1248Z95

Type

Dot Matrix

Resolution

1304*984

Outline Size(mm)

261.5*211*1.18

Active Size(mm)

252.976*190.896

Pixel Pitch(mm)

0.194*0.194

Operating Temp.

0~40

Storage Temp.

-25~60

Connector

Two FPC ports

Max Grayscale

2

Color

Black,White,Red

Packing volume 6 KG
Current of the refresh(mA) 25
Power consumption of the refresh(mW) 82.5
Standby power consumption Pc(mW) 0.71
Time of refresh(s) 20
Purchase Online

buyepaper /AliExpress









Part Number

Color

Resolution

Feature

Full refresh time
GDEW1248T3 Black, White 1304x984 Large size,4 Grayscale 6s
GDEW1248Z95 Black,White,Red 1304x984 Three colors,Large size 20s
GDEW1248C63 Black,White,Yellow 1304x984 Three colors,Large size 30s





  Datasheet-E Paper Display,Controller IC,Connector,Source Code

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDEW1248Z95 Specifications

1.0

English

2018-08-23

1.71MB

IL0326 Specification 1.0 English 2019-03-08 1.84MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 866.77KB

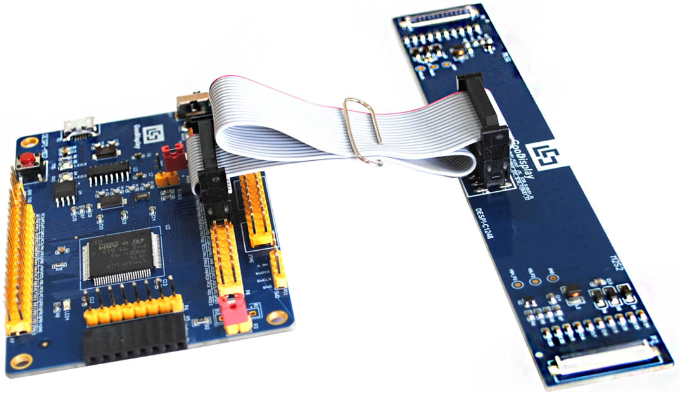

STM32 Development Board




File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI-1248 Specification

             1.0

            English

       2018-10-09

       1.07MB

DESPI-C1248 Specification                  1.0              English       2020-04-02        805.82KB
DESPI-M02-SCH              1.0              English        2018-10-09         581.76KB

DESPI-C1248-SCH

             1.0             English        2018-10-09         436.78KB
Sample Code 1.0 English 2019-10-22 2.63MB

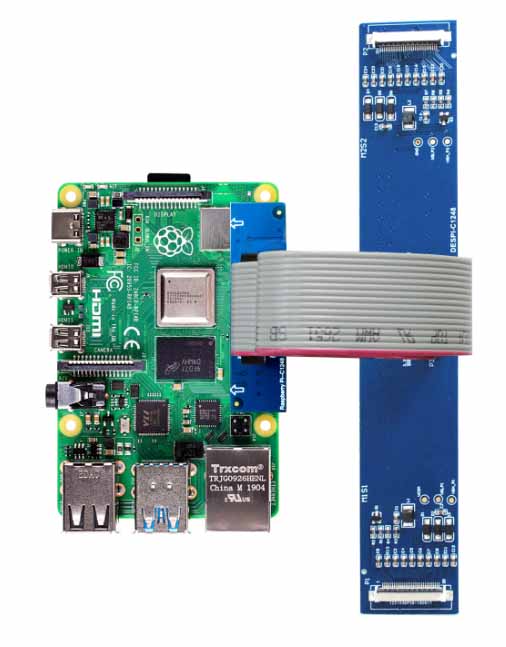

Rasberry Pi Development Board



File Type

Description (Downloadable)

                 Version

               Language

       Update Date

       Size

DESPI-C1248 Specification                  1.0              English       2020-04-02        805.82KB

DESPI-C1248-SCH

                   1.0                English        2018-10-09         436.78KB
GDEW1249Z95 Rasberry Code                1.0             English      2019-10-25       27.08MB
