Your present location:Home >> T/P Front-light >> 2.7 inch e-paper display with touch screen 4 grayscale GDEW027W3-T
  • Product Name: 2.7 inch e-paper display with touch screen 4 grayscale GDEW027W3-T
  • Code: 02703
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 1695

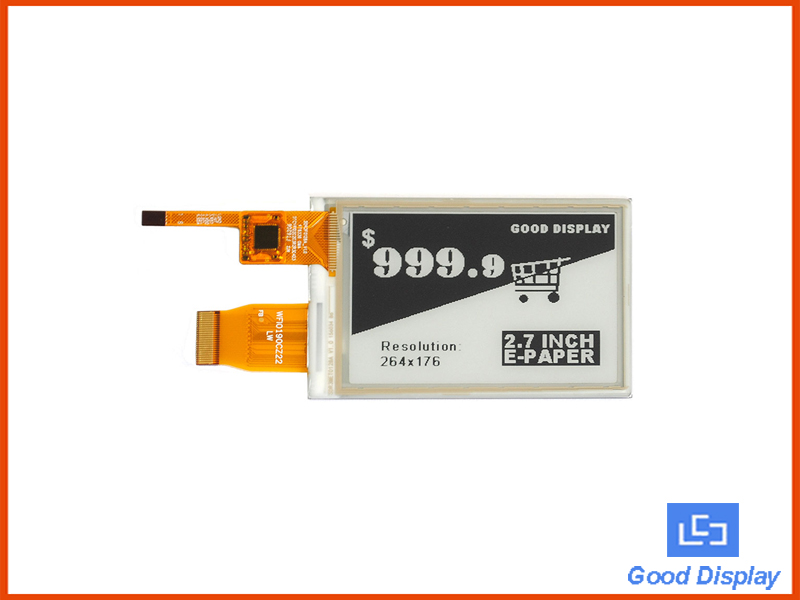

This is a 2.7 inch E ink E paper display with capacitive touch screen, 264*176 resolution, 4 grayscale24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW027W3-T is a very good choice for applications like:

· Shelf label
· Smart tags
· Smart home application
· Industrial instrument
· IED
· Other related products.




· Partial refresh
· With touch panel
· 4 grayscale
· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW027W3-T

Type

Dot Matrix

Resolution

264*176 (DPI:117)

Outline Size(mm)

70.42*45.8*1.3

Active Size(mm)

57.288*38.192

Pixel Pitch(mm)

0.217*0.217

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black, White

Max Grayscale

4

Time of refresh(s) 3
Time of partial refresh(s) 0.3
Power consumption of the e-paper only(mW) 26.4
Power consumption of the touch screen(mW) 14.3
