Your present location:Home >> OLED Display >> 0.86"96x32 Pixel OLED Display Manufacturer
  • Product Name: 0.86"96x32 Pixel OLED Display Manufacturer
  • Code: 90086
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 315

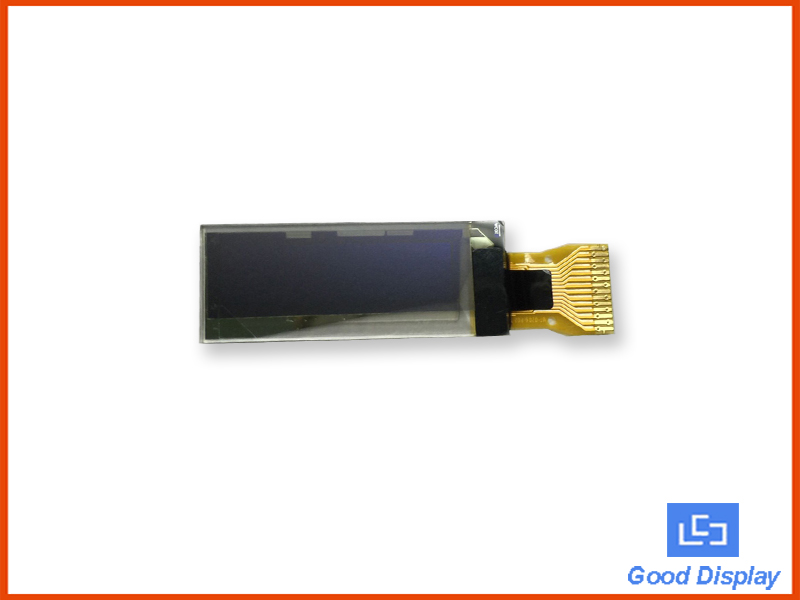

GDO086W is the graphic OLED display module made of 96x32 individual blue OLED pixels,diagonal is only 0.86 inch.The controller ic SSD1316, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.

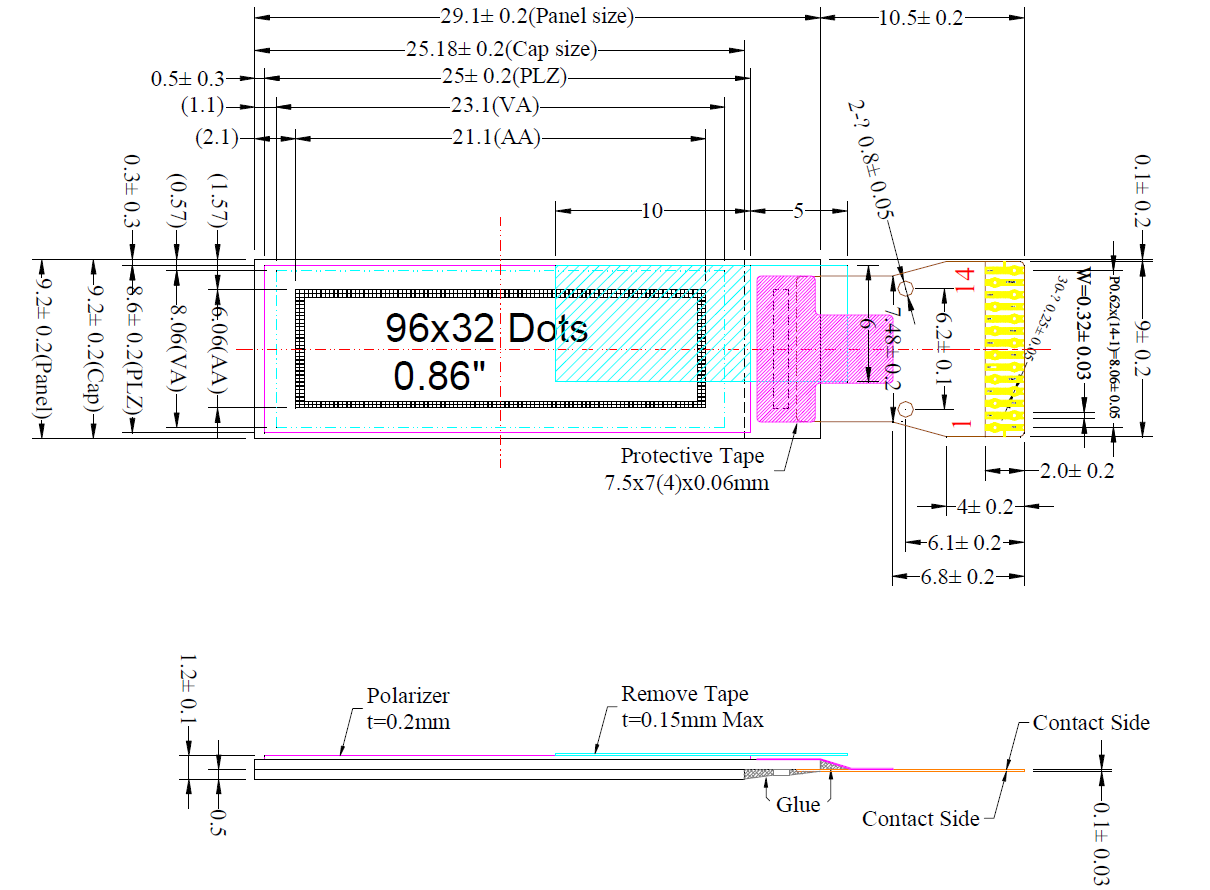

Outline Dimension

29.10*9.20*1.20

Visual Area

23.1*8.06

Active Area

21.1*6.06

Display Format

96x32 Dots

Interface

I2C

Display Type

OLED

Brightness

120cd/m2

Operating Temperature

-40~80

Storage Temperature

-40~80

Power Supply

2.8V

IC or Equivalent

SSD1316















File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
1.0
English
2017-06-19
776.36KB
