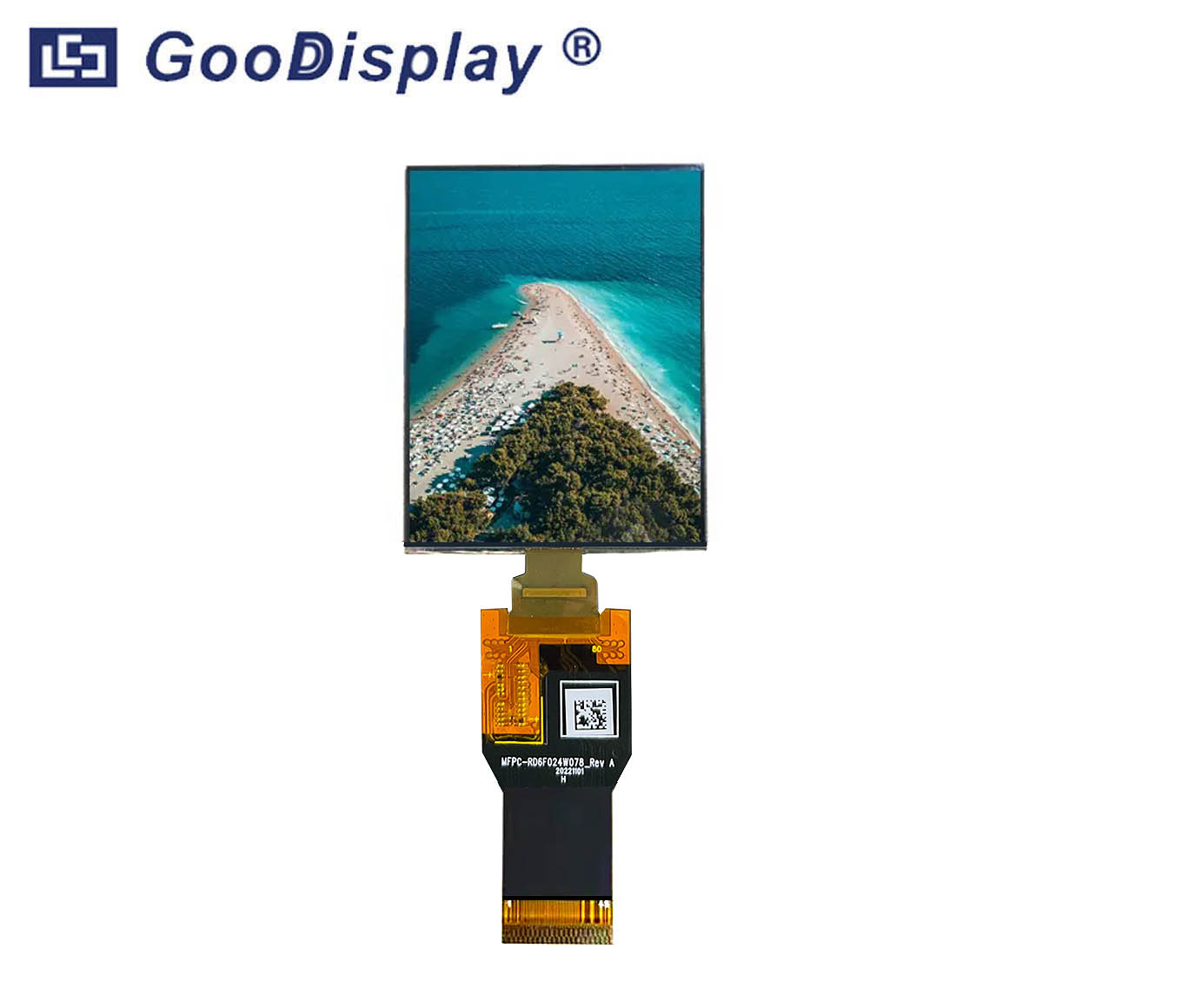

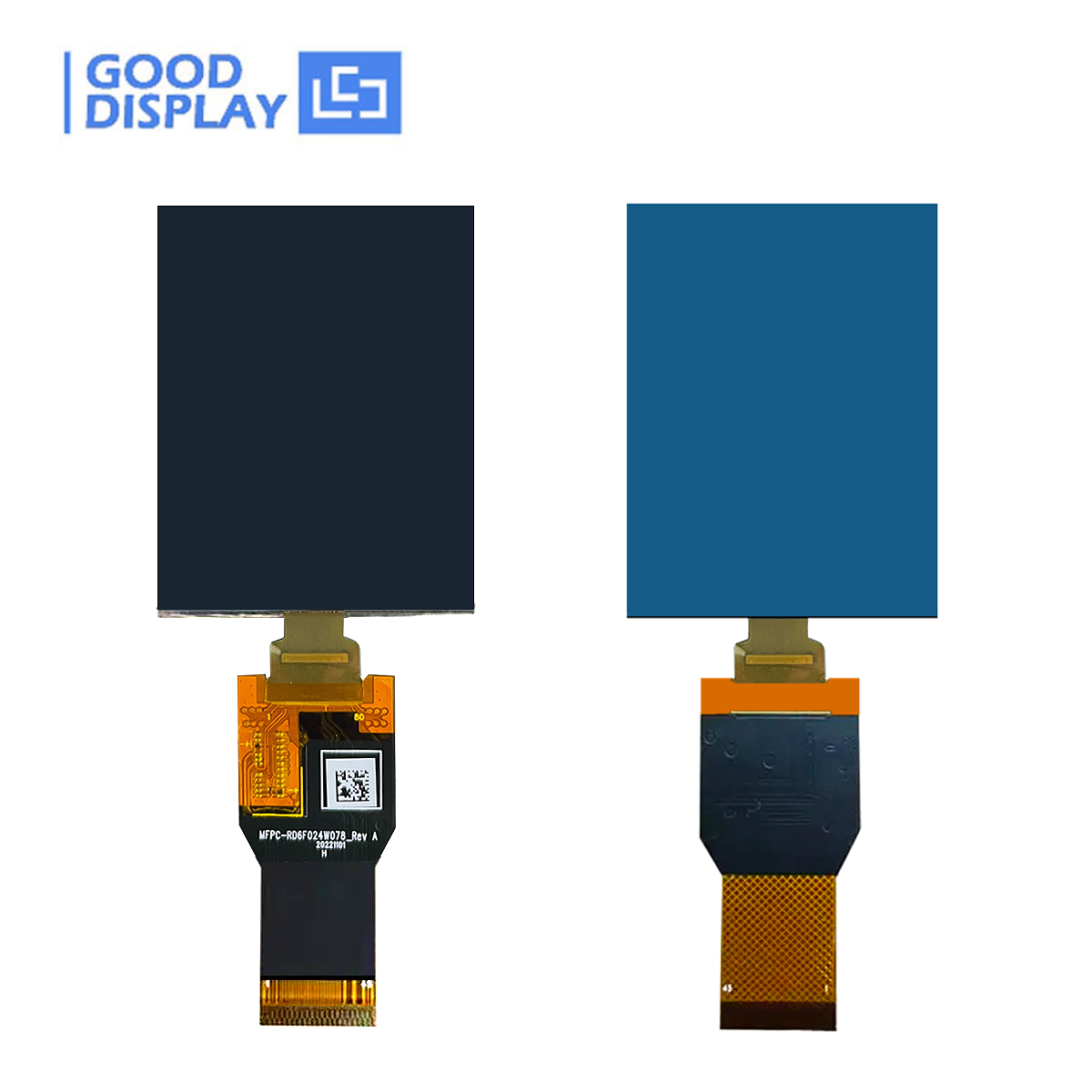

GDOJ024C45: 2.4-Inch AMOLED Display
Module for Smart Home Terminals
The GDOJ024C45 is a high-quality 2.4-inch color AMOLED display module.
Featuring an active-matrix design with an amorphous silicon (a-Si) TFT
switching layer, this module delivers sharp visuals. It integrates a
complete display solution including the TFT panel, timing controller,
voltage reference (VCOM), column driver, and row driver circuitry.
With a resolution of 450 x 600 pixels across
its 2.4-inch diagonal active area, this AMOLED module provides excellent
image quality. It is specifically engineered for use as a display terminal
in smart home devices and applications.
|
PART NUMBER |
GDOJ024C45 |
|
DIAGONAL SIZE |
2.4" |
|
DISPLAY MODE |
AMOLED |
|
DISPLAY COLOR |
16.7M |
|
DRIVER IC(Type) |
RM690B0 |
|
NUMBER OF PIXELS |
450RGBx600 |
|
INTERFACE |
SPI/MCU/MIPI |
|

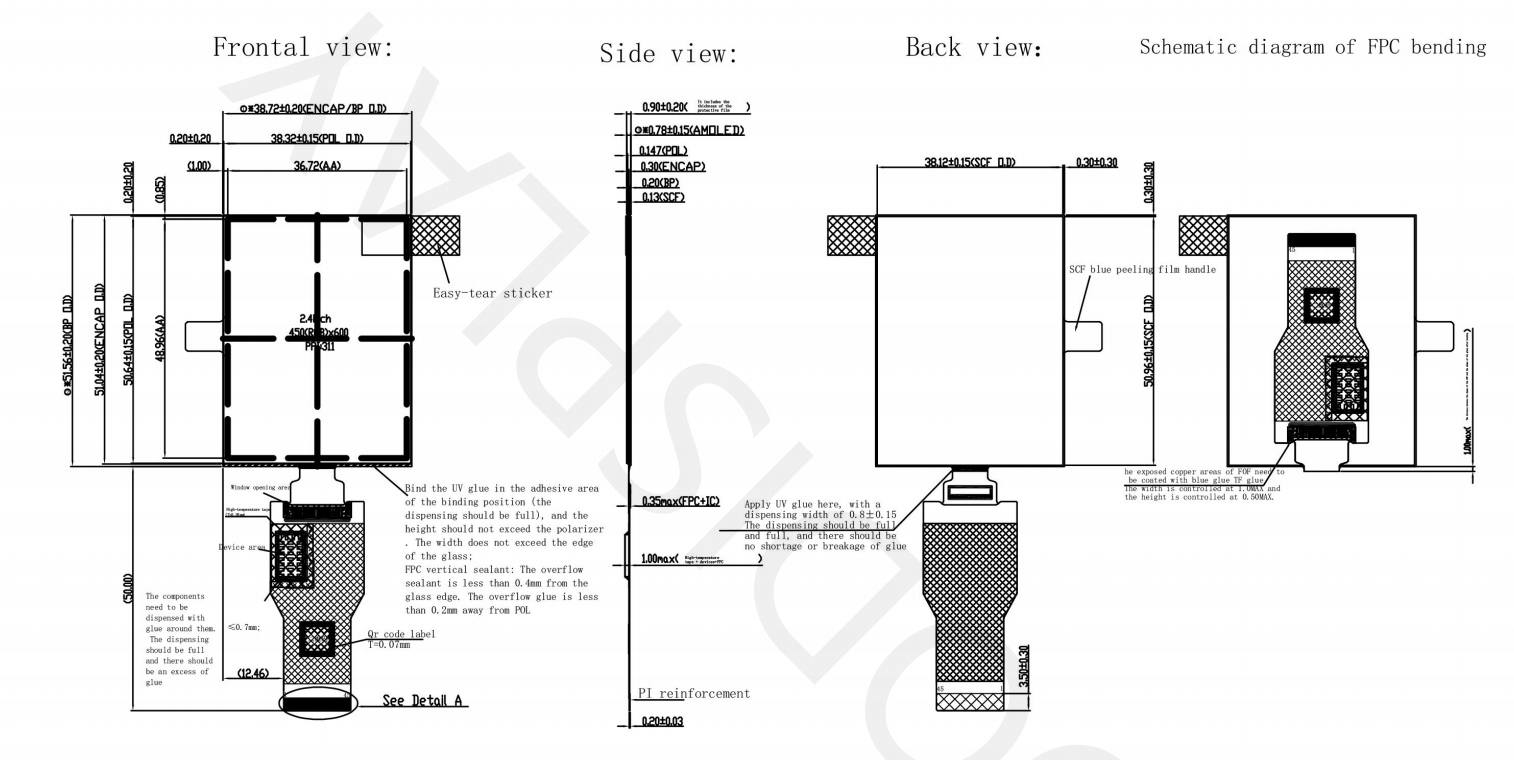

ACTIVE AREA(mm) |
36.72x48.96 |
|
PIXEL PITCH(μm) |
81.86 |
|
PIXEL ASPECT RATIO |
3:4 |
|
BRIGHTNESS(Typ) |
800 cd/m2 |
|
OPERATING TEMP. |
-20℃~80℃ |
|
STORAGE TEMP. |
-40℃~80℃ |
|
CONTRAST |
100000:1 |
|
FRAME RATE(Hz) |
60 |
|
|
