Your present location:Home >> Monochrome LCD >> 8-digit LCD Panel EDC103
  • Product Name: 8-digit LCD Panel EDC103
  • Code: 1028
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 656





(BUY NOW!)

Manufacturer GOODDISPLAY
Part Number EDC103
Display content

8-digits

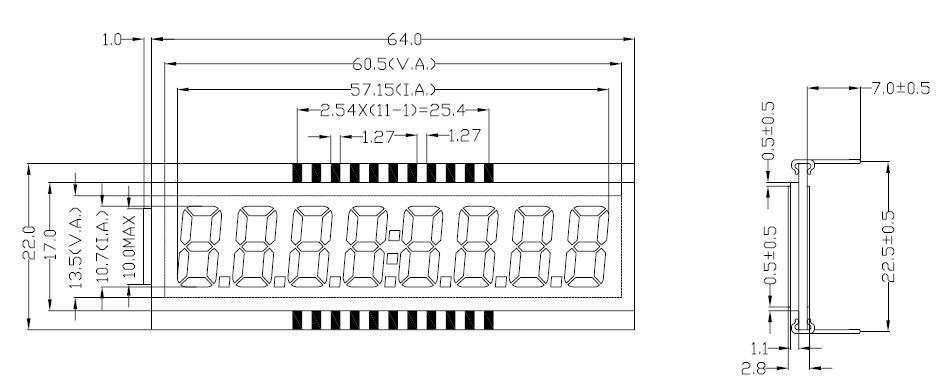

Outline Dimension 64x22.0x2.8mm
Active Area 60.5x13.5mm
Viewing Direction 6:00  o'clock
Backlight Color White ,(Optional)
Operating Voltage 3.3 V

 Operating Temp

Extended temp LCD: -20℃—70℃

 Storage Tempe

Extended temp LCD: -30℃—80℃

Drive method 1/4Duty  1/3Bias
Display Type TN Positive
Polarizer Mode Transflective/
Connector Pin (16 Pins) Pin Length is optional
Net Weight 15g
