Your present location:Home >> Monochrome LCD >> 4-Digit LCD Panel, GDC8310
  • Product Name: 4-Digit LCD Panel, GDC8310
  • Code: 036
  • Quantity in stock: Yes
  • Retail price: 1.58USD
  • Unit of measurement: pcs
  • Net weight: 5g
  • Views : 954


Manufacturer GOOD DISPLAY
Part Number GDC8310
Display content

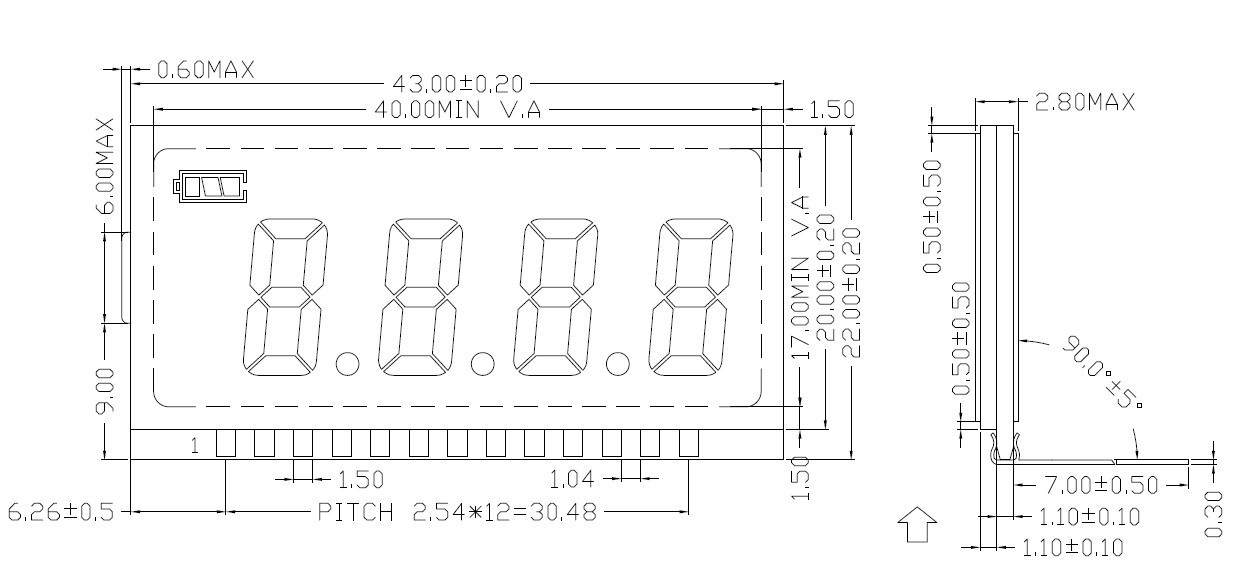

Outline Dimension 43.0x22.0x2.8mm
Active Area 40.0x17.0mm
Viewing Direction 6:00 o'clock
Backlight Color White ,(Optional)
Operating Voltage 3.3V

 Operating Temp

Normal temp LCD:- 0℃—60℃

 Storage Tempe

Extended temp LCD: -10℃—70℃

Drive method 1/4Duty  1/3Bias
Display Type TN Positive
Polarizer Mode Reflective/ Transflective
Connector Pin (15 Pins)  Pin Length is 6.35mm
Net Weight 5g


1. This product comes with a one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2. All the products will be 100% tested before delivery.
3. Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer's part.
4. We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5. The returns should be returned with our original packages.
6. Defective products must be returned within 30 days from the RMA issuing date. Otherwise, no replacement will be made.
7. Customers must contact us first for the return address.
8. No refund is accepted after 30 days of receipt.
9. The returns made for non-defective merchandise will be charged a up to 30% restocking fee.
10. In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11. The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days.




File Type
Documents Name (Downloadable)
Update Date
File Size




File Type

Description (Click to see more)


Update Date
TFT LCD Display knowledge -- FAQ English 2011-05-11
Warranty English 2016-10-25
Precautions for LCD modules English 2019-07-10
RoHS English 2018-12-27
Banking information English 2017-02-08






If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
