Your present location:Home >> TFT LCD Display >> TFT LCD Display Module 10.1inch Support from 640x480 to 1920*1200 and HDMI input
  • Product Name: TFT LCD Display Module 10.1inch Support from 640x480 to 1920*1200 and HDMI input
  • Code: 81040
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 206

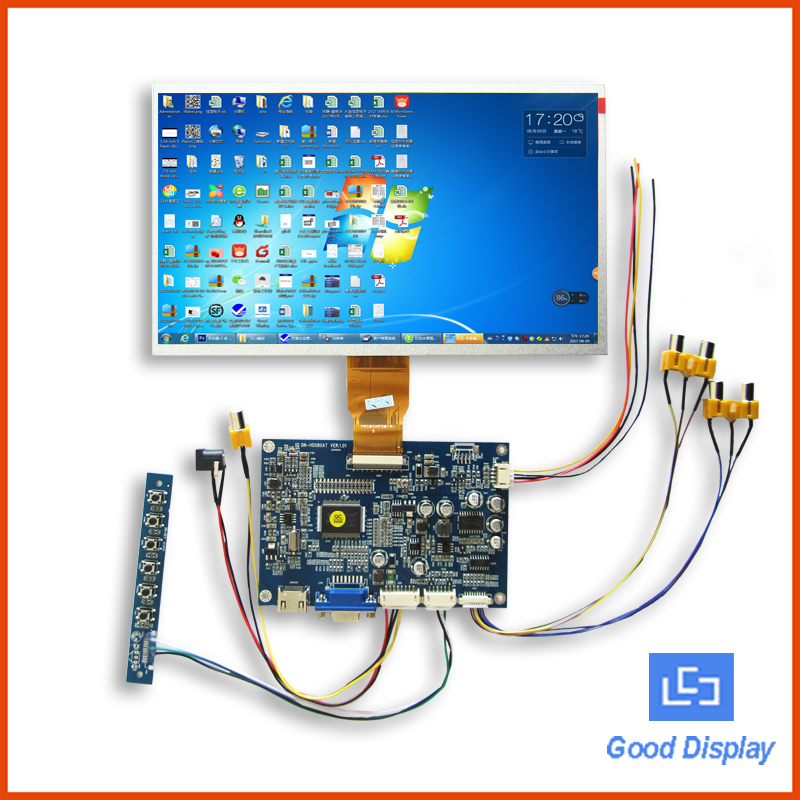

GDN -HD080AT-GMD101HL01VER:1.00 color TFT LCD module is composed by HD080AT VER:1.01 color digital display driver board and GMD101HL01 V.1.0 LCD screen .GDN-HD080AT VER: 1.01 can drive 640 * 480 ~ 1920 * 1200 single /channel LVDS interface 8/6-bit screen and TTL / TCON interface screen. Supports HDMI (Version 1.1, with HDCP 1.1) and PC-RGB signals and CVBS signal input. the OSD menu offersadjustment of brightness, contrast and color etc, and full functions can be controlled by the RemoteControl device included. The power control IC is designed for better reliability. It is mainly used for videophones and instrumentsInstrumentation, medical equipment, security monitoring, car display, POS machines, etc., can also be used for other display electronic equipment.





Part Number GDN-HD080AT-GMD101HL01
Size 10.1
Resolution 1024*600
Brightness 320cd/m2
Working Voltage 12V
Viewing Angle(U/D/L/R) 60/70/70/70
Contrast Ratio -
Signal input HDMI,PC-RGB,CVBS
Outside dimension of lcd panel 235*143*3.8mm
Active Area of lcd panel 222.72*125.28
Structural dimension of PCBA 128.0*85.0*28.0
Backlight LED
Operating temperature 0~60℃
Storage temperature -20~70℃













1. This product comes with a one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2. All the products will be 100% tested before delivery.
3. Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer's part.
4. We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5. The returns should be returned with our original packages.
6. Defective products must be returned within 30 days from the RMA issuing date. Otherwise, no replacement will be made.
7. Customers must contact us first for the return address.
8. No refund is accepted after 30 days of receipt.
9. The returns made for non-defective merchandise will be charged a up to 30% restocking fee.
10. In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11. The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days.






If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry
