Your present location:Home >> TFT LCD Display >> 7.0'' Open frame lcd monitor with vga,video signal input GD102M03-GTI070TN92
  • Product Name: 7.0'' Open frame lcd monitor with vga,video signal input GD102M03-GTI070TN92
  • Code: 80704
  • Quantity in stock: Yes
  • Retail price: --
  • Unit of measurement: pcs
  • Net weight:
  • Views : 1159



(Buy it now!!!)






Good   Display

Part   Number


Display   Format

800x480   Dots

Touch   Panel Optional

4-wire Resistive Driver USB/ RS232 (Option)

Outline   Dimension


Active   Area


Diagonal   Size

7.0 “

Display   Ratio



Video(CVBS), D-Sub 15 pin female for VGA,

Display   Type

TFT-LCD   Color

Response   Time(Typ.)


Contrast   Ratio(Typ.)


Viewing   Angle Range



250 cd/m2

Operation   Voltage

DC12.0(Typ.) (Min.9.0, Max.15.0)

Input   Current


Power   Consumption

2.64   W(TYP)



LED   Life time


Operating   Temperature


Storage   Temperature

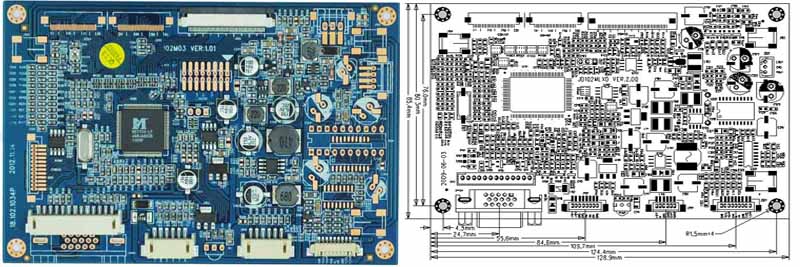

PCBA   (A/D board)


Please see following important safety instructions
1. The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD, audio amplifier, etc. Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.



1. This product comes with a one-year warranty. Buyers must contact us first for the exchange within the warranty period.
2. All the products will be 100% tested before delivery.
3. Our warranty does not extend to any products that are physically damaged or are not under normal operating conditions as a result of misuse or improper installation on the buyer's part.
4. We will provide a Returned Merchandise Authorization (RMA) Number for each item that needs returning. We do not accept the returns without a RMA number.
5. The returns should be returned with our original packages.
6. Defective products must be returned within 30 days from the RMA issuing date. Otherwise, no replacement will be made.
7. Customers must contact us first for the return address.
8. No refund is accepted after 30 days of receipt.
9. The returns made for non-defective merchandise will be charged a up to 30% restocking fee.
10. In all cases, buyers pay for the shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements.
11. The refund will be made upon receipt of the return item. After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days.




File Type
Documents Name (Downloadable)
Update Date
File Size
