Your present location:Home >> Monochrome LCD >> 8x1 character LCD YM0801B
  • Product Name: 8x1 character LCD YM0801B
  • Code: 020
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 807



Manufacturer GOOD DISPLAY
Part Number YM0801B

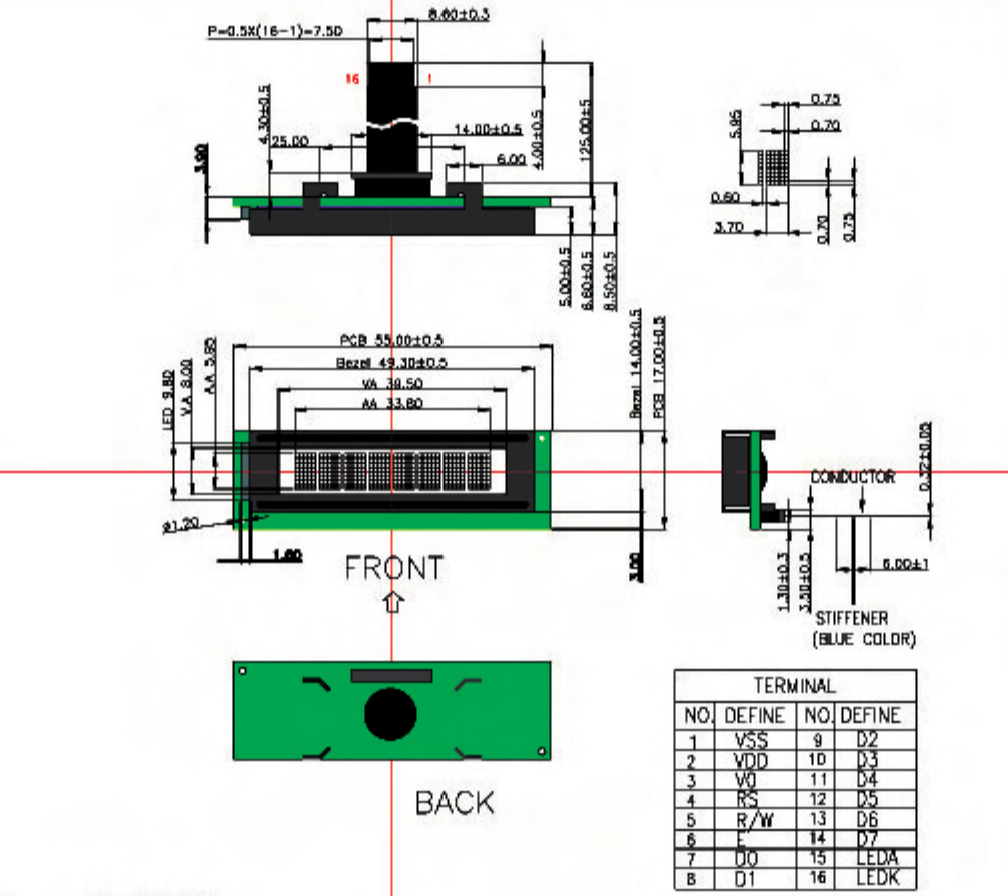

Outline Dimension 55.0x17.0x8.5 mm
View Angle 6 o’clock
View Area(W×H) 39.5x8.0 mm
Dot Size(W×H) 0.70x0.70 mm

 Operating Temp

-20~70°C

 Storage Tempe

-30~80°C

Dot Pitch(W×H) 0.75x0.75 mm
Char Size(W×H) 3.70x5.95 mm
Controller SPLC780D
Operating voltage 5V
Package COB
LCD Type FSTN
Backlight LED
Backlight Color Blue
Net Weight 18g













File Type

Description (Downloadable)

Version

Language

Update Date

Size

YM0801B Specification

1.0

English

2019-05-27

1.68MB









File Type

Description (Click to see more)

Language

Update Date
TFT LCD Display knowledge -- FAQ English 2011-05-11
Warranty English 2016-10-25
Precautions for LCD modules English 2019-07-10
RoHS English 2018-12-27
Banking information English 2017-02-08











If you are interested in our products and would like to know more information, please don't hesitate to contact us and click here→Inquiry

download attachments : YM0801B specification 【查看】
