Your present location:Home >> T/P Front-light >> New 1.54 inch Three colors red e-paper display with frontlight GDEWL0154Z17FL
  • Product Name: New 1.54 inch Three colors red e-paper display with frontlight GDEWL0154Z17FL
  • Code: 015402-1
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 181

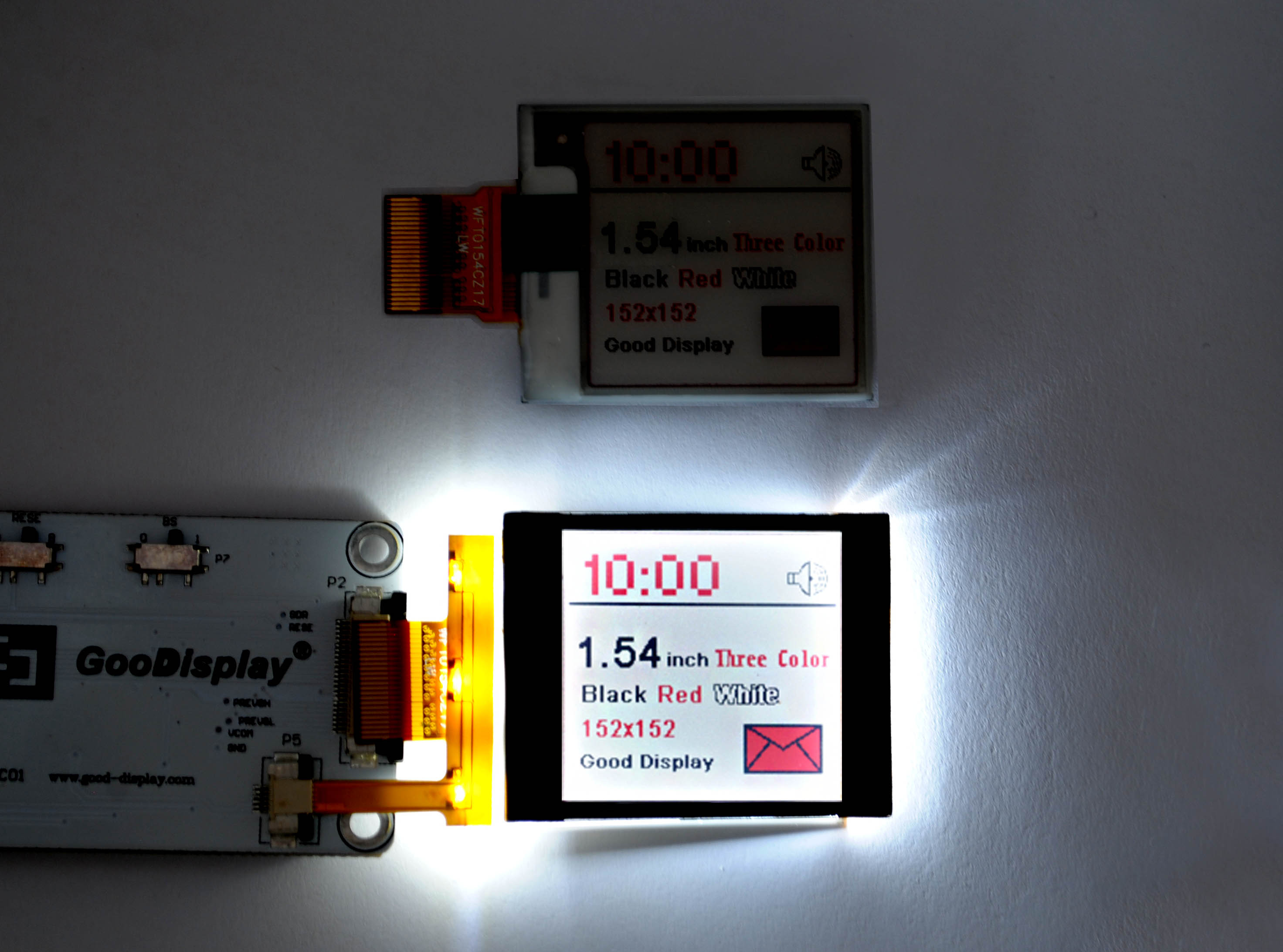

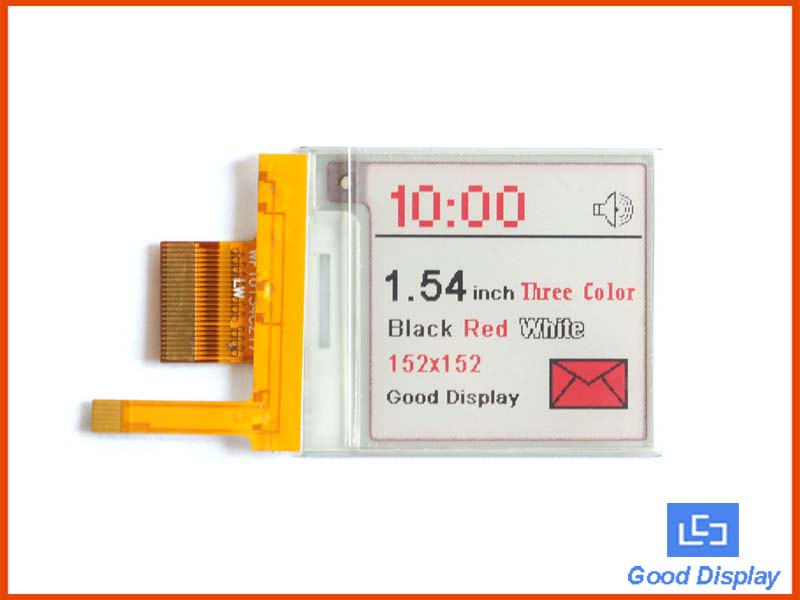

This is a 1.54 inch e-paper display with frontlight, 152x152 resolution,  24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black, white and red three-color.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDEWL0154Z17FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.
Note: All of 3-color epaper doesn't support partial refesh.










Three colors, black, white and red
152x152 resolution
With front light
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEWL0154Z17FL

Type

Dot Matrix

Resolution

152x152

Outline Size(mm)

31.8x37.32x1.76

Active Size(mm)

27.51*27.51

Pixel Pitch(mm)

0.181*0.181

Operating Temp.

0~40℃

Storage Temp.

-25~60℃

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

2

Color

Black,White,Red

Drive voltage of LED 2.8V-3.2V
Time of refresh(s) 16
Power consumption of the e-paper only(mW) 26.4
Power consumption of the front-light(mW) 43.5
