Your present location:Home >> OLED Display >> 2.4 inch green 128x64 dots OLED display GDOE0240G

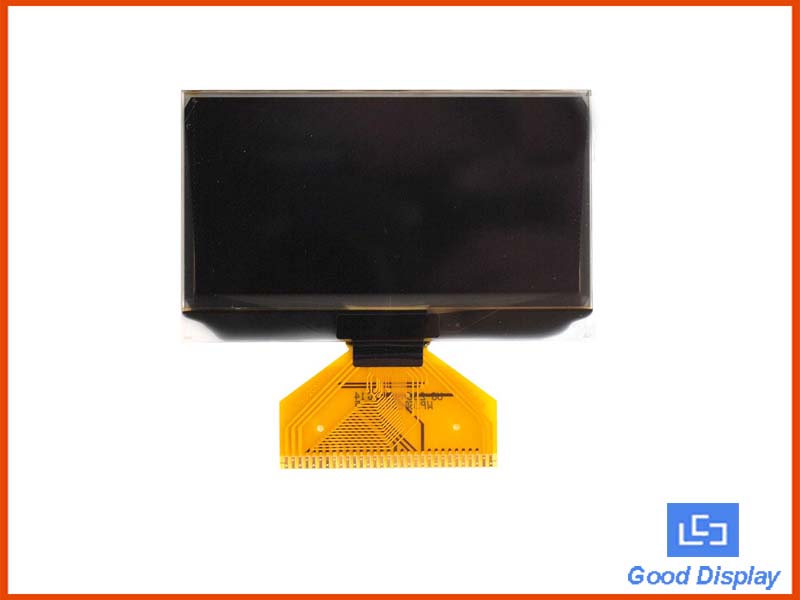

  • Product Name: 2.4 inch green 128x64 dots OLED display GDOE0240G
  • Code: 90999
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 187

GDOE0240G is the 128x64 green pixels OLED display, diagonal is only 2.4 inch.The controller ic is SSD1305, communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.







· 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI
· FPC-Soldering
· Wide temperature range
· Come with helpful manual







Part Number

GDOE0240G

Diagonal Size 2.4 inch

Display Mode

Passive Matrix

Display Color

Green

Drive Duty

1/64 Duty

Number of Pixels

128x64

Interface 6800 8-bit Parallel , 8080 8-bit Parallel , I2C, 4-Wire Serial SPI

Driver IC

SSD1305

Connection

FPC-Soldering

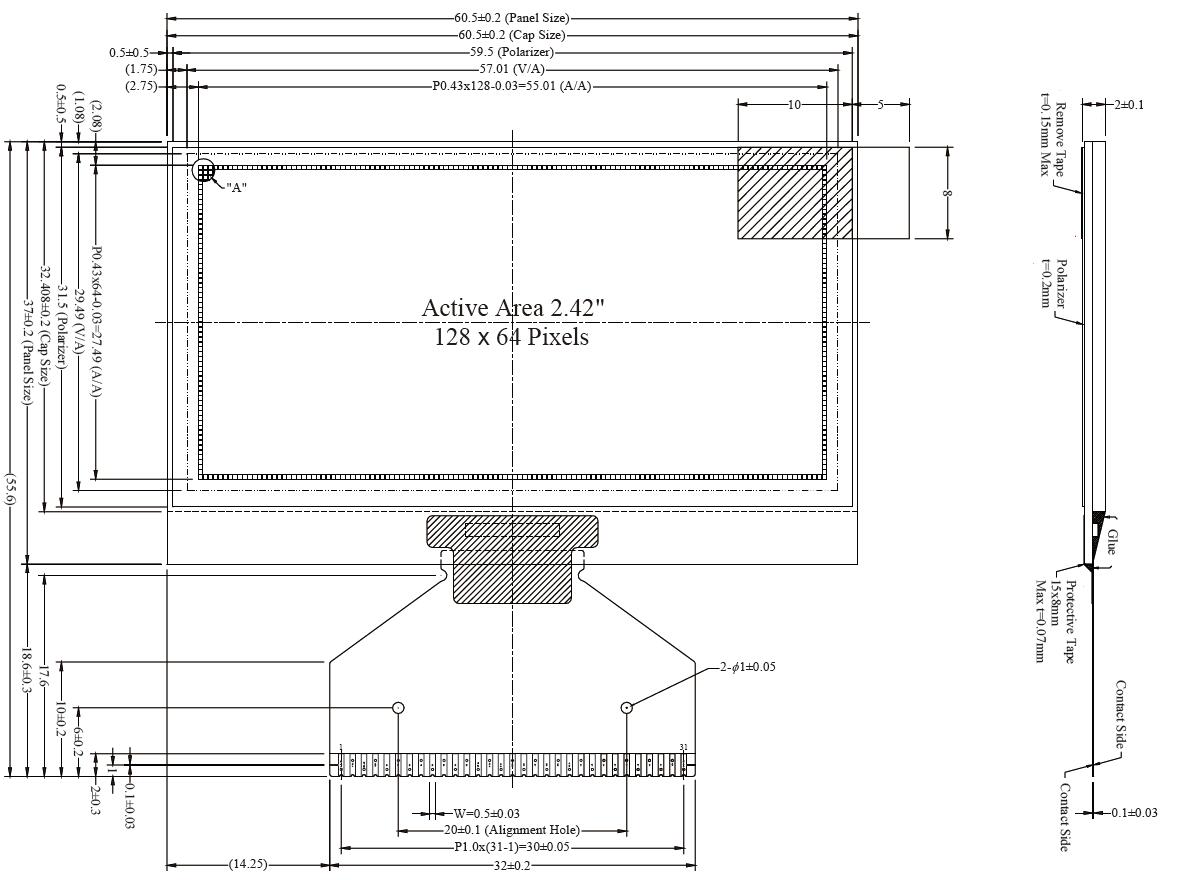

Outlin Dimension

60.50x37.00x2.00

Active Area

55.01x27.49

Pixel Pitch

0.43x0.43

Pixel Size

0.40x0.40

Brightness(Typ)

120 cd/m²(Typ)

View Angle

>160°

Operating Temperature

-40℃~70℃

Storage Temperature

-40℃~85℃

Purchase Online buyepaper





Datasheet-E Paper Display,Controller IC,Connector,Source Code



File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDOE0240G Spec.

1.0

English

2019-06-05

1.04MB

SSD1305 1.0 English 2019-06-05 1.88MB
